1. Lower energy consumption and less residue;

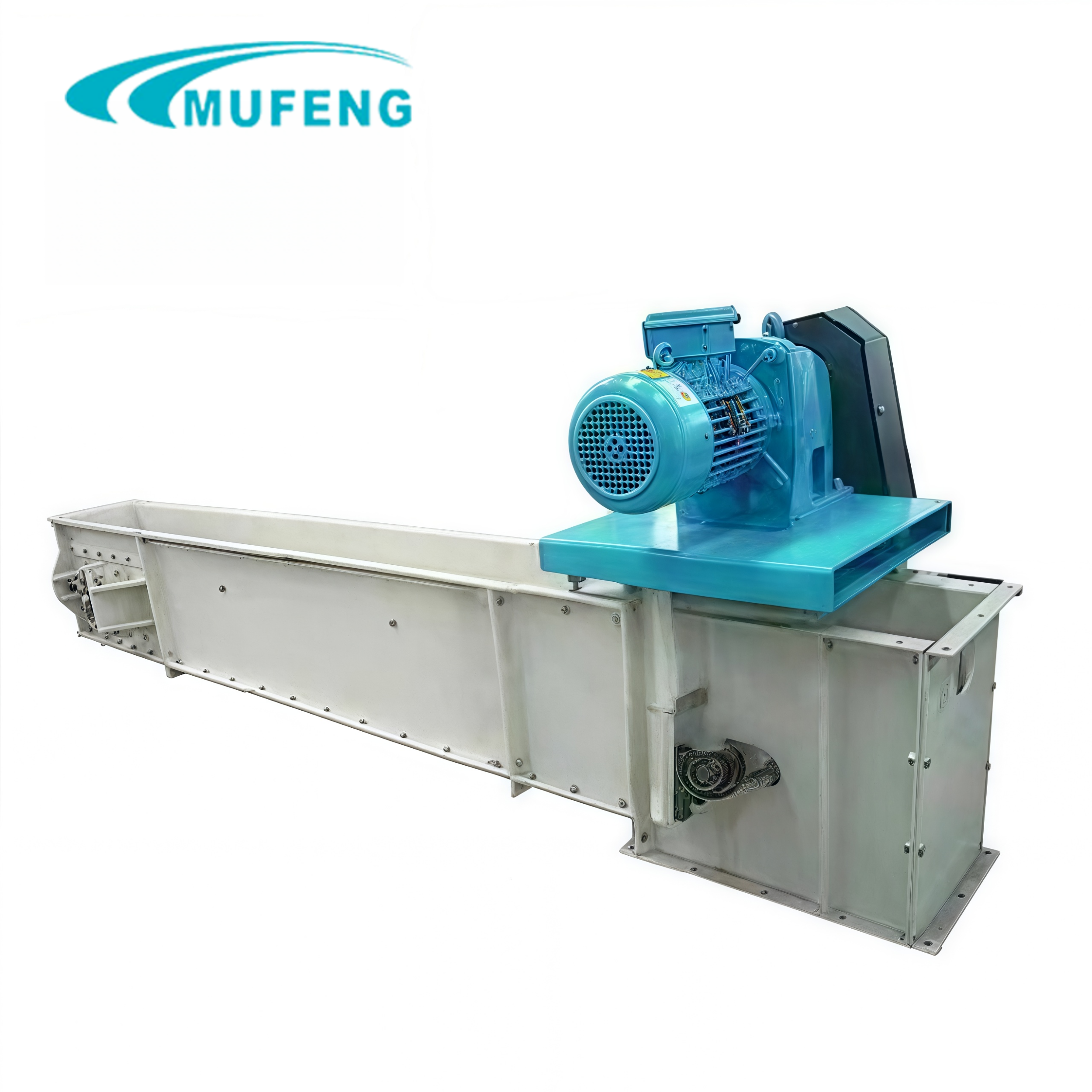

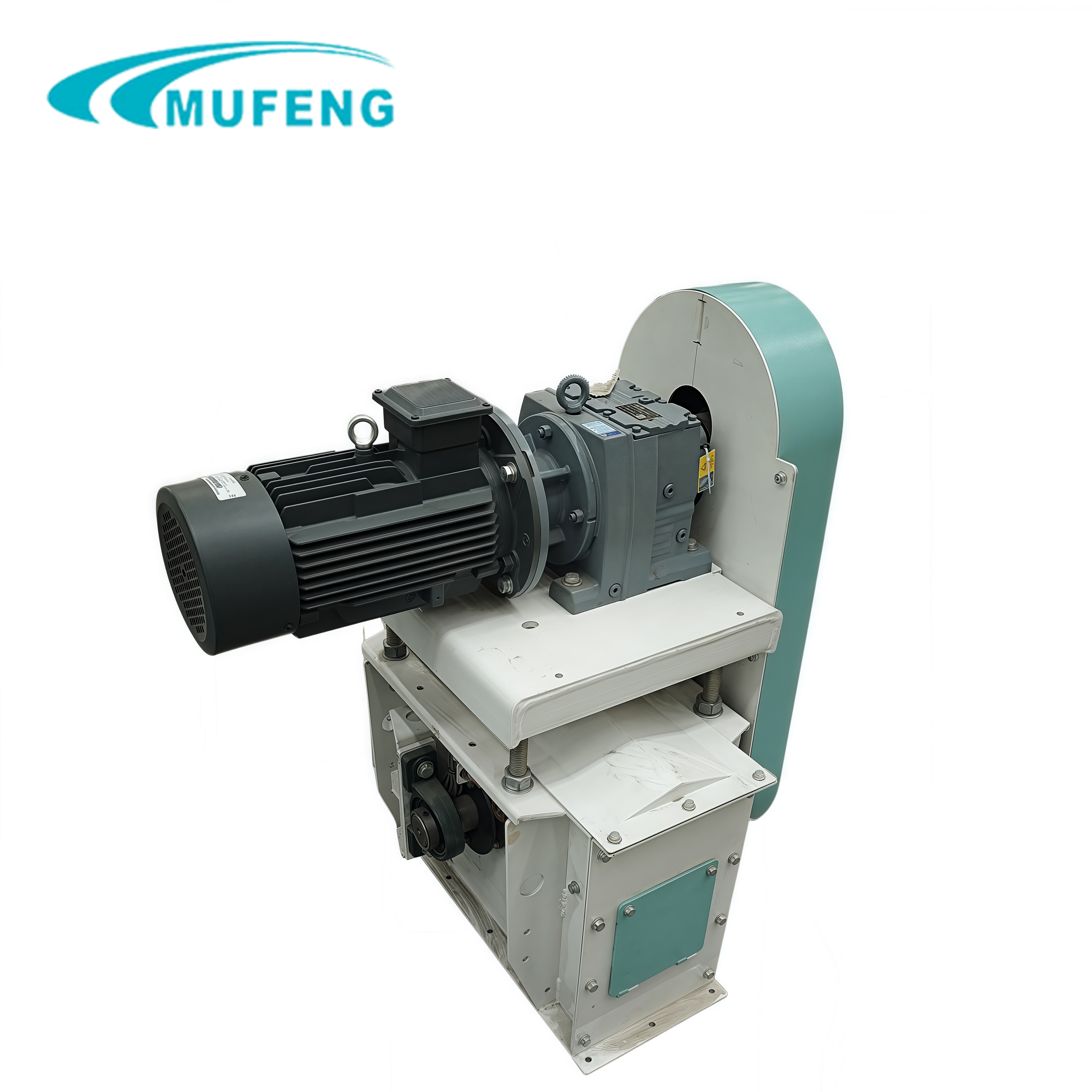

2. The head and power transmission part are designed as an integrated unit, which is convenient for transportation and on-site installation;

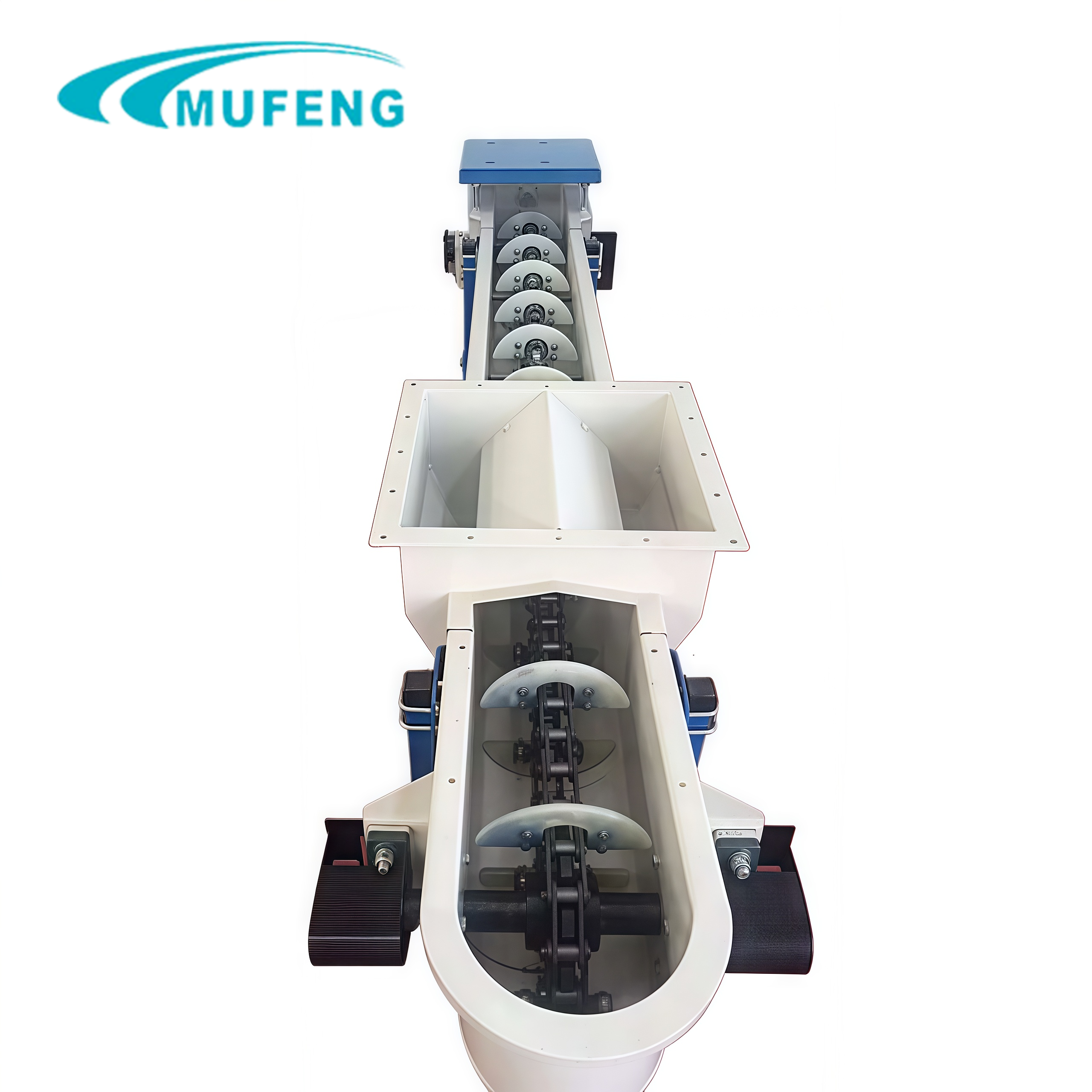

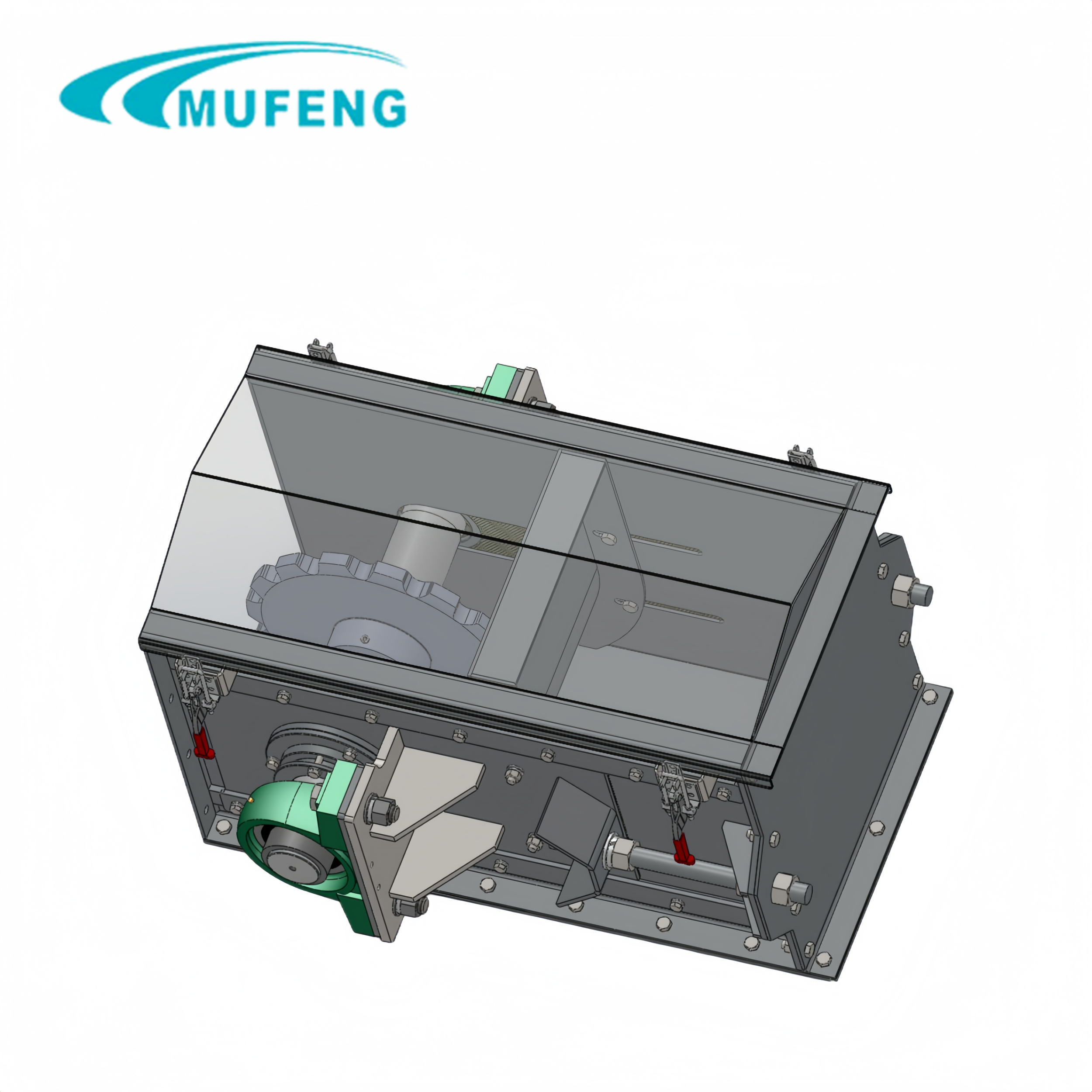

3. The tail of the aircraft is equipped with a follow-up arc-shaped baffle plate, which has lower residue, more compact structure, better sealing, and easier maintenance;

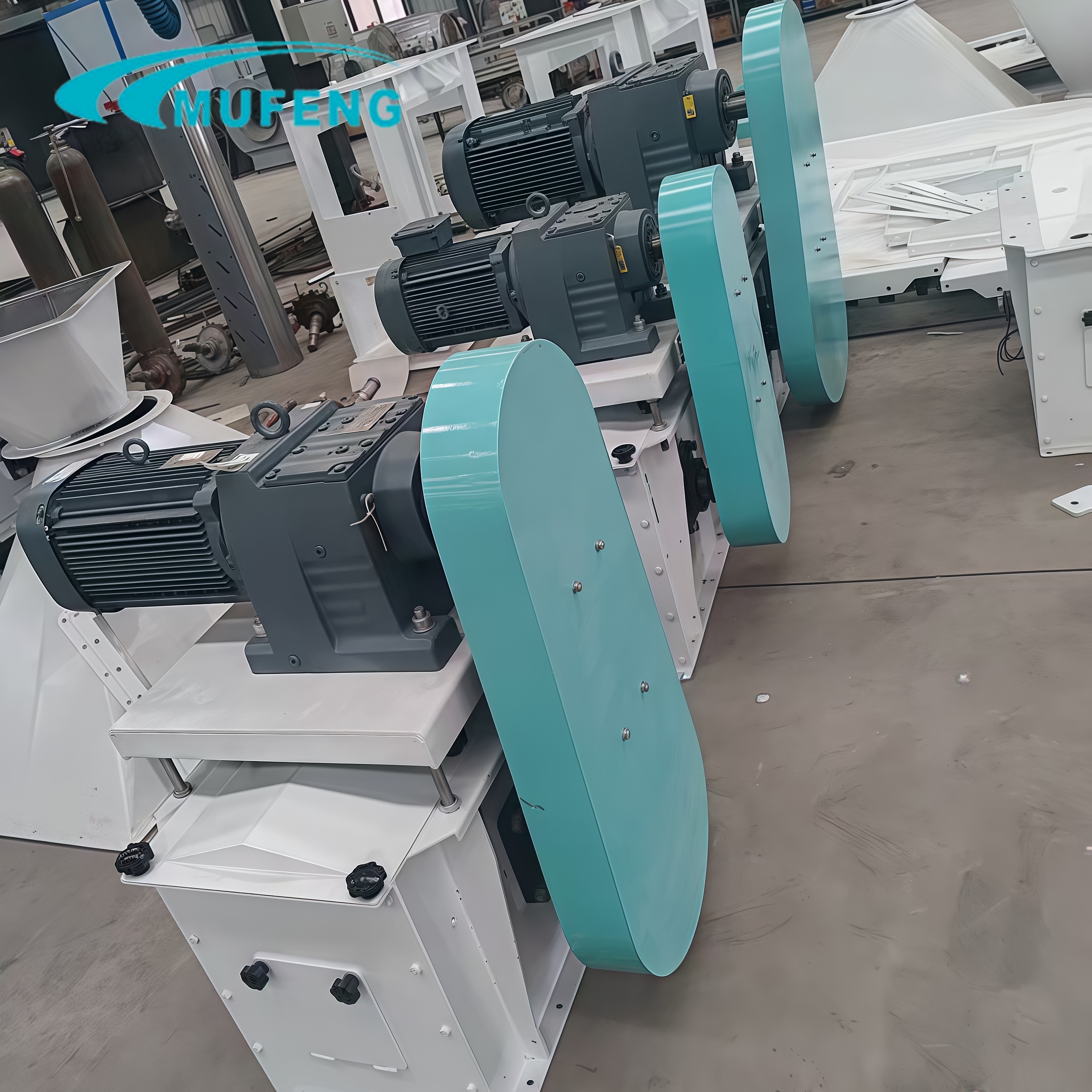

4. Configure gear reducers for longer lifespan;
5. Configure sensitive blockage alarm protection, speed measurement device, and chain breakage alarm device;
6. Manganese steel chains have high strength and can transport longer lengths.
| Conveying Distance
(m) |
Tgsu Buried Scraper Conveyor | Tgss Type Buried Scraper Conveyor | ||||
| Model | Nominal Output (m³/h) | Configure Power (kw) | Configure Power (kw) | Nominal Output (m³/h) | Model | |
| 16 | TGSU20 | 60 | 2.2 | 3 | 55 | TGSS20 |
| 24 | TGSU20 | 60 | 4 | 4 | 55 | TGSS20 |
| 16 | TGSU25 | 85 | 3 | 5.5 | 90 | TGSS25 |
| 24 | TGSU25 | 85 | 5.5 | 7.5 | 90 | TGSS25 |
| 32 | TGSU25 | 85 | 5.5 | 11 | 90 | TGSS25 |
| 16 | TGSU32 | 140 | 5.5 | 7.5 | 130 | TGSS32 |
| 24 | TGSU32 | 140 | 7.5 | 11 | 130 | TGSS32 |
| 32 | TGSU32 | 140 | 9.2 | 15 | 130 | TGSS32 |
| 16 | TGSU40 | 275 | 9.2 | 15 | 300 | TGSS40 |
| 24 | TGSU40 | 275 | 15 | 18.5 | 300 | TGSS40 |
