Home > Cooler > SKLYF Series lmpeller Cooler

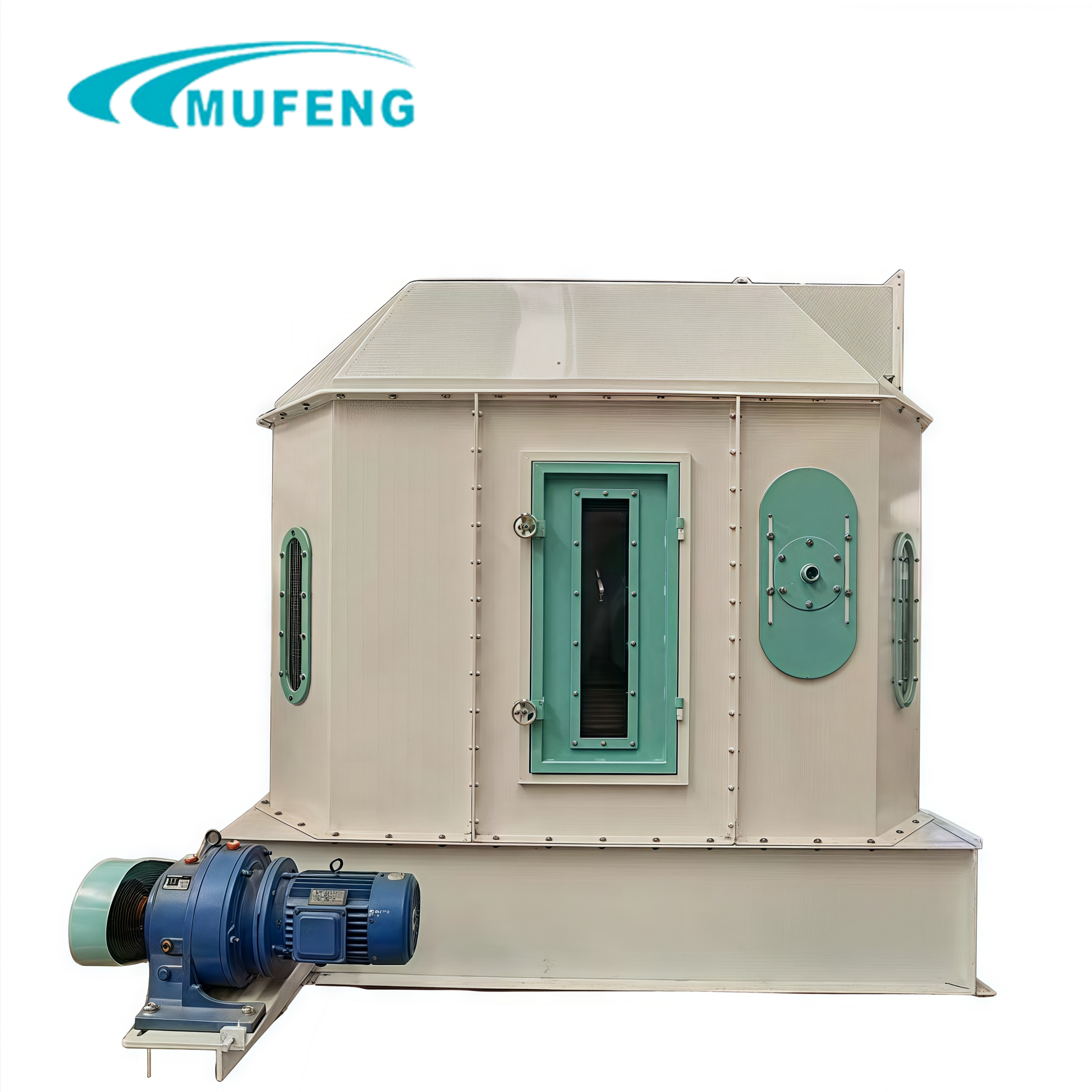

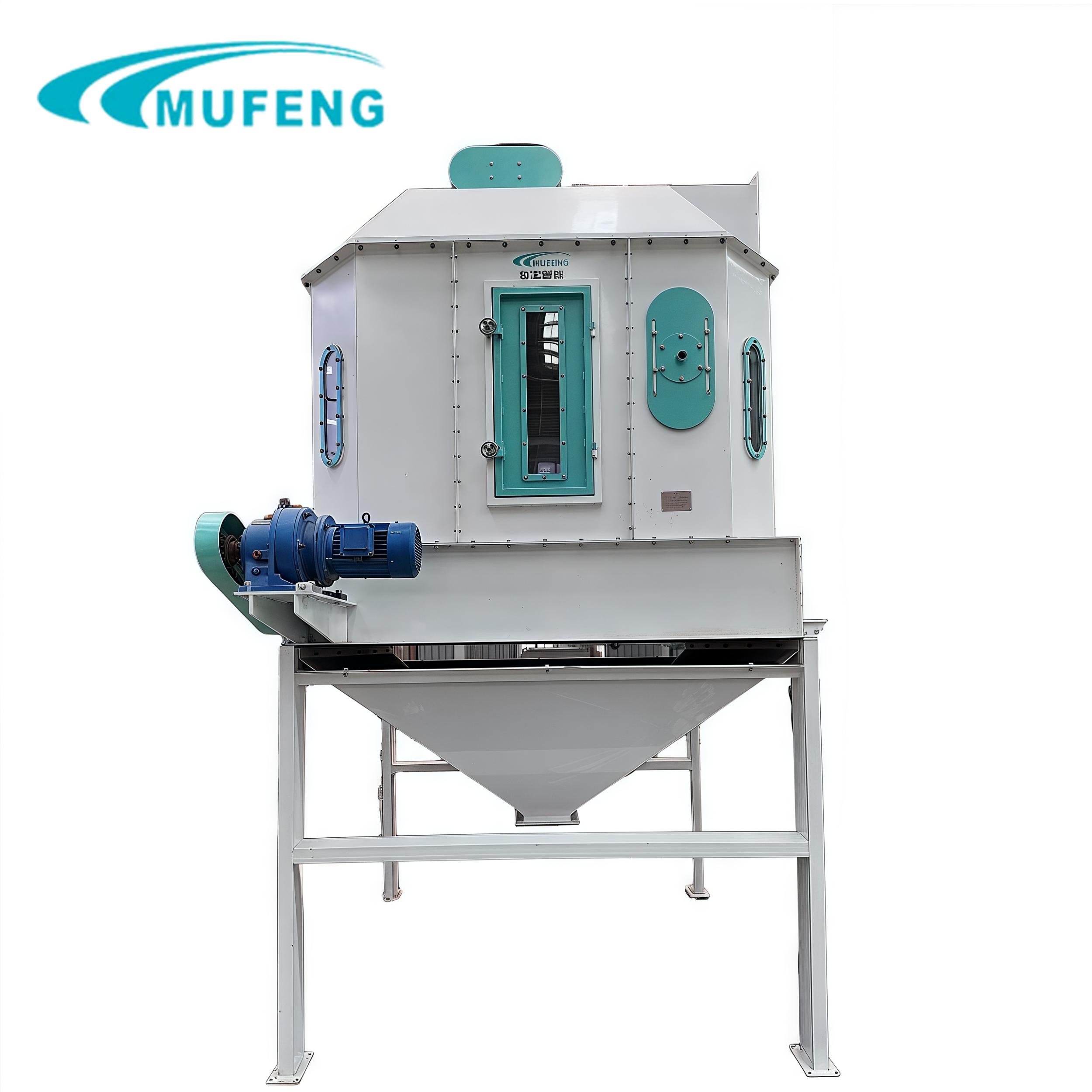

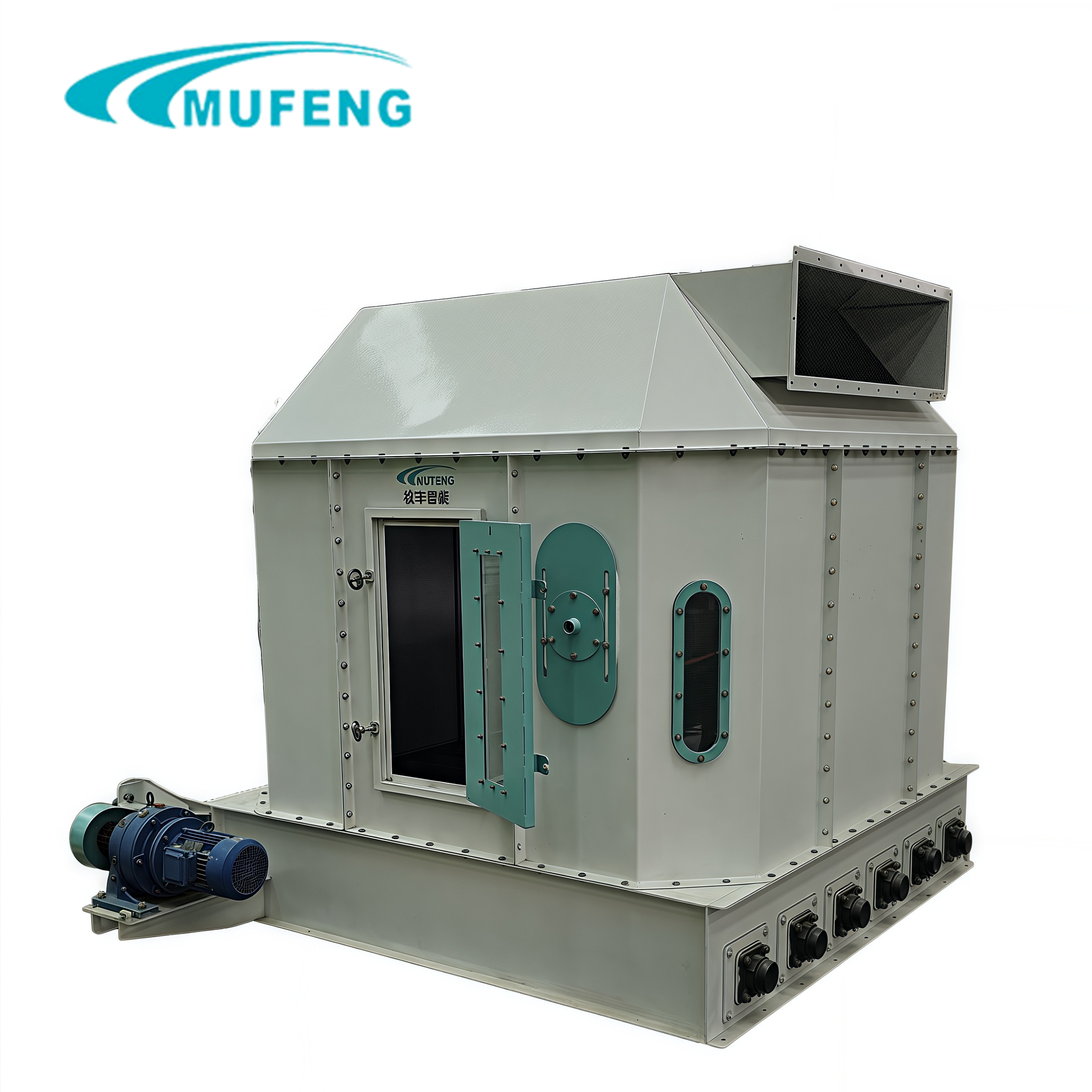

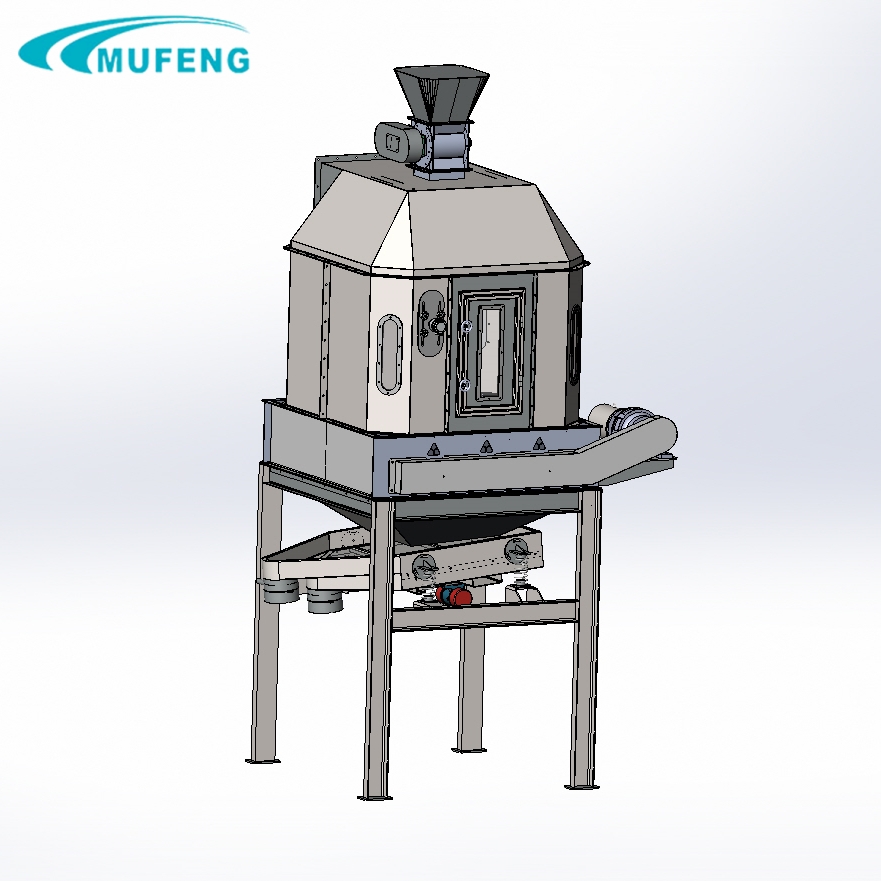

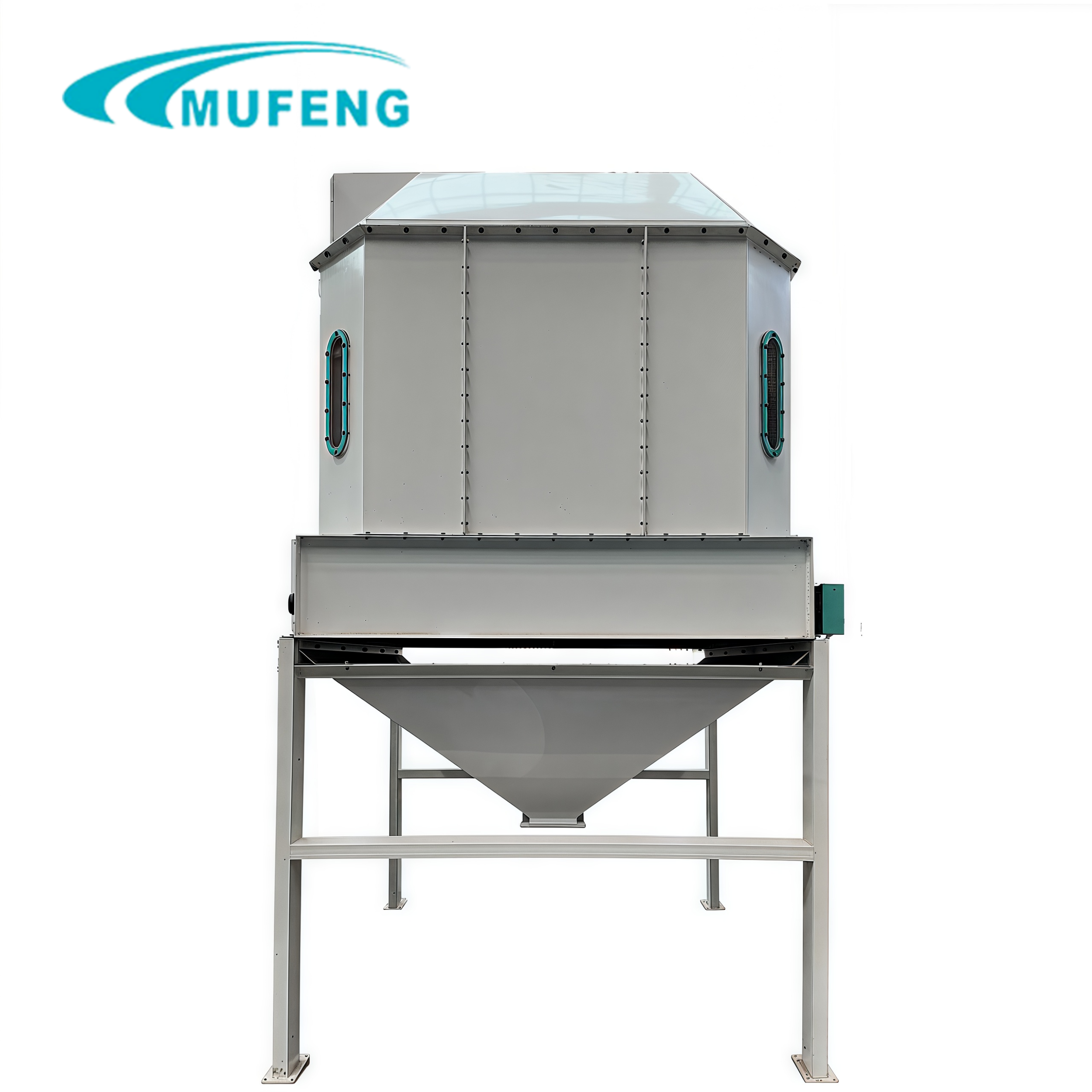

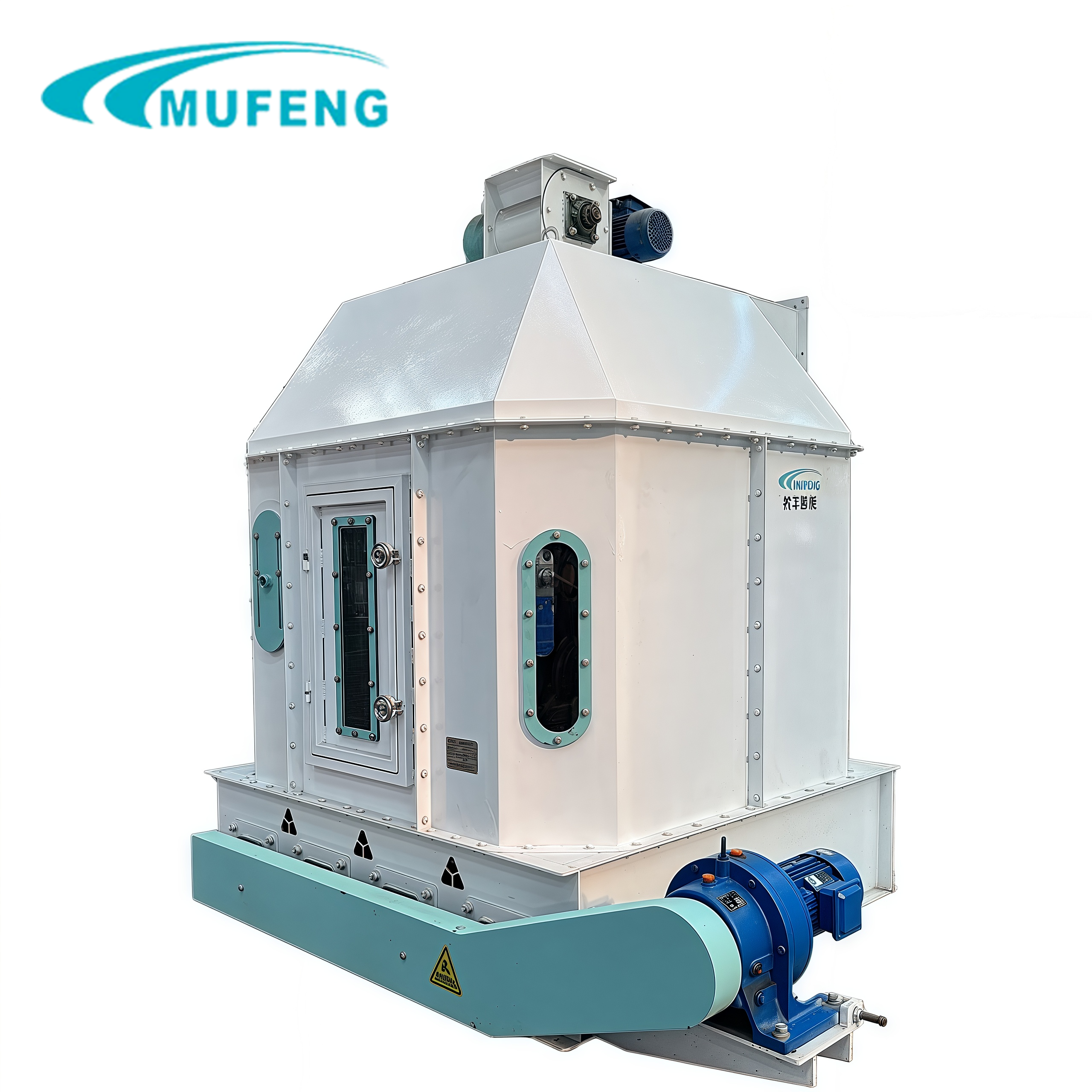

SKLYF Series lmpeller Cooler

1. Cooling is uniform, temperature ±2℃;
2. No leakage;
3. No residue;
4. Automatic control.

Quote Now

Send E-mail

Performance Fetures

Good cooling effect. The cooling air and the granular material move in the opposite direction, so that the material is gradually cooled from bottom to top, reducing particle cracks;
The material temperature after cooling is not higher than room temperature + 3℃, and the precipitation rate is not less than 2%, which prolongs the storage time of particles;

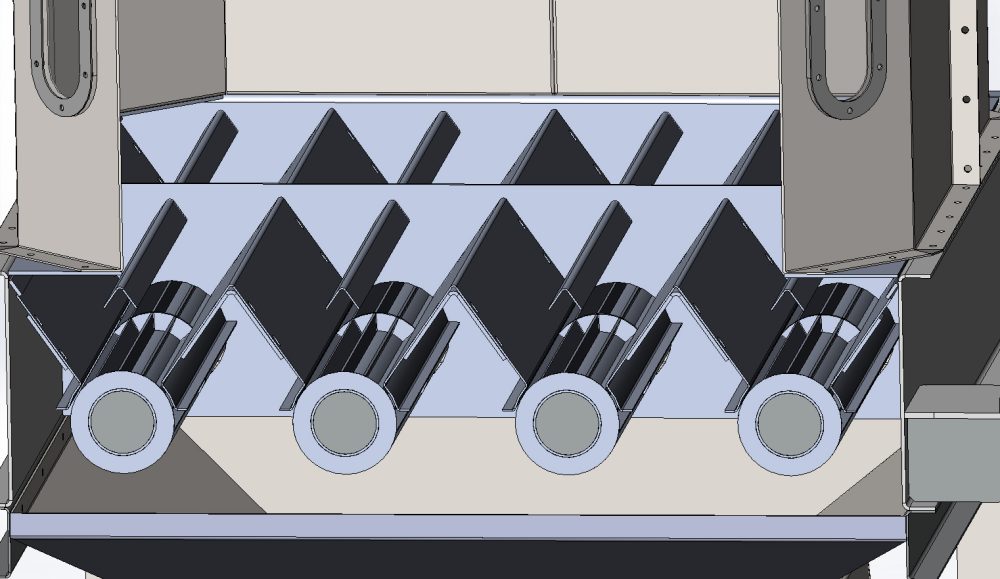

The unloading device adopts an impeller unloader, which does not leak;
It can automatically clean the material without residue to avoid cross contamination;
Automatic temperature monitoring at four corners, which can be automatically controlled with the cooling fan frequency conversion;
Electric distributor and flattening device are optional.

Technical Parameters

Model	SKLYF15×15	SKLYF20×20	SKLYF24×24	SKLYF28×28
Capacity(t/h)	5	10	15	30
Cooling Time(min)	8~15minutes
Temperaturet Cooling(℃）	≤Room temperature+5℃
Power(kw)	1.5	2.2	3.0	5.5
Fan Pressure(Pa)	2000	2000	2000	2000
Fan Type	4-72-11NO-5A/7.5kw	4-72-11NO-6C/15kw	4-72-11NO-8C/30kw	4-72-11NO-10C/37kw

Raw Materials and Final Products

Impeller coolers are widely used in cooling various pellet feeds, such as livestock and poultry pellet feeds, shrimp feeds, etc. They have the characteristics of uniform cooling, no leakage, and no residue, and have the trend of replacing reciprocating grid type discharge structure coolers.

Bean

Corn

Livestock feed pellet

Turnkey successful projects

Always Create Client Value

Successful case of aquatic feed production line project with annual output of 420,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 2T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons

Country

Tongliao City, Inner Mongolia

Capacity

90,000 tons/year

Application

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of pellet feed production line project with annual output of 120,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of broiler pellet feed production line project with annual output of 180,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of additive premix production line project with annual output of 60,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

FAQ

The discharge principle of the cooler currently used is a reciprocating grid type. How to solve the leakage problem?

The cooler with a reciprocating grid type discharge structure often leaks, and the cooling is uneven. The shutdown requires manual cleaning of the residue; you can consider replacing it with an impeller type discharge structure, retaining the body and only replacing the intermediate discharge mechanism; our company has replaced it for many customers;

Will the impeller and the air vent plate cause particle breakage?

No, the air vent plate designed by our company has an arc plate on the contact surface with the impeller, so the packaging will not leak and will not cause particle breakage;

Is the impeller cooler automatically controlled?

The impeller cooler discharge is automatically controlled by combining the level meter and the time relay, and the cooling time can also be adjusted by adjusting the height of the level meter.
