1. Fast batching speed, a batch can be prepared in 2-3 minutes;
2. High batching accuracy, static error ≤1%, dynamic error ≤3%;
3. Arc-shaped flap scale door, tightly sealed, no leakage, no residue;
4. Additives are mixed with scales to prevent errors.

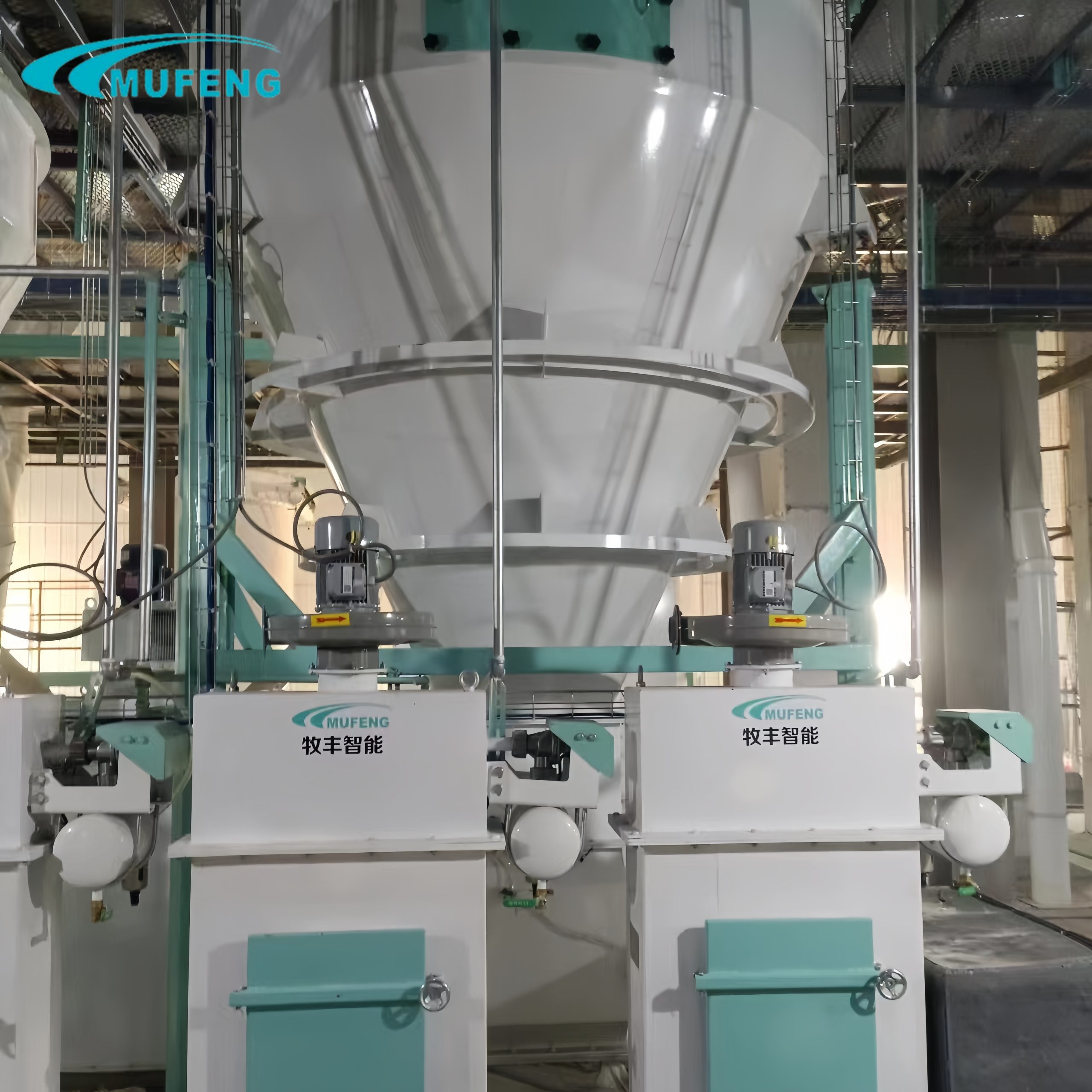

The batching scale is equipped with Toledo sensor, which has high batching accuracy, static error ≤ 1%, dynamic error ≤ 1%;
The arc-shaped flap discharge door and the discharge mechanism have self-locking function, no residue, no leakage;
The additive feeding port is equipped with a composite scale to prevent misfeeding;
The LED display screen displays the type and quantity of feeding in real time;
The scale body is equipped with a weight rack, and an automatic scale calibration device can be optionally equipped;
It can store 1,000 recipes for easy access;
The complete reporting system can automatically count the details of raw material usage.
Technical Parameters
Model
PLC.500
PLC.1000
PLC.2000
PLC.3000
PLC.4000
Effective volume/m³
1
2
4
6
8
Sensor/3 pieces
500KG
1000KG
1500KG
2000KG
3000KG
Raw Materials and Final Products
It is widely used in computer automatic batching of compound feed factories, concentrated feed factories, feed additives, chemical, food, flour and other industries.
How to solve the problem of unachievable batching accuracy?
Check whether the scale door is leaking, check whether the sensors are on the same horizontal plane, and recalibrate the scale; change the fast feeding and full feeding settings, and increase the full feeding amount to improve the accuracy.
The error of raw materials such as stone powder and calcium hydrogen is large, and the loss of raw materials is large. What is the reason?
Because stone powder and calcium hydrogen phosphate have very good fluidity, when the batching auger stops, stone powder or calcium hydrogen phosphate will flow into the batching scale with inertia, resulting in large batching errors of these two raw materials. The solution is to add pneumatic butterfly valves and auger interlocking control at the outlet of such raw materials.
When the mixer is discharging, the instantaneous weight fluctuation of the batching scale is large. What is the reason?
This is because when the mixer is discharging, a large airflow is instantly transmitted to the batching scale, causing the weight value of the batching scale to suddenly decrease. The solution is to add an airflow balance pipe between the mixer and the batching scale, and install a pneumatic butterfly valve on the unloading pipe between the scale and the mixer.
