Home > Pellet Mill > MFSCT Series Dual-Axis Differential Speed Conditioner

Double shaft differential speed conditioner

MFSCT series dual-shaft differential conditioner

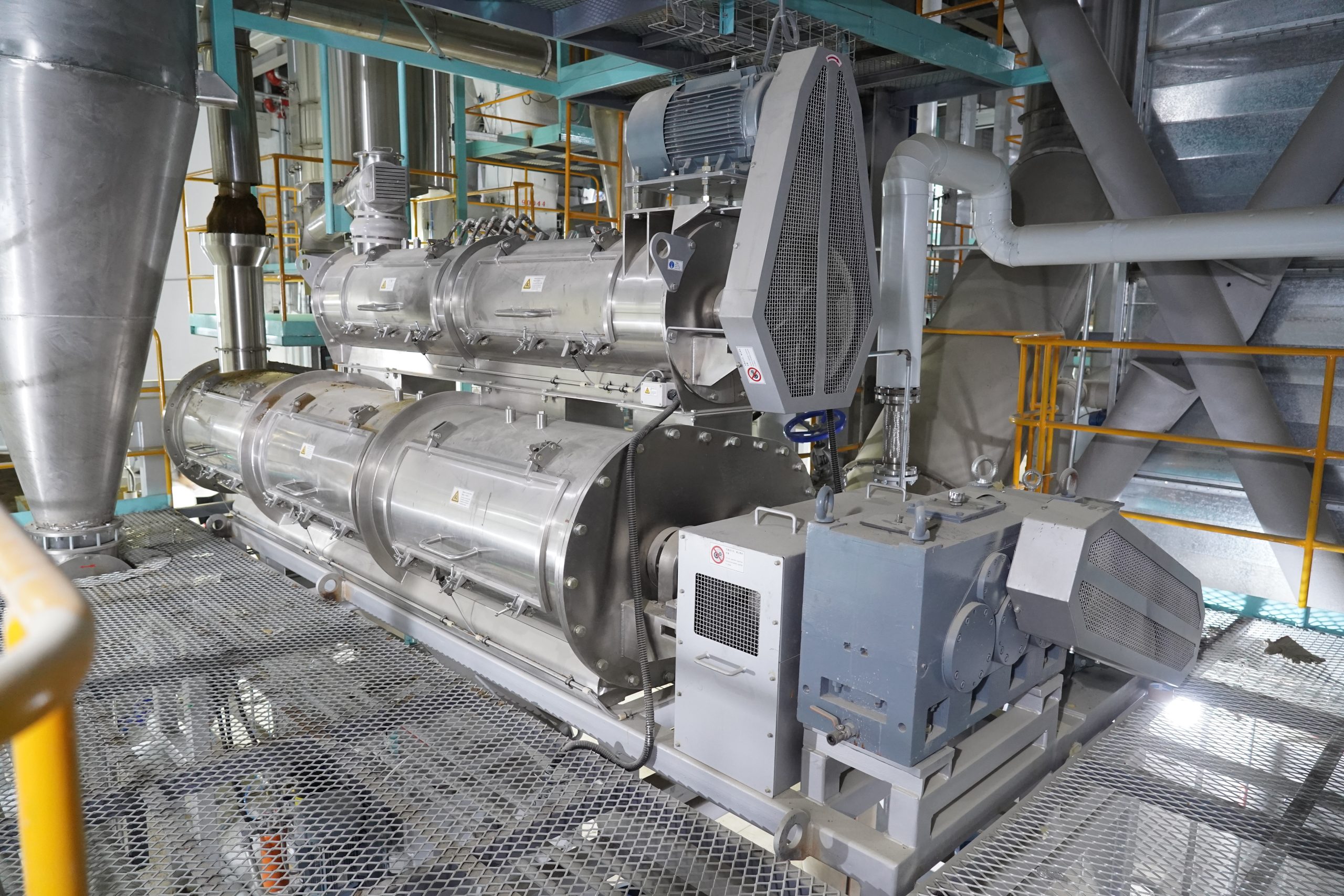

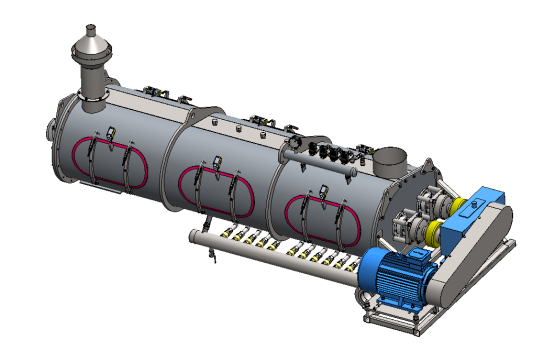

MFSCT Series Dual-Axis Differential Speed Conditioner

MFSCT series dual-axis differential conditioner is used for pretreatment before puffing in the aquatic feed and pet food industries. This series of double-shaft reducer conditioners need to be used in conjunction with other conditioners. They can perform high-temperature sterilization, starch gelatinization, protein texturization and other adjustment functions on various compound feeds to fully prepare for the puffing process.

Quote Now

Send E-mail

Double shaft differential speed conditioner ,which can perform high-temperature disinfection, starch gelatinization, protein organization, and other adjustment functions on various formula feed, making sufficient preparation for the puffing process.

Performance Fetures

The conditioner time is longer and the conditioning effect is better. The MFSCT dual-axis conditioner is similar to the hygienizer and needs to be used with other conditioners. The default is the three-axis conditioner, which can obtain a longer conditioner time. This product can be used alone.

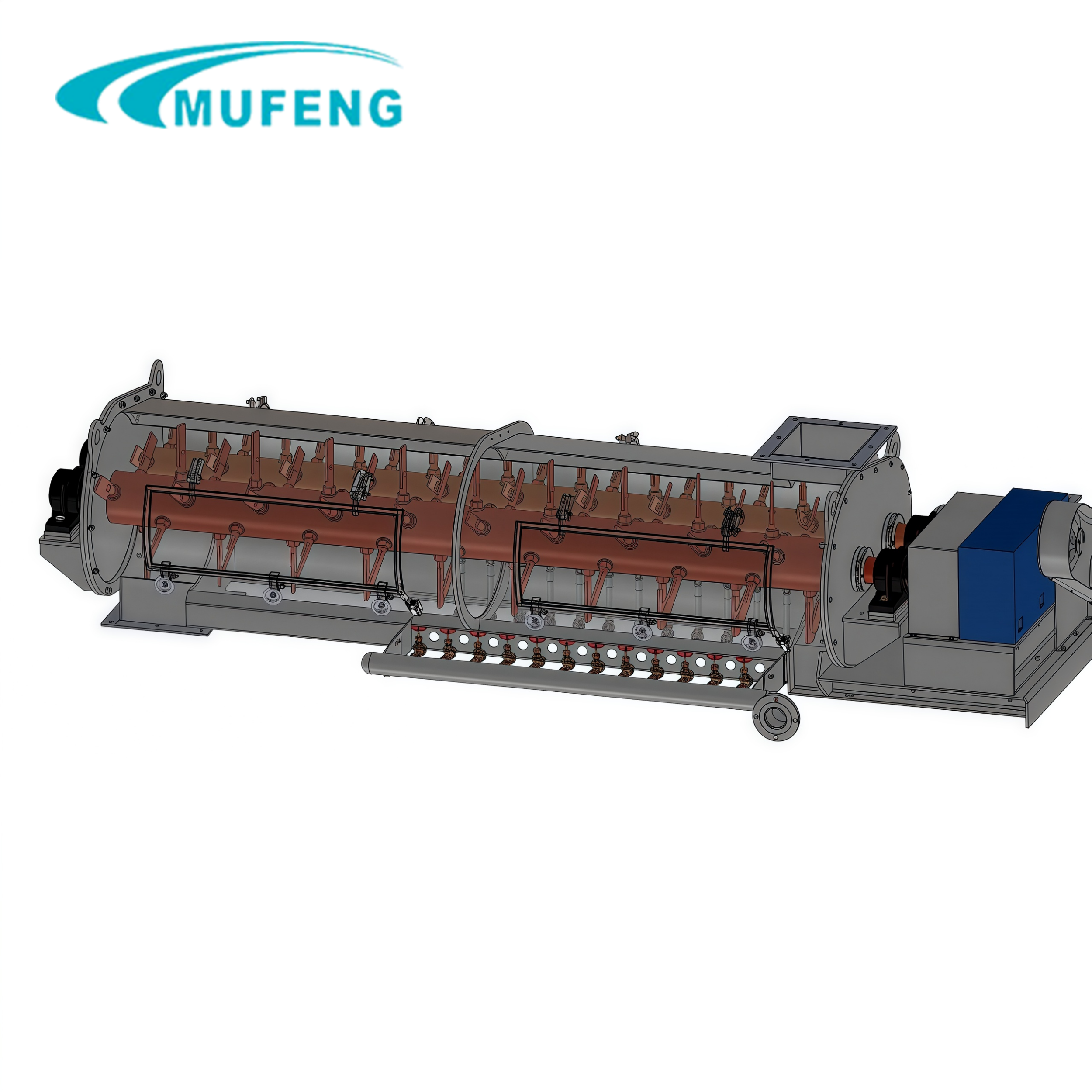

High shear, the material is first in first out. The angles of the two rotor blades are opposite, ensuring that the material advances or retreats at the same time at the same position, which can achieve the first in first out effect of the material.

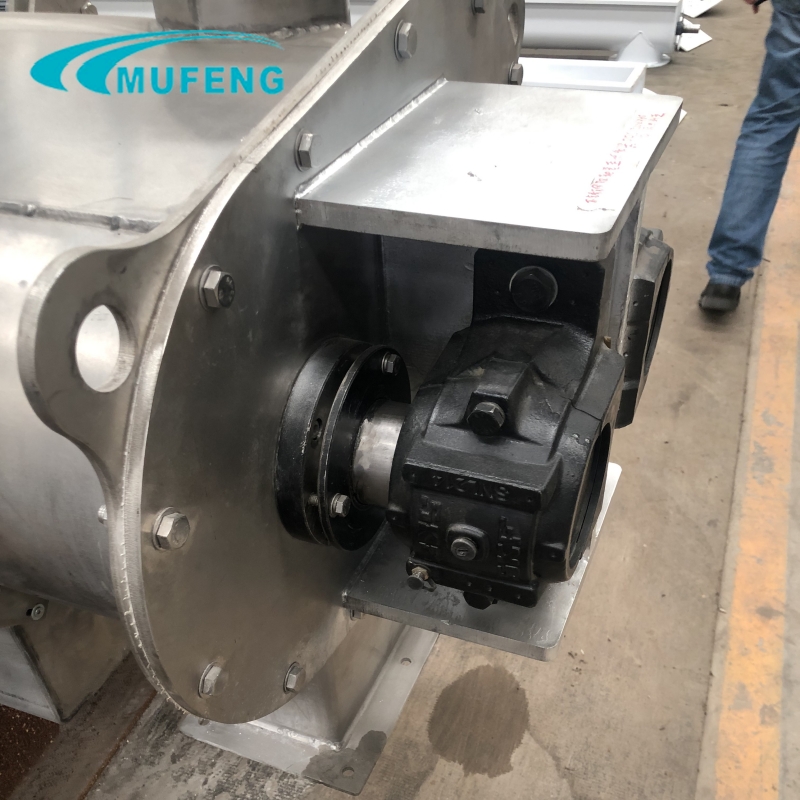

The sealing is fully upgraded to eliminate leakage and leakage. The shaft end seal is professionally designed with multi-layer sealing, good sealing effect and long sealing life. The door seal is embedded with high-temperature resistant foamed silicone seal, which has a long life and is easy to install.
Simple operation and convenient maintenance. The door opening length accounts for about 70% of the total length of the conditioner, which is easy to clean, and the door locking mechanism has an automatic function; the shaft end seal is designed with a large replacement space, and the seal is easy to replace after aging.
Motor variable frequency control can meet the requirements of various working conditions. Variable frequency motors can be used to adjust the speed online according to different production capacity and formula requirements, thereby adjusting the fullness and optimizing the tempering effect; the reduction gearbox provides Guomao hard tooth surface reducer configuration.

Technical Parameters

Model	MFSCT250	MFSCT280	MFSCT320	MFSCT355	MFSCT400
Motor Power(kw)	7.5	11	15	18.5	22
Capacity(t/h)	5-8	8-10	10-12	12-15	18-22
Conditioning Time(s)	120	120	120	120	120
Length Of Tempering Cylinder(mm)	3000	3000	3000-4000 Customized	3000-4000 Customized	3000-4000 Customized

	MFSCT250	MFSCT280	MFSCT320	MFSCT355	MFSCT400	Amount
Bearing	UCFC210	UCFC212	UCFC213	UCFC215	UCFC216	2
Bearing	UKFC211	UKFC213	UKFC215	UKFC217	UKFC218	2
Triangle Tape	A2000	B2000	B2240	SPA2240	SPB2560

Raw Materials and Final Products

MFSCT Series Dual-Axis Differential Speed Conditioner, which can perform high-temperature disinfection, starch gelatinization, protein organization, and other adjustment functions on various formula feed, making sufficient preparation for the puffing process.

Bean

Corn

Livestock feed pellet

Turnkey successful projects

Always Create Client Value

Successful case of 10T/H biomass pellet production line project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of broiler pellet feed production line project with annual output of 180,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons

Country

Tongliao City, Inner Mongolia

Capacity

90,000 tons/year

Application

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 2T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of aquatic feed production line project with annual output of 420,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 5T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

FAQ

How to configure the conditioner?

According to the feed requirements, you can configure one layer, two layers or three layers, or choose a dual-axis differential speed conditioner + hygienizer + conditioner;

How to extend the conditioning time?

The conditioner blade angle can be adjusted to increase the material filling coefficient in the conditioner to increase the conditioning time of the conditioner;

Can liquid be added?

Steam, water or meat slurry can be added to the conditioner.
