Home > Dust Removal Equipment > BLMY Series Pulse Dust Collector

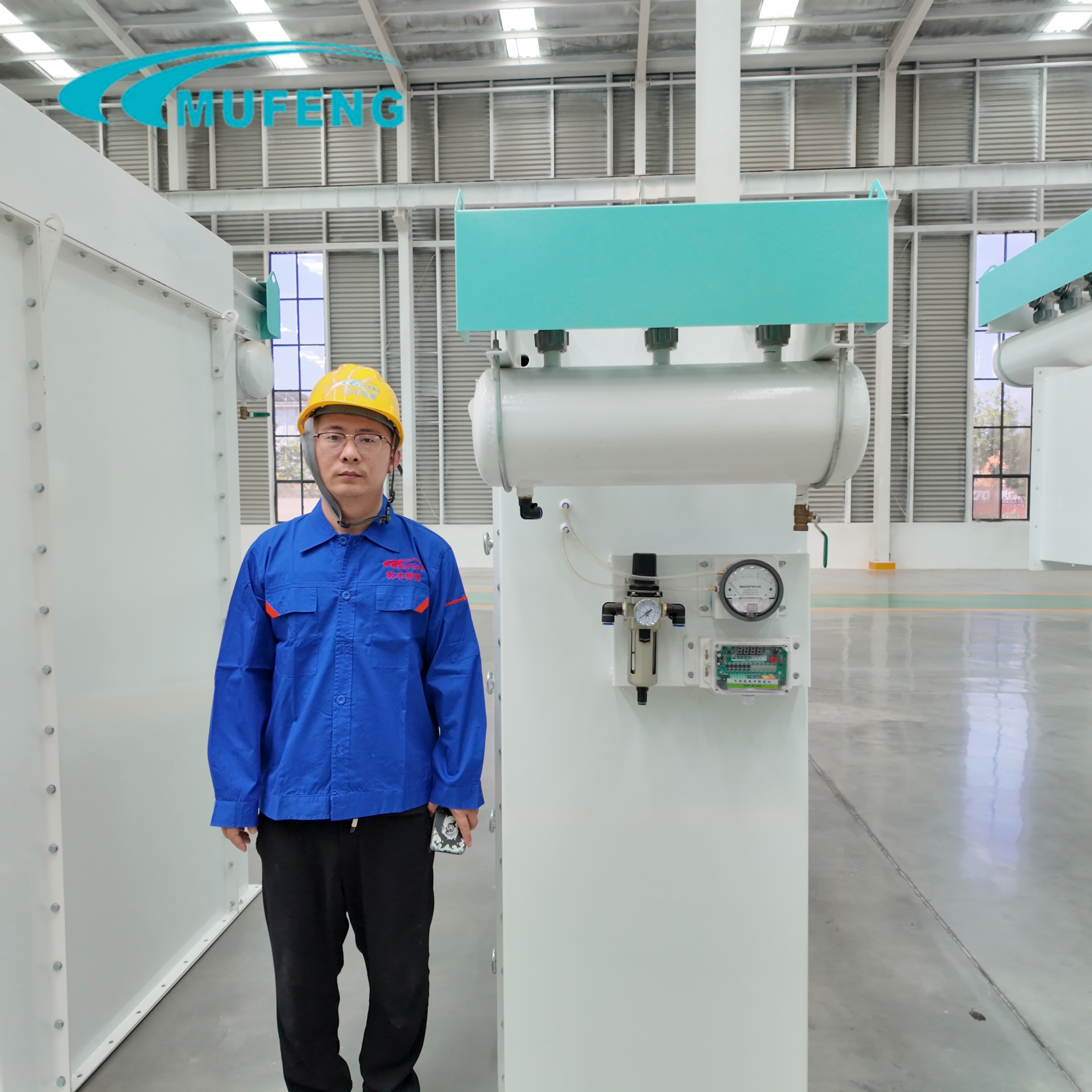

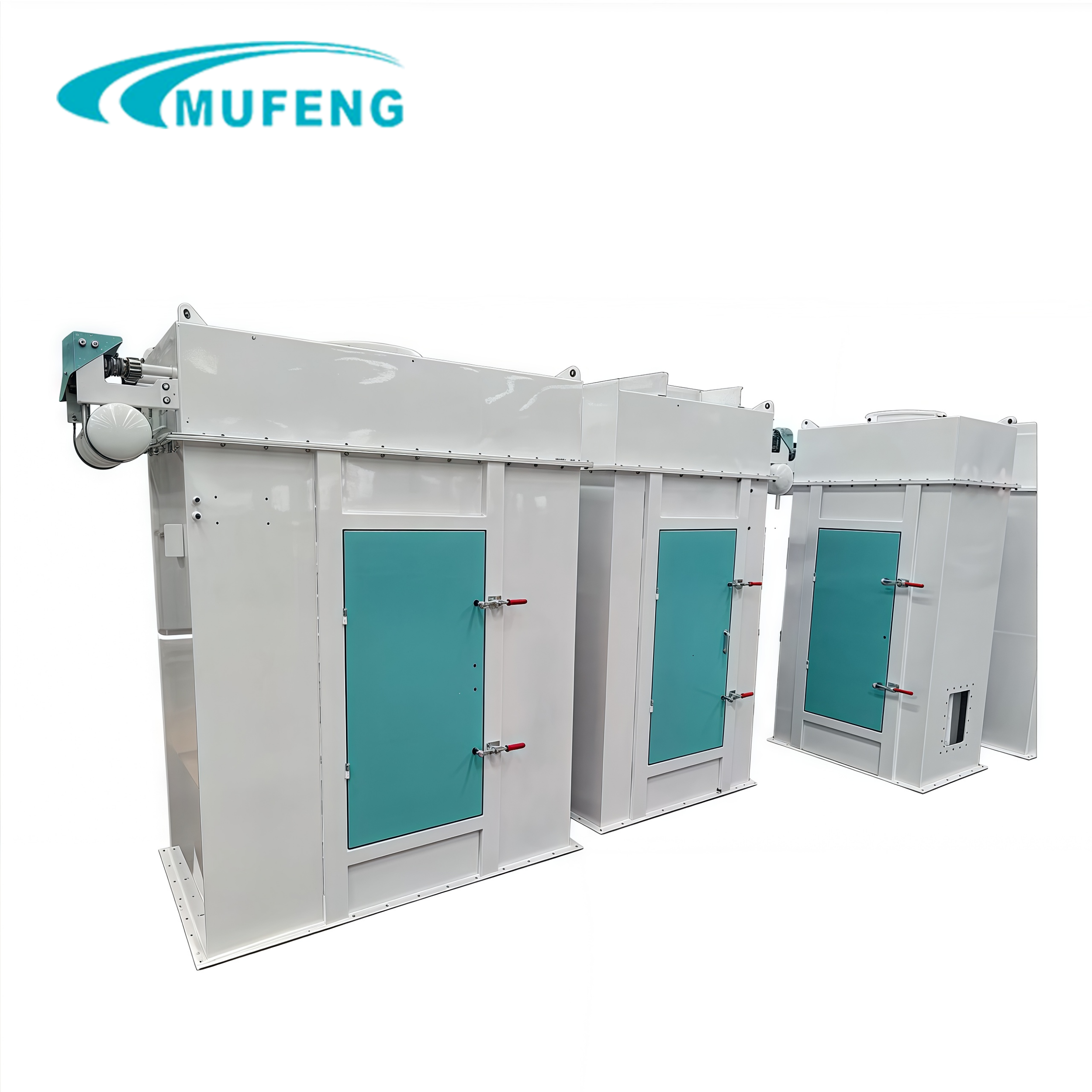

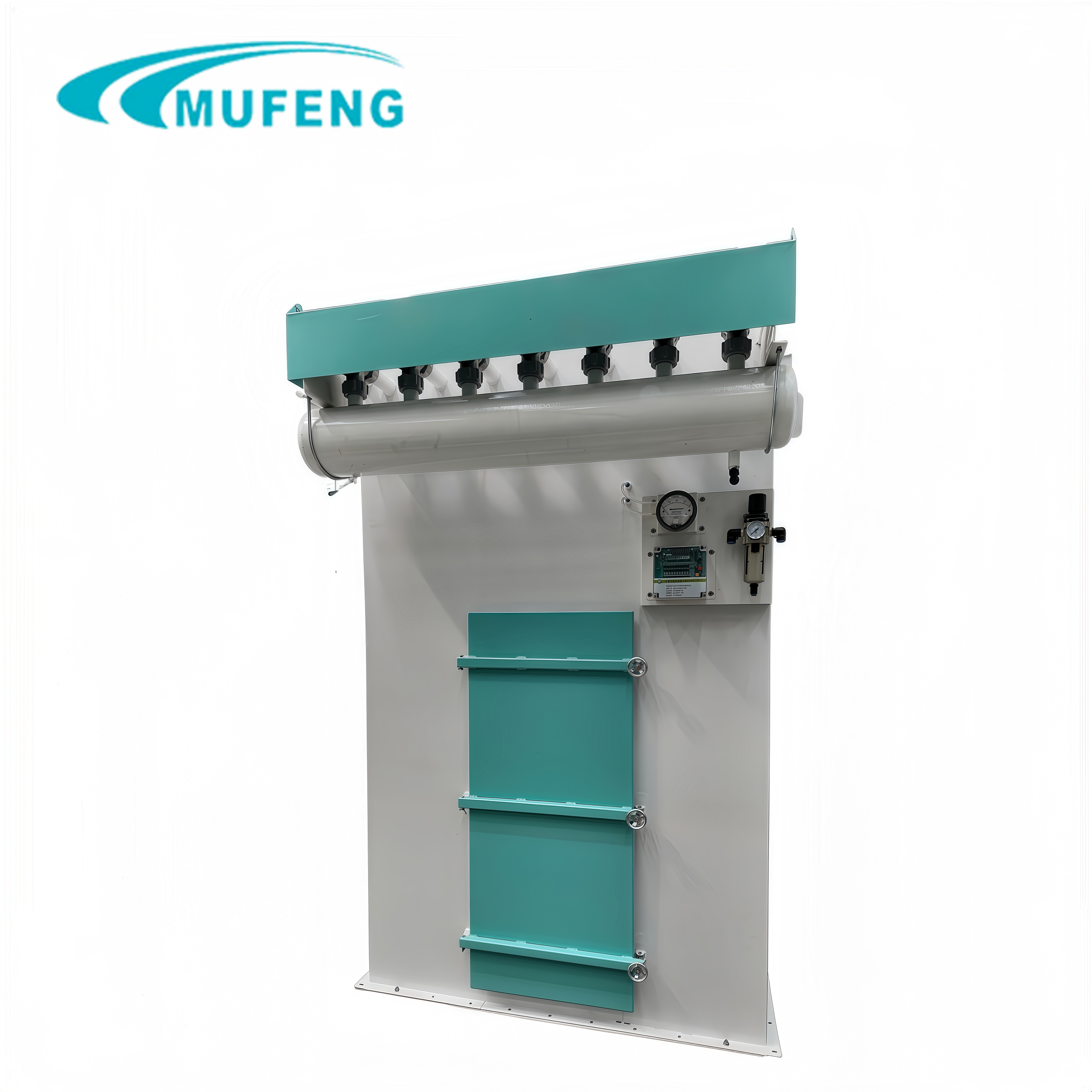

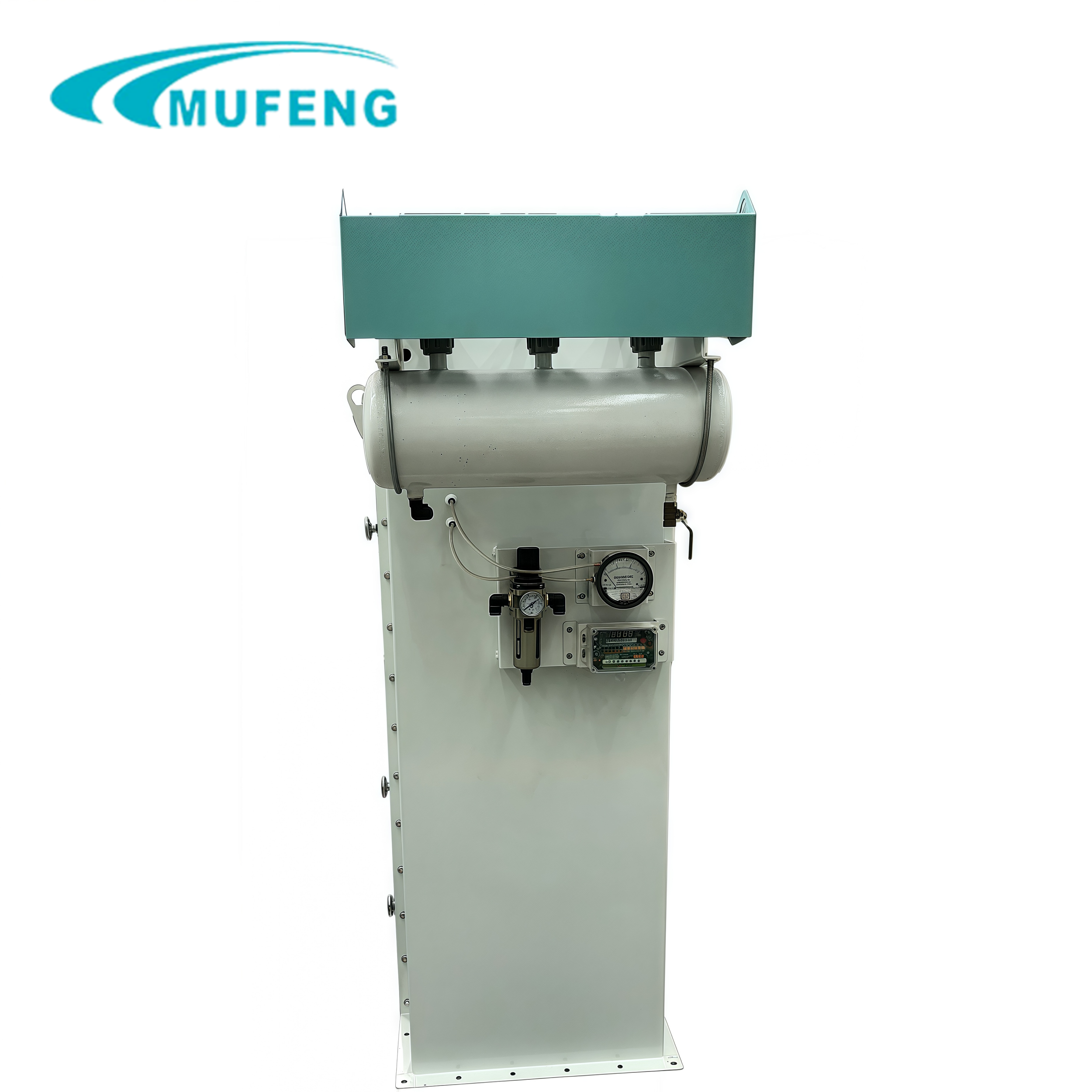

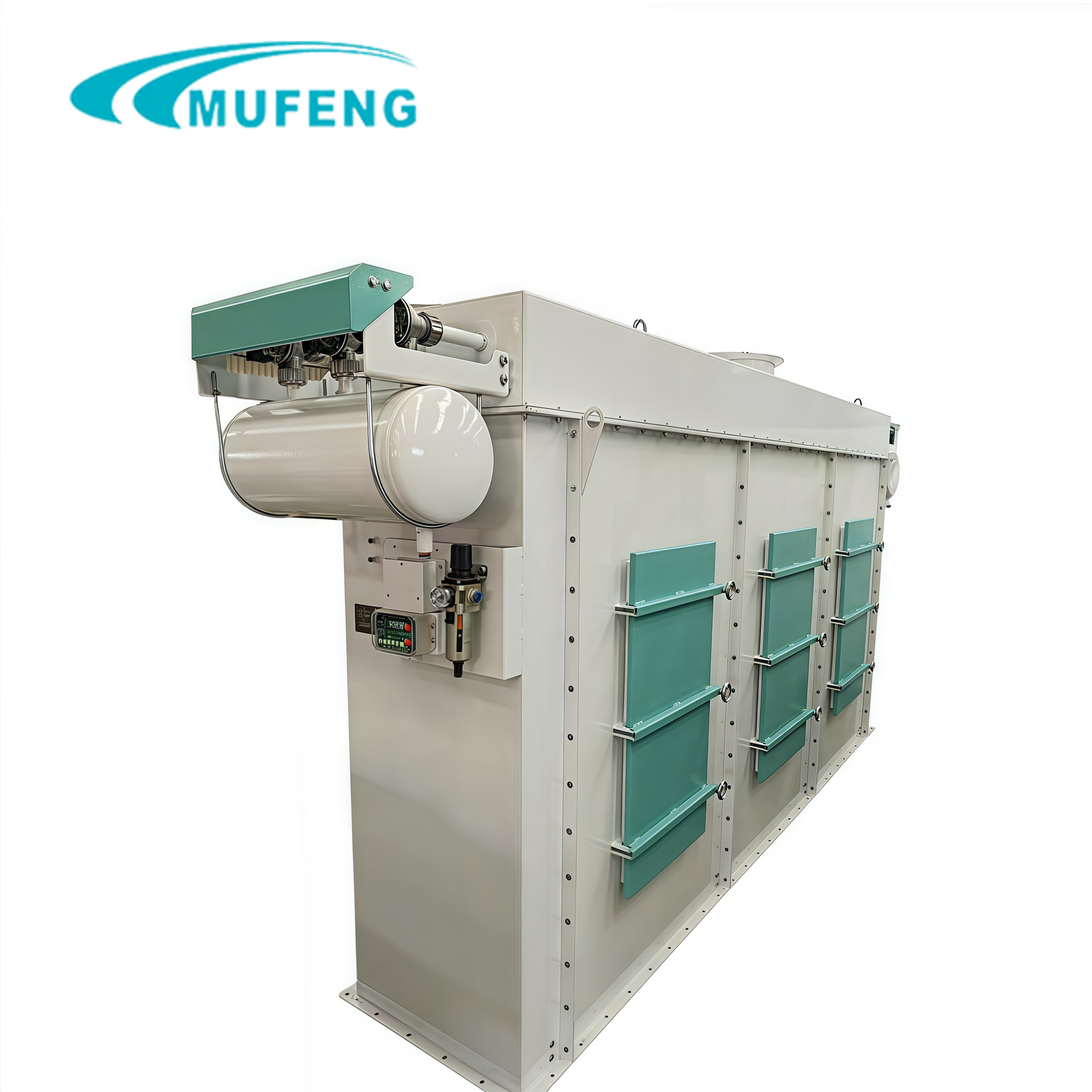

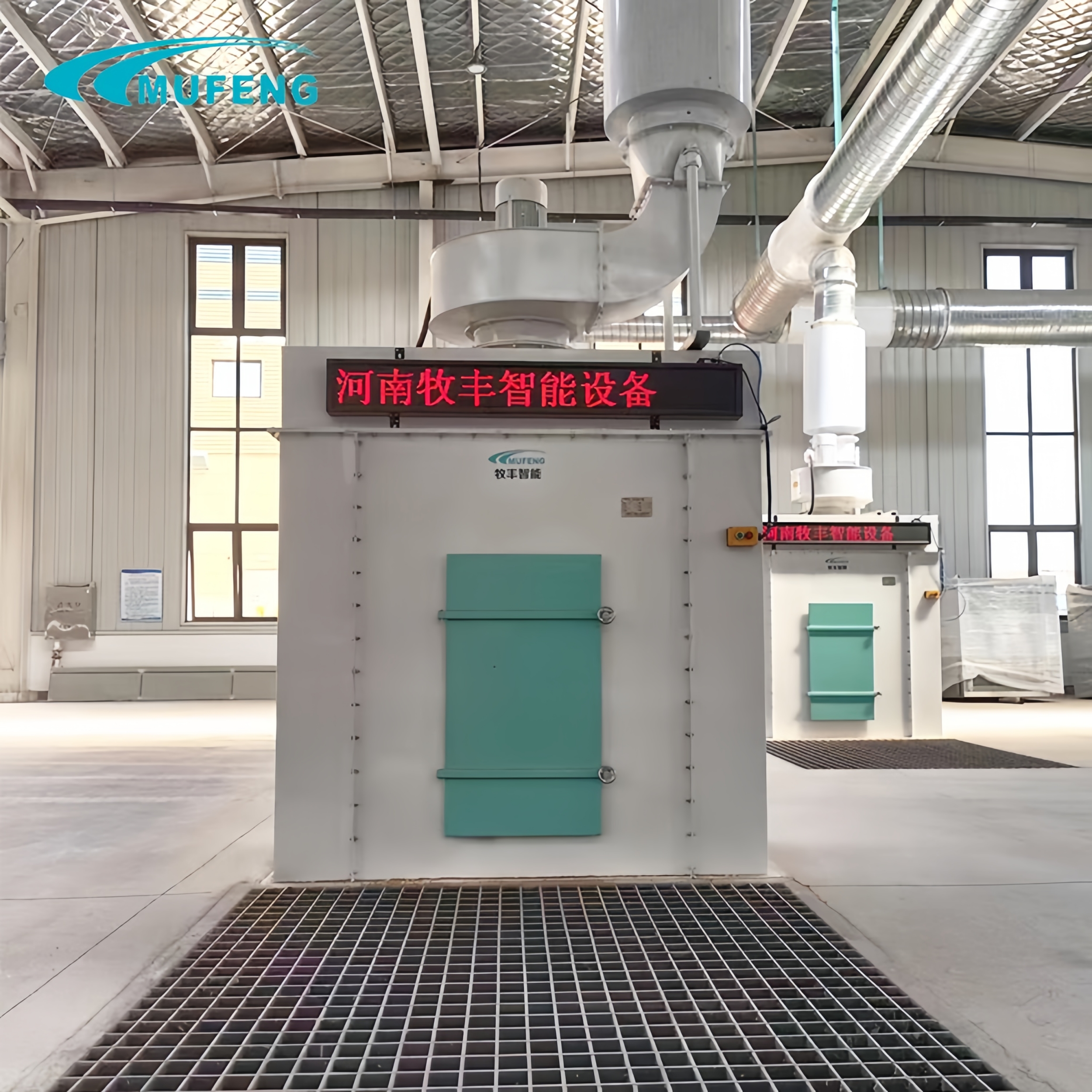

BLMY Series Pulse Dust Collector

1. Increased filtering area for better dust removal effect;
2. Increase the spraying, and the bag cleaning effect is good;
3. Waterproof, oil resistant, and anti-static cloth bag, with long and stable use time.


Quote Now
Send E-mail
Share
Performance Features
  1. Stable and reliable operation, the improved filter bag fixing structure makes operation and maintenance convenient;
  2. The shell adopts mechanical bending and welding, with high structural strength and good sealing;
  3. The air inlet and outlet positions can be adjusted according to material properties or customer needs;
  4. Suitable for dust removal and wind network systems in feed mills, grain and oil processing and chemical industries;
  5. Different models can be customized according to the wind area.

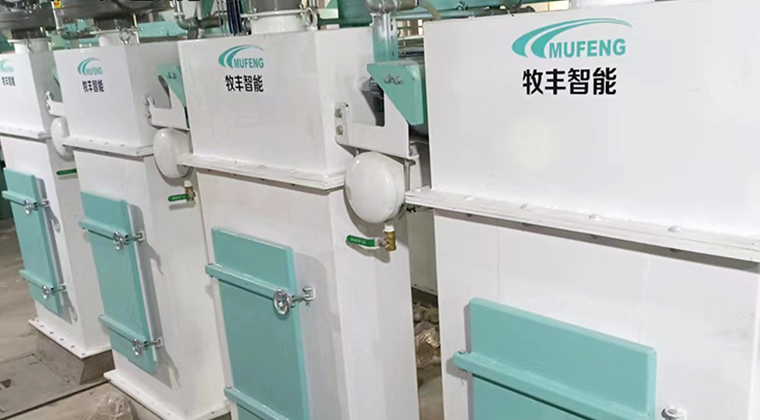

BLMY series pulse dust collector
Competitive Advantage
  1. The conical structure ensures smooth material flow, no residual material, and compact structure;
  2. Stable and reliable operation, high positioning accuracy;
  3. The main components are mechanically bent and welded, with good sealing performance;
  4. Smooth and reliable rotation, low noise, long service life, low powerconsumption, and easy installation and maintenance;
  5. According to user requirements, it can be equipped with an exhaust device.
Technical Parameters
Model BLMY16 BLMY24 BLMY36 BLMY50 BLMY58 BLMY80
Bag quantity 16 24 36 50 58 80
Bag specification(mm) Φ130×1800 Φ130×1800 Φ130×1800 Φ130×2000 Φ130×2000 Φ130×2400
Filtering area(m2) 12 19 27 41 48 80
Air flow(m3/h) 2100-3600 3500-6000 5000-8400 7000-10000 9000-15600 10500-17200
Pan power(kw) 3 5.5 7.5 15 22 55
Filter efficiency(%) ≥98 ≥98 ≥98 ≥98 ≥98 ≥98
Raw Materials and Final Products
Mainly used in the dust removal section of feed mills, grain processing plants, and places prone to dust generation, it can also be used in the negative pressure system of the crushing system for material collection, reducing dust and minimizing losses.
Bean
Corn
Livestock feed pellet
Make pig feed pellet
Pellets
Sorghum
Wheat
Turnkey successful projects
Always Create Client Value
Successful Case of 5T/H Pet Food Production Line Project
Country
Henan
Capacity
5 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of broiler pellet feed production line project with annual output of 180,000 tons
Country
Henan
Capacity
180,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of 10T/H biomass pellet production line project
Country
Henan
Capacity
10 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of additive premix production line project with annual output of 60,000 tons
Country
Henan
Capacity
60,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons
Country
Tongliao City, Inner Mongolia
Capacity
90,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of aquatic feed production line project with annual output of 100,000 tons
Country
Henan
Capacity
100,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
FAQ
How long does it take to replace the bag of the pulse dust collector?
According to different working conditions, the frequency of replacement varies. For example, dust removal used in dry environments can be replaced once a year, while dust removal used in negative pressure suction systems of crushers can be replaced every 3-6 months. After replacement, the bag can be exposed to sunlight and cleaned before reuse. Dust removal bags should not be washed with water;
What is the reason for the sudden increase in dust at the fan outlet of the pulse dust collector?
Check if the bag of the dust collector is loose, damaged, or detached.
