Twin-shaft paddle mixer

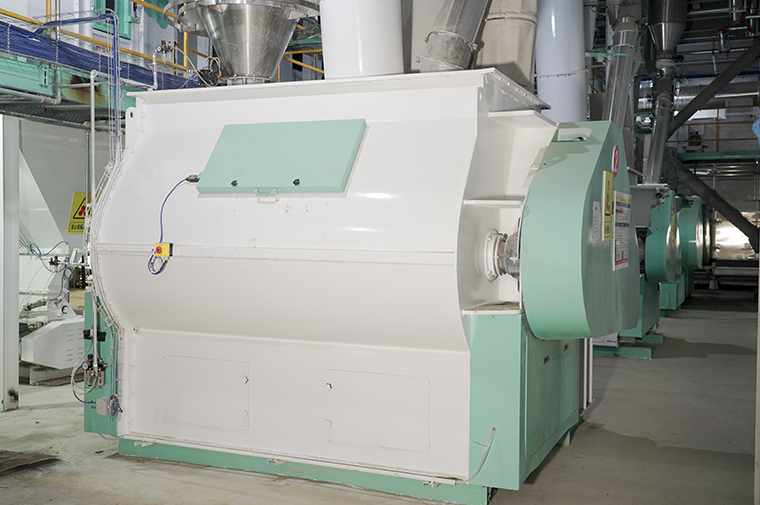

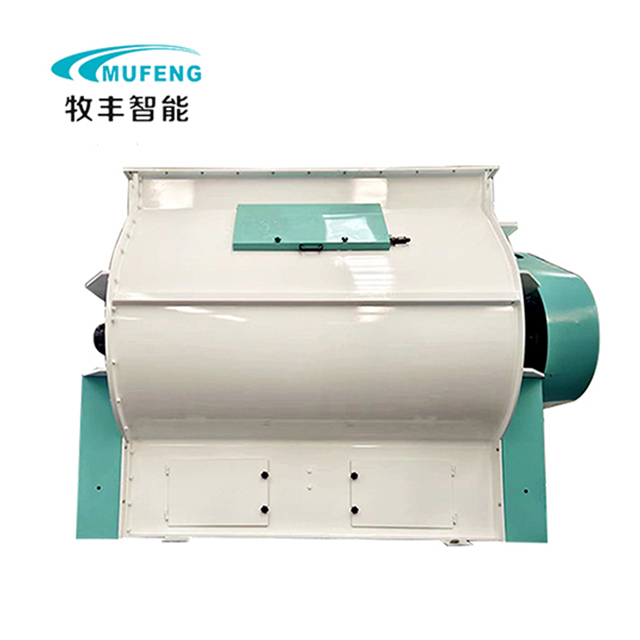

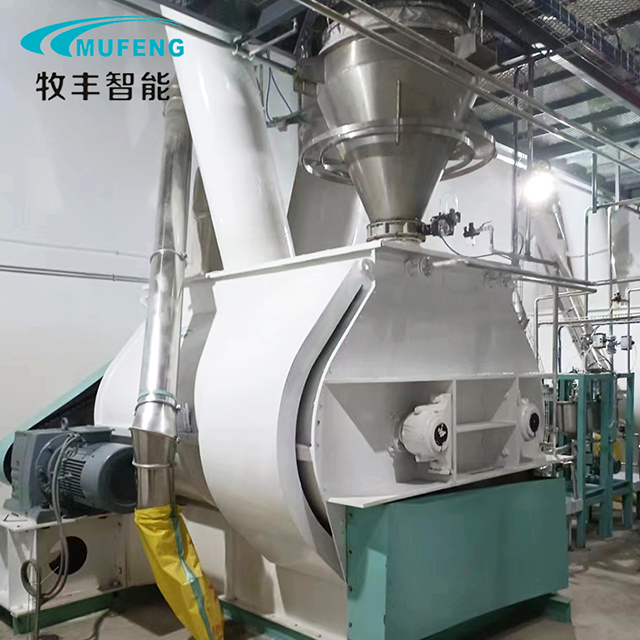

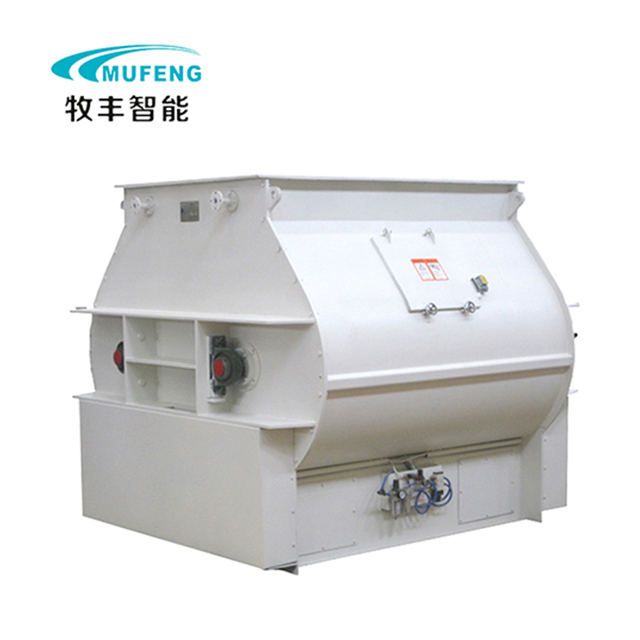

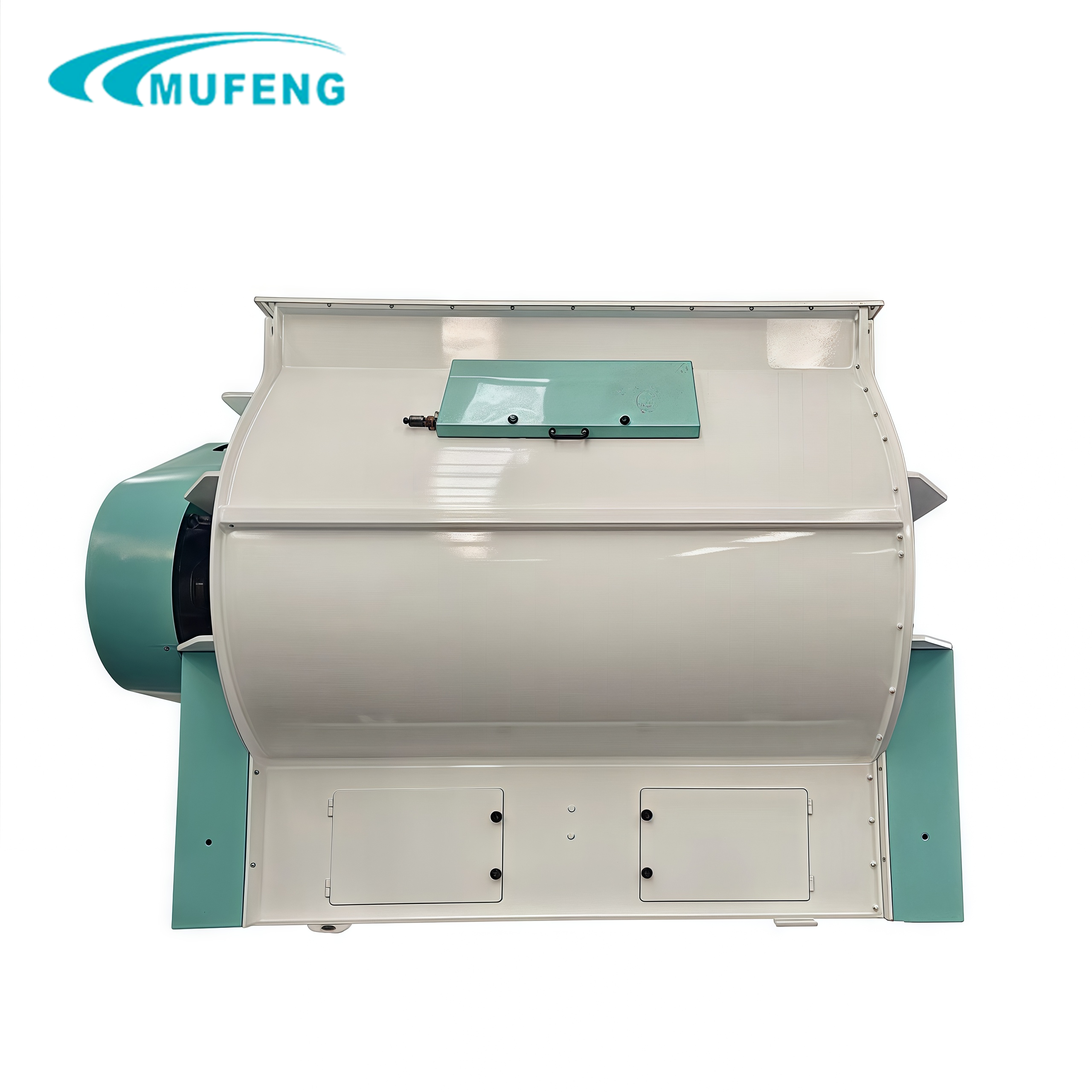

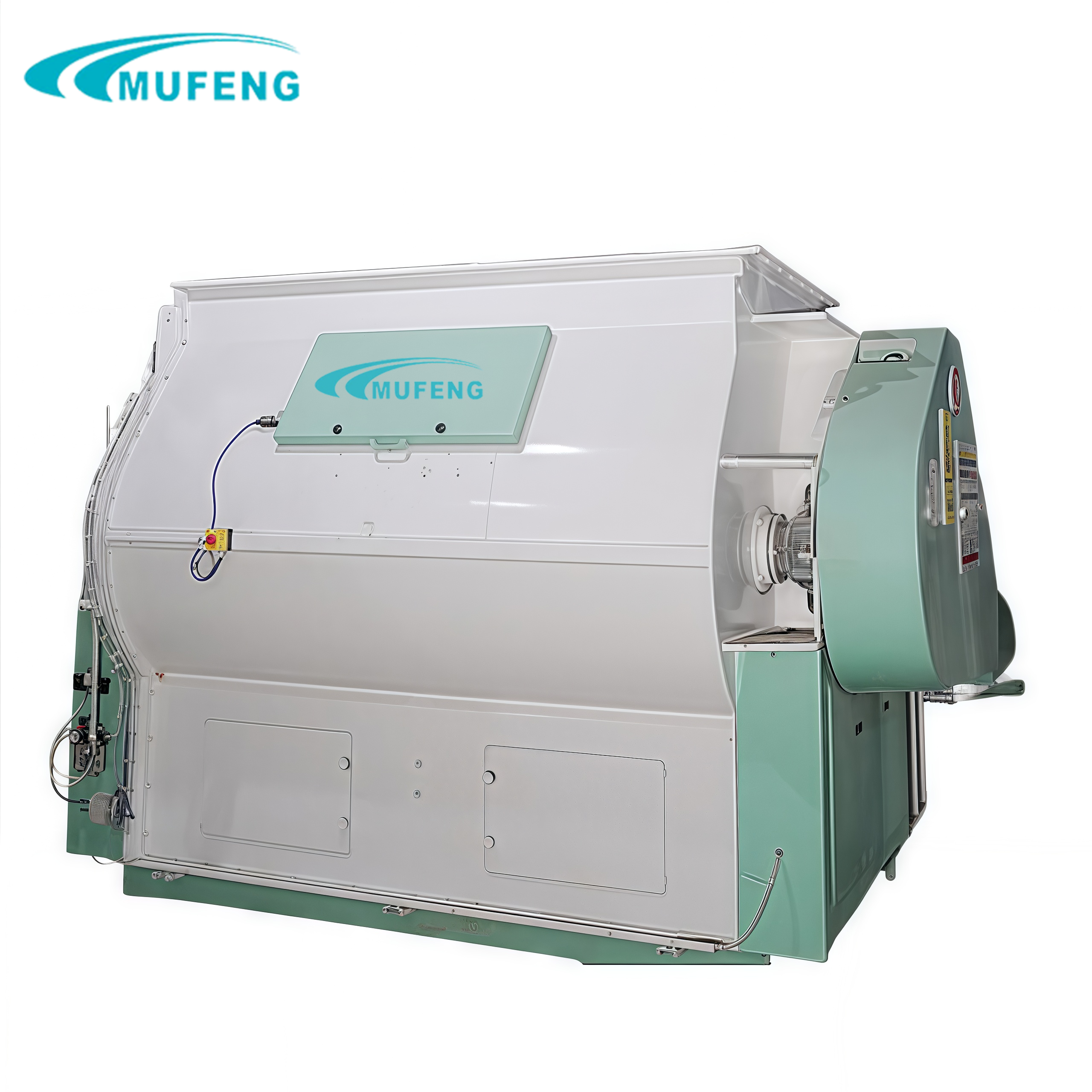

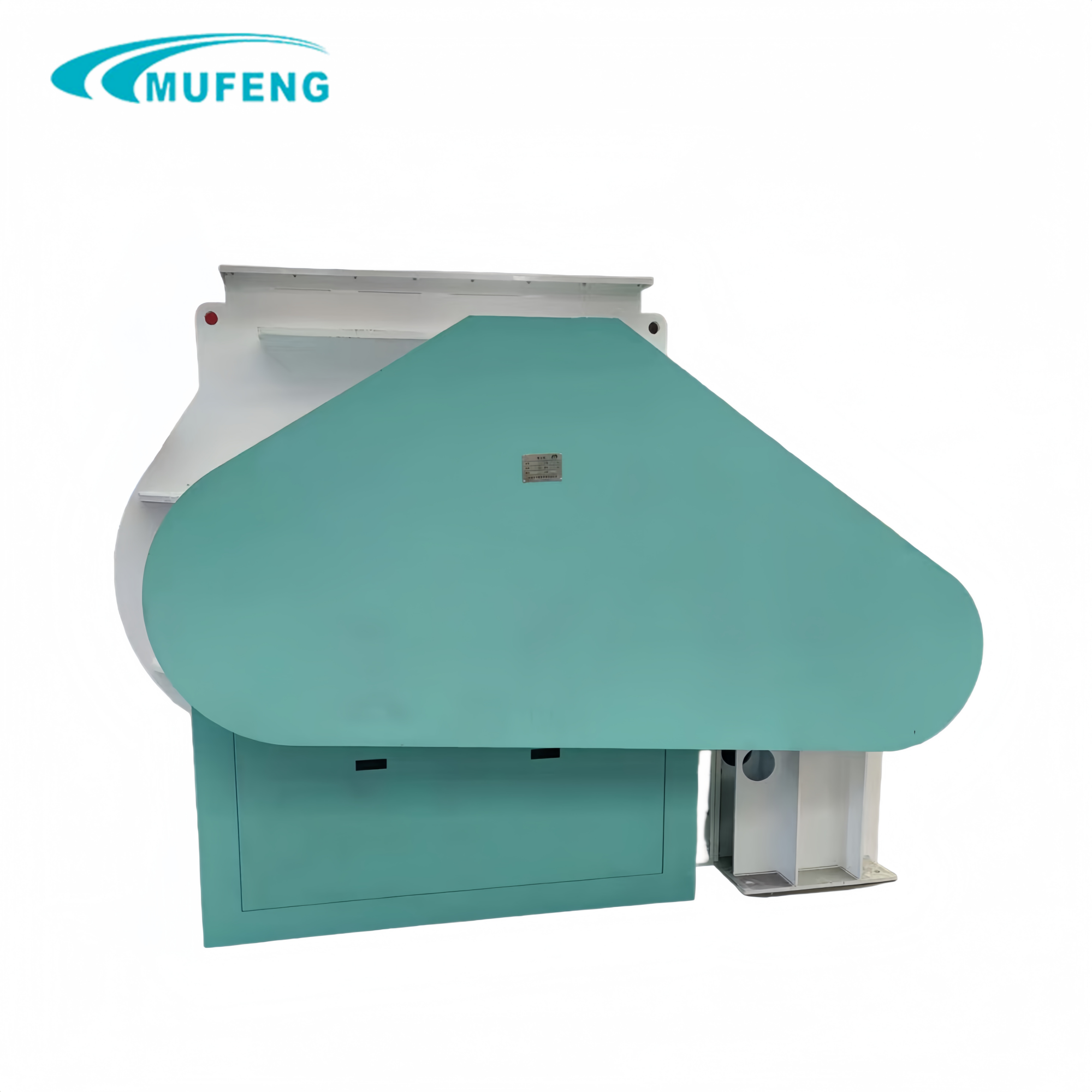

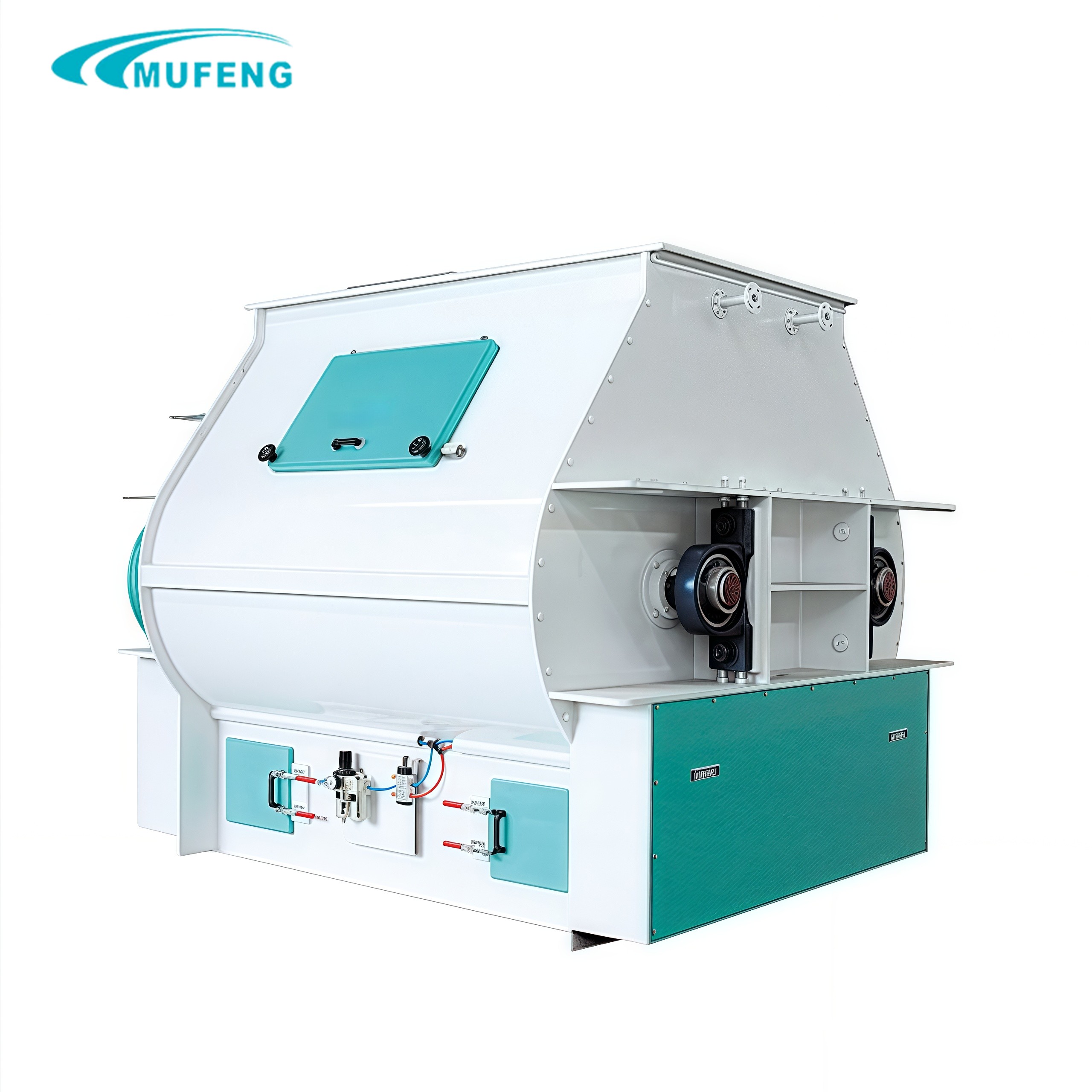

Twin Shaft Paddle Mixer

Low speed operation, efficient mixing;
Long term mixing does not produce segregation, and various liquids can be added;

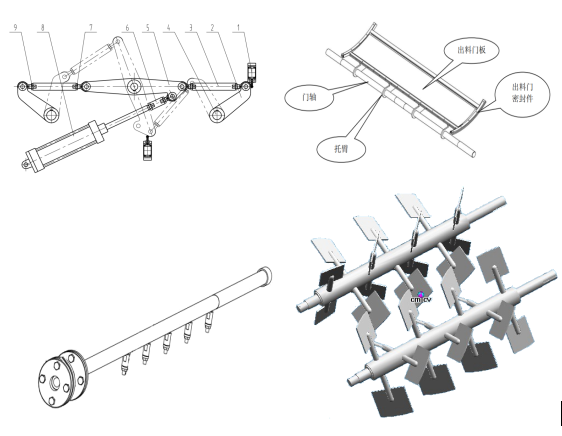

Full length double door discharge, fast discharge, minimal residue;
The rubber airbag of the discharge door is sealed to ensure no leakage of materials;

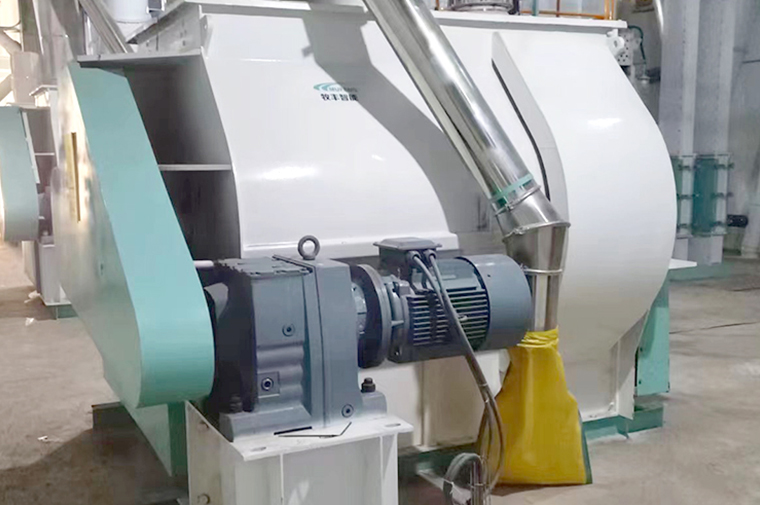

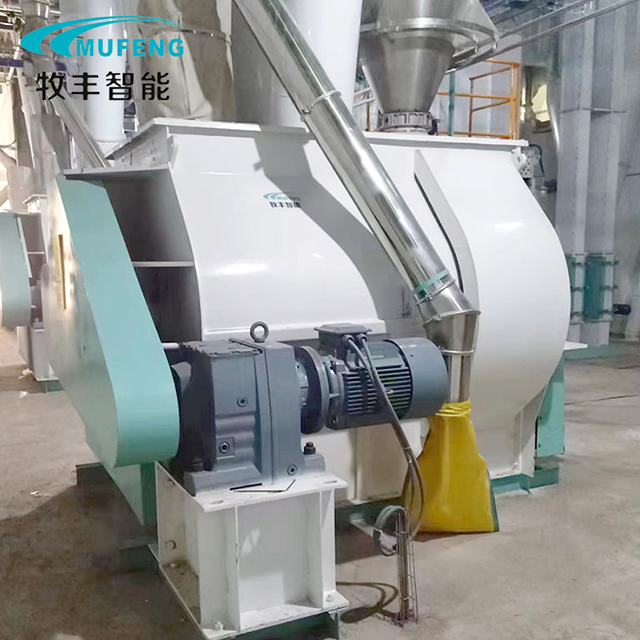

The three row chain transmission mechanism or gear reducer is directly connected for smooth and reliable rotation;
Adopting a conical sleeve sprocket for quick and convenient disassembly;

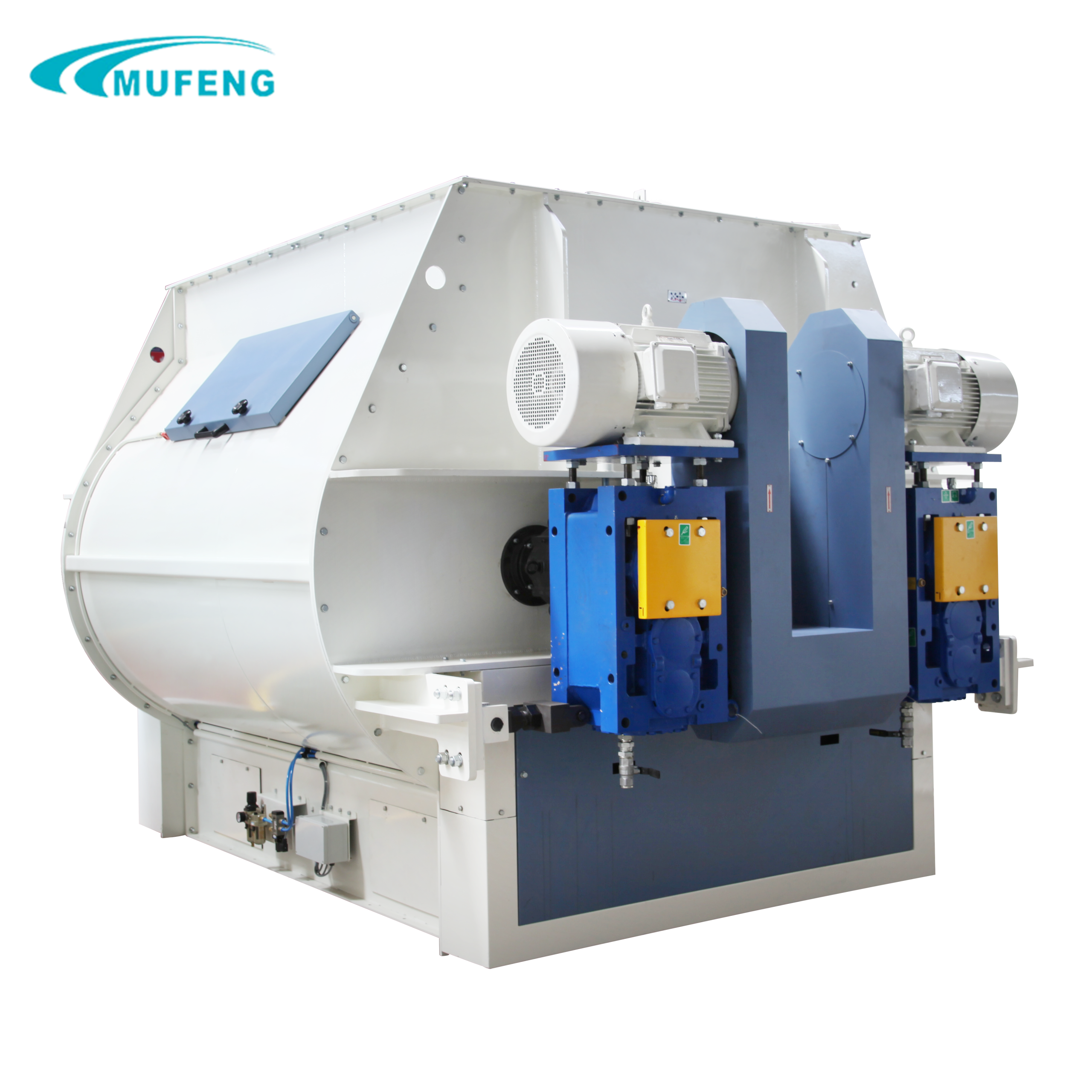

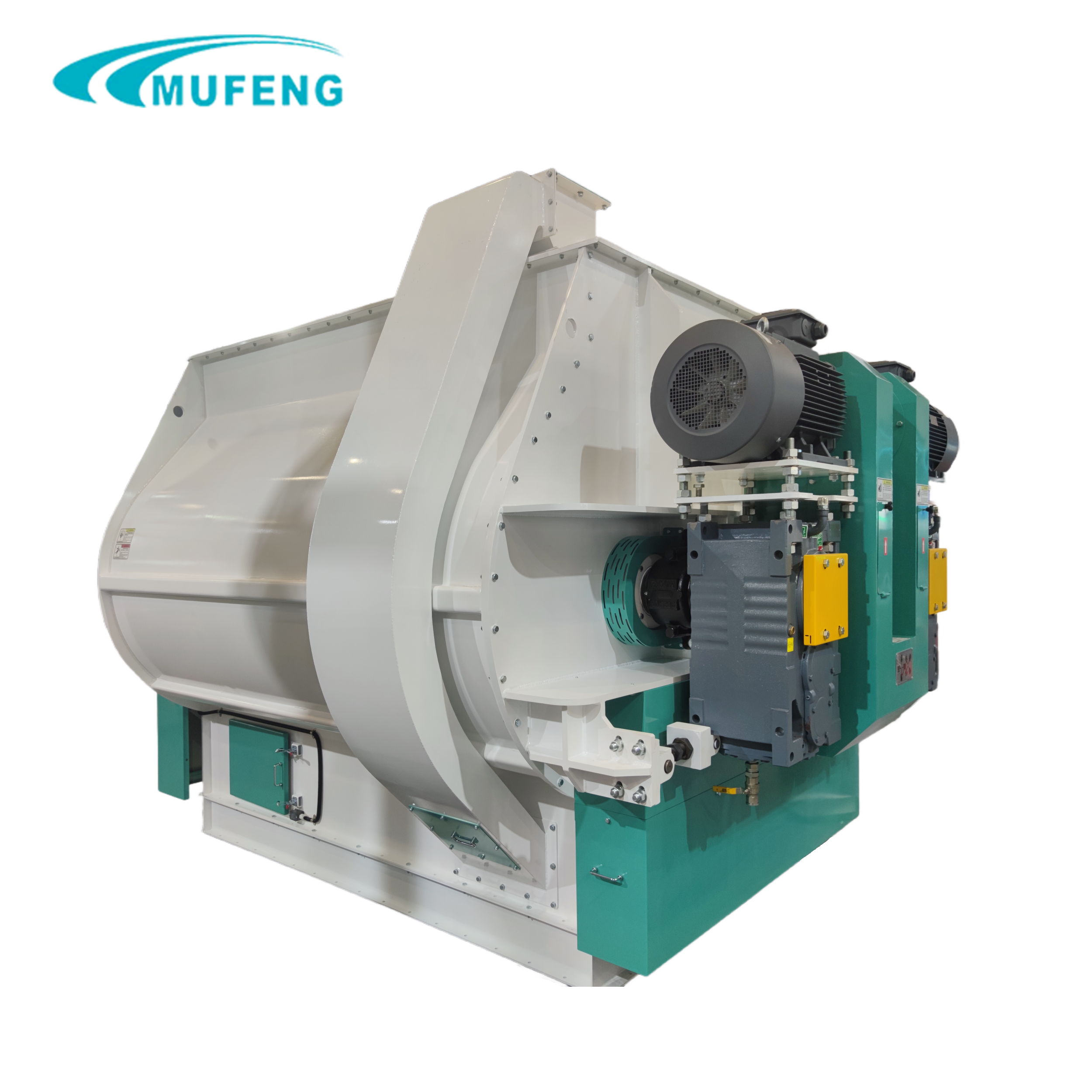

You can choose between a gear reducer direct transmission structure or a dual motor reducer transmission structure;
Widely applicable to compound feed factories, concentrated feed factories, chemical, food, flour and other industries.

Performance Fetures

1. Using Three rows of chain, Smooth operation, Low noise, Long life;

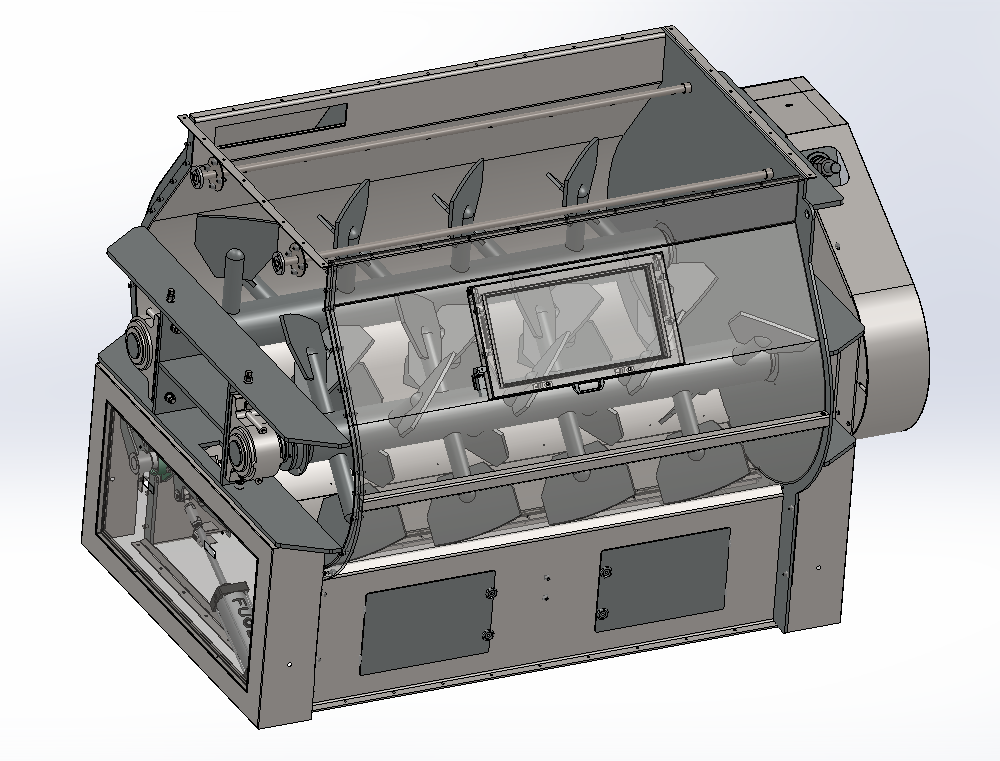

2. Bigger mixing chamber design, Bi-axial blade rotor, Good mixing effect;

3. With short mixing time (30-90S/batch), The mixed uniformity (CV≤5%);

4. Adopt big angle double door, Quick discharge, Less residue;

5. Special shaft end and door sealing structure make good sealing, ensure no leakage material;

6. It is widely used in a mixture of powder, granule, flake, block material of feed, food, chemical, pharmaceutical and other industries.

Technical Parameters

Model	HHSJ1	HHSJ2	HHSJ4	HHSJ6	HHSJ8	HHSJ10	HHSJ12
Volume (m³)	1	2	4	6	8	10	12
Mixing Quantity (kg)	500	1000	2000	3000	4000	5000	6000
Time/Batch (s)	60~180	60~180	60~180	60~180	60~180	60~180	60~180
Mixed Uniformity (%)	≥95	≥95	≥95	≥95	≥95	≥95	≥95
Power (kw)	11	18.5	30	37/45	45/55	55/75	75

Raw Materials and Final Products

It is widely used in material mixing in compound feed factories, concentrated feed factories and chemical, food, flour and other industries etc.

Bean

Corn

Livestock feed pellet

Turnkey successful projects

Always Create Client Value

Successful case of broiler pellet feed production line project with annual output of 180,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of pellet feed production line project with annual output of 120,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of additive premix production line project with annual output of 60,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 5T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of 10T/H biomass pellet production line project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons

Country

Tongliao City, Inner Mongolia

Capacity

90,000 tons/year

Application

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

FAQ

How should I choose a mixer?

The mixers produced by our company are divided into single-shaft paddle mixers and double-shaft paddle mixers. If you produce full-price materials and the output is greater than 2T/P, you can choose a double-shaft paddle mixer; if the output is less than 2T/P, you can choose a single-shaft paddle mixer. If you produce additive premixes, it is recommended to choose a stainless steel single-shaft paddle mixer.

What is the mixing uniformity of the mixer? How long does it take to achieve the best uniformity?

The mixing uniformity coefficient of the single-shaft paddle mixer and the double-shaft paddle mixer produced by our company can reach ≦5%, and the time to achieve mixing uniformity is about 90-120 seconds. Different materials will have differences, so different formulas need to test the time to achieve the best mixing uniformity.

What should I do if my mixer leaks from the door?

This problem is common in mixers. When this problem occurs, please first check whether there is material stuck on the mixer door. If there is, please clean it in time; then check whether the gaps around the mixer door are consistent. If the gap is too large, please adjust the door gap to meet the requirements; finally, check whether the sealing strips around the door are worn. If worn, please replace them in time.

What are the precautions for mixer maintenance?

The reducers equipped with our company's mixers are all hard-toothed reducers with a long service life. They need to be lubricated regularly, once a year; the rotor bearings and door bearings need to be greased once a month; and the sealing of the door should be checked regularly.
