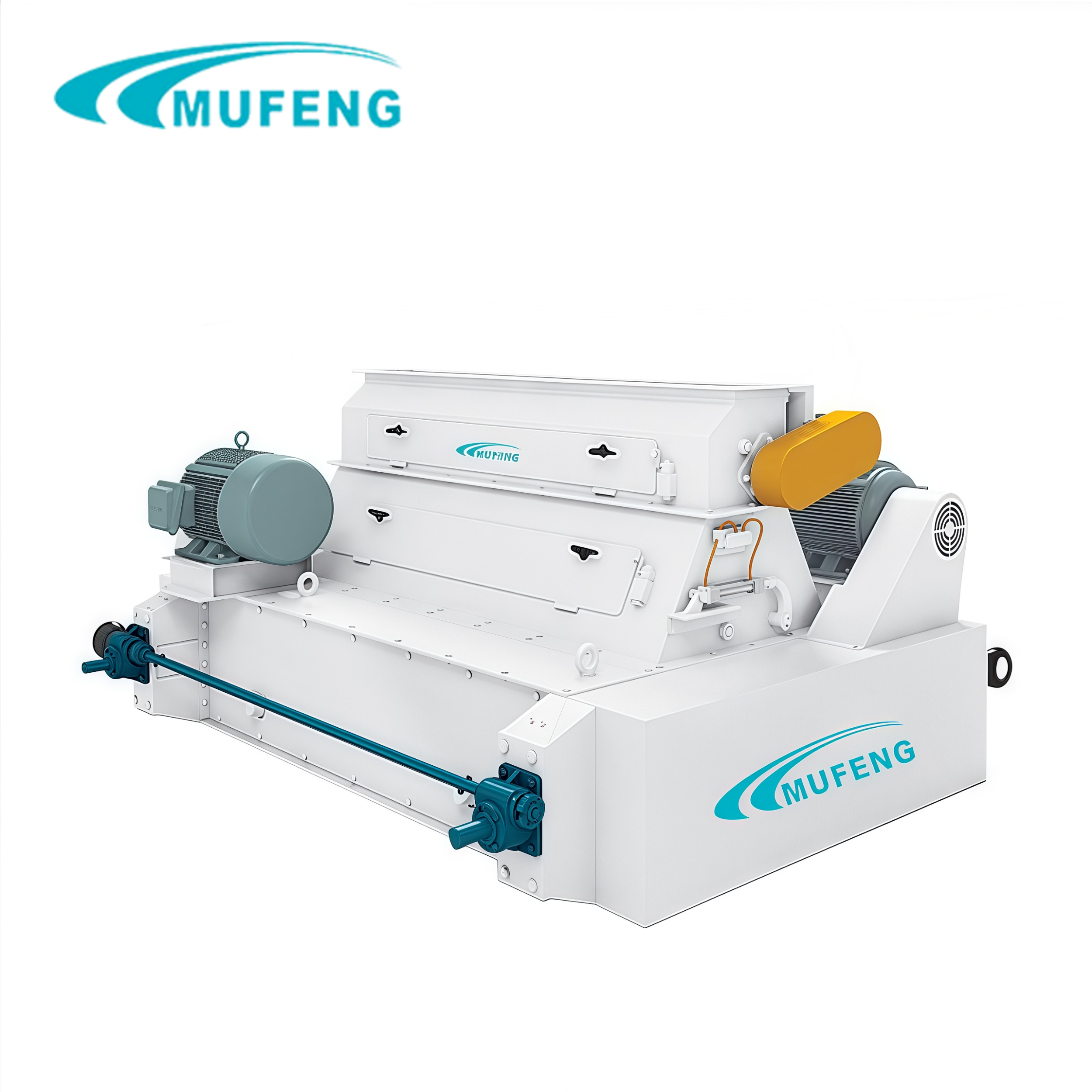

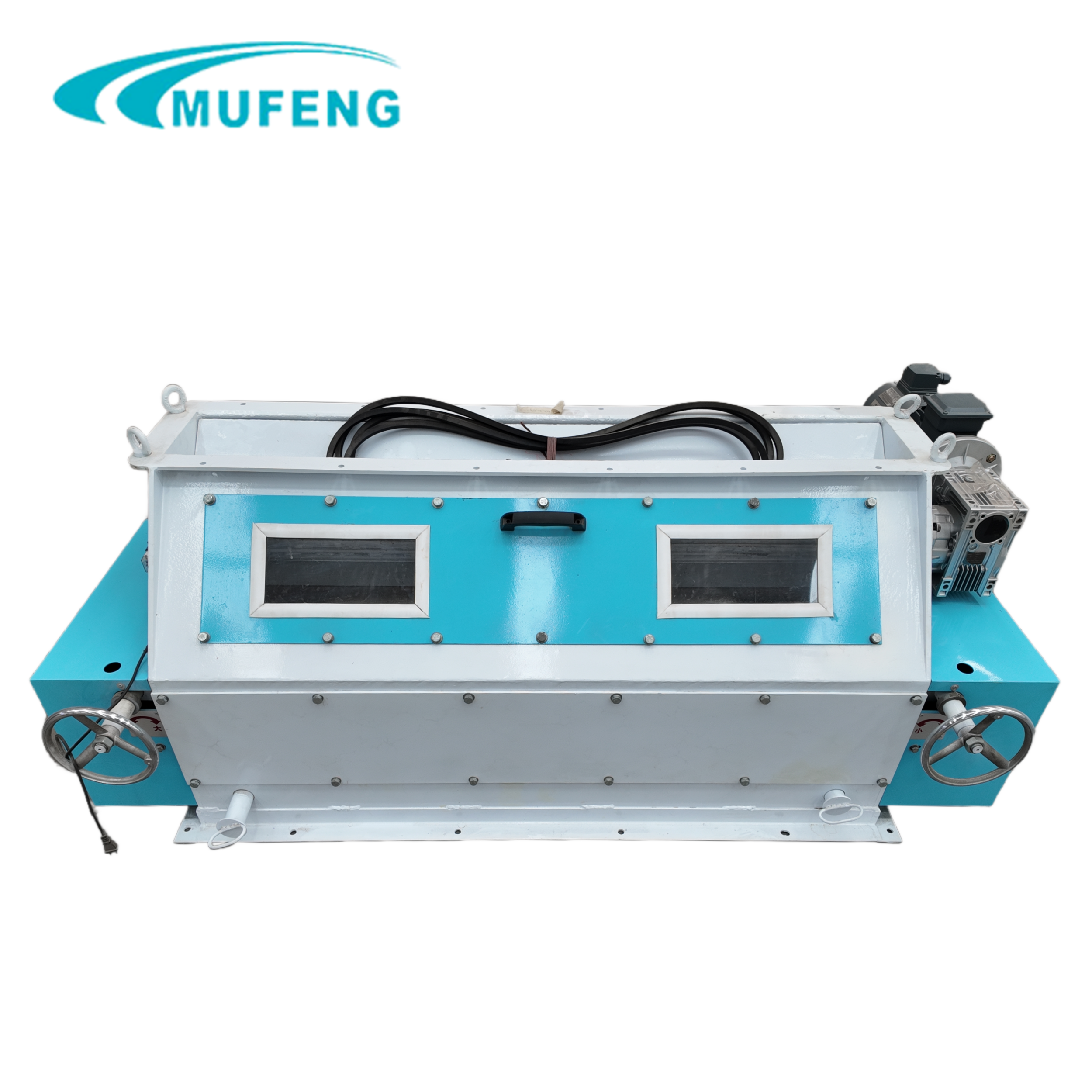

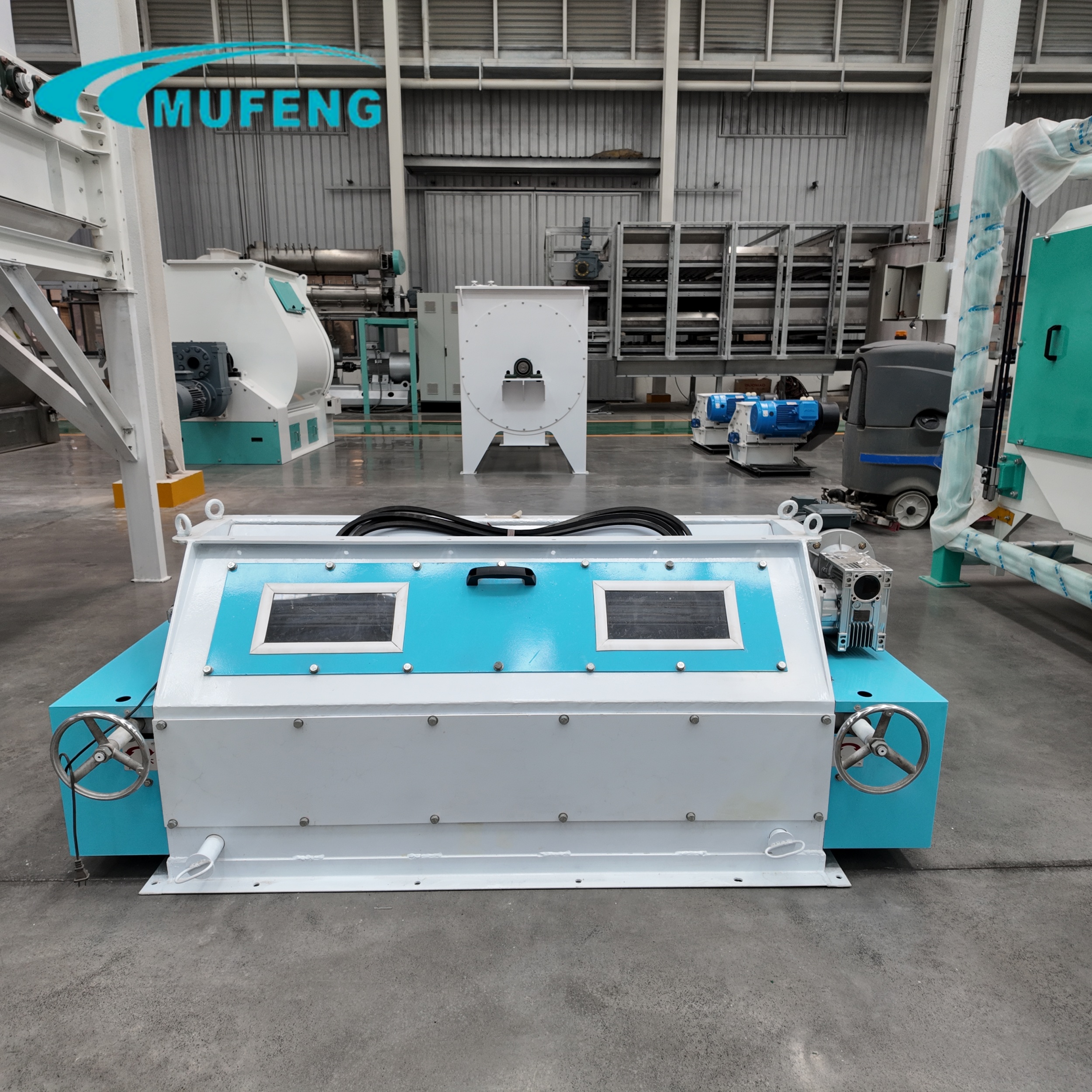

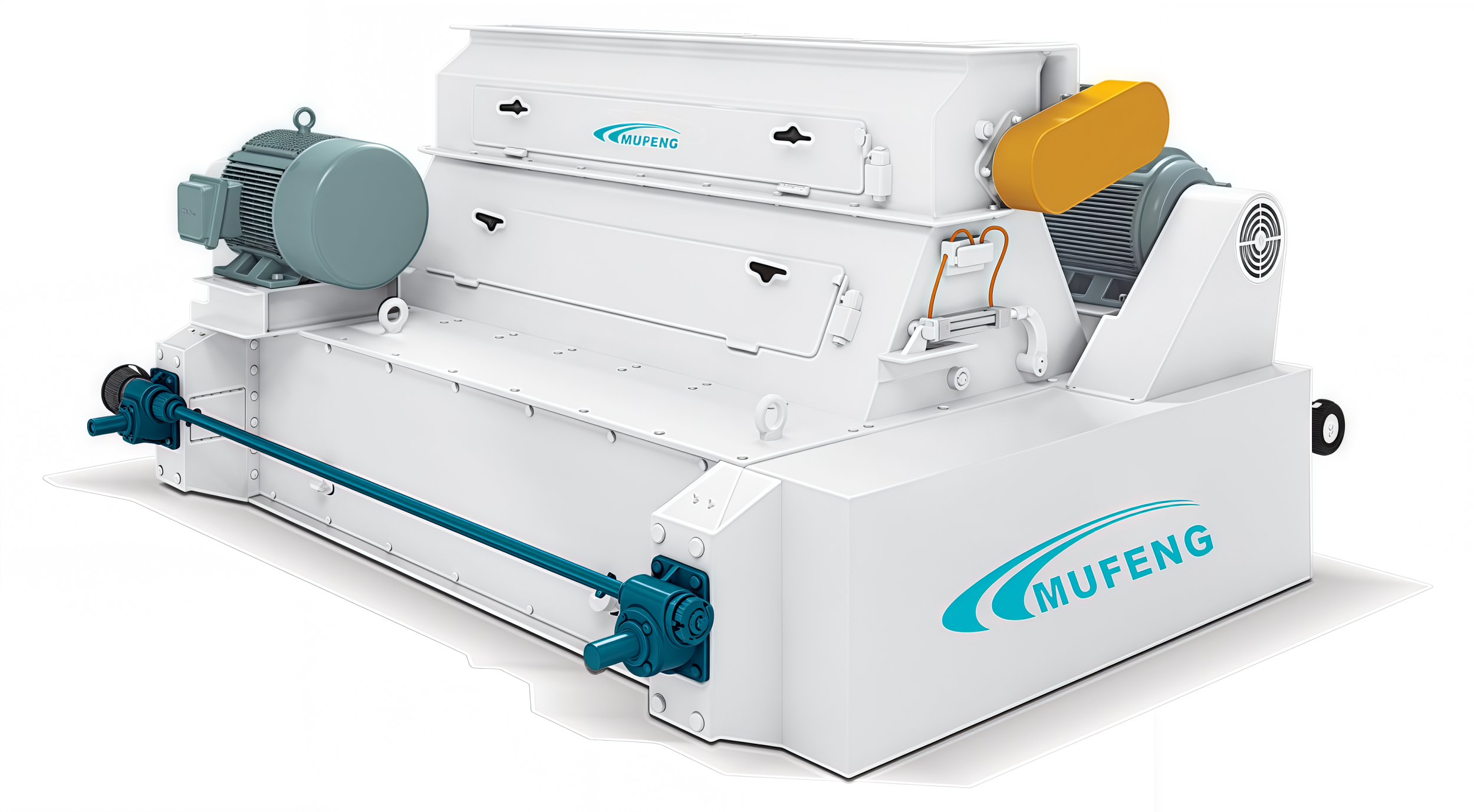

SSLG Series Feed Pellet Crumbler

It is a special equipment for breaking large particles into small particles. It can break various specifications of granular materials into particles of 0.6-1.5mm or 1-2.5mm.


Share
Performance Fetures
  1. It is a special equipment for breaking large particles into small particles. It can break various specifications of granular materials into particles of 0.6-1.5mm or 1-2.5mm.
  2. Compact structure, three-roller structure, frequency conversion control feeding roller crushing evenly, particle size adjustment is convenient and quick.
  3. The rollers implement differential rotation speed, and the pellets are squeezed, sheared, and torn between the two rollers, thereby achieving the ideal crushing effect.
  4. The unique feeding hopper and bypass device not only serve to level the material, but also serve as a bypass for materials that do not need to be crushed. During bypass, the machine can be stopped automatically through the travel switch.
  5. Adopting narrow V-belt transmission, the transmission is smooth, the noise is low, the work is reliable, and the operation is convenient.
Technical Parameters
 Model SSLG20×80 SSLG20×110 SSLG20×140 SSLG20×170 SSLG25×165 SSLG25×185
 Capacity (t/h) 2-3 3-5 8-10 10-12 15 20
 Power (kw) 5.5 7.5 11 11/15 11 15/18.5
Raw Materials and Final Products
Crusher is often used to crush pellet feed from large particles to small particles to suit the feeding of young animals. It can also be used to coarsely crush corn in laying hen feed.
Turnkey successful projects
Always Create Client Value
FAQ
What should I do if the crushing efficiency is low?
Check whether the teeth of the crushing rod are seriously worn. If so, re-draw the wire in time;
What should I do if the crushed particles are uneven in size?
Check whether the gaps on both sides of the crushing tube are consistent and adjust them to be consistent;
What is the reason for the high powder content in the crushed material?
It may be that the quality of the pellet feed is unqualified before crushing, such as low hardness or too coarse crushing fineness, or the selection of the crushing rod tooth shape is unreasonable.
