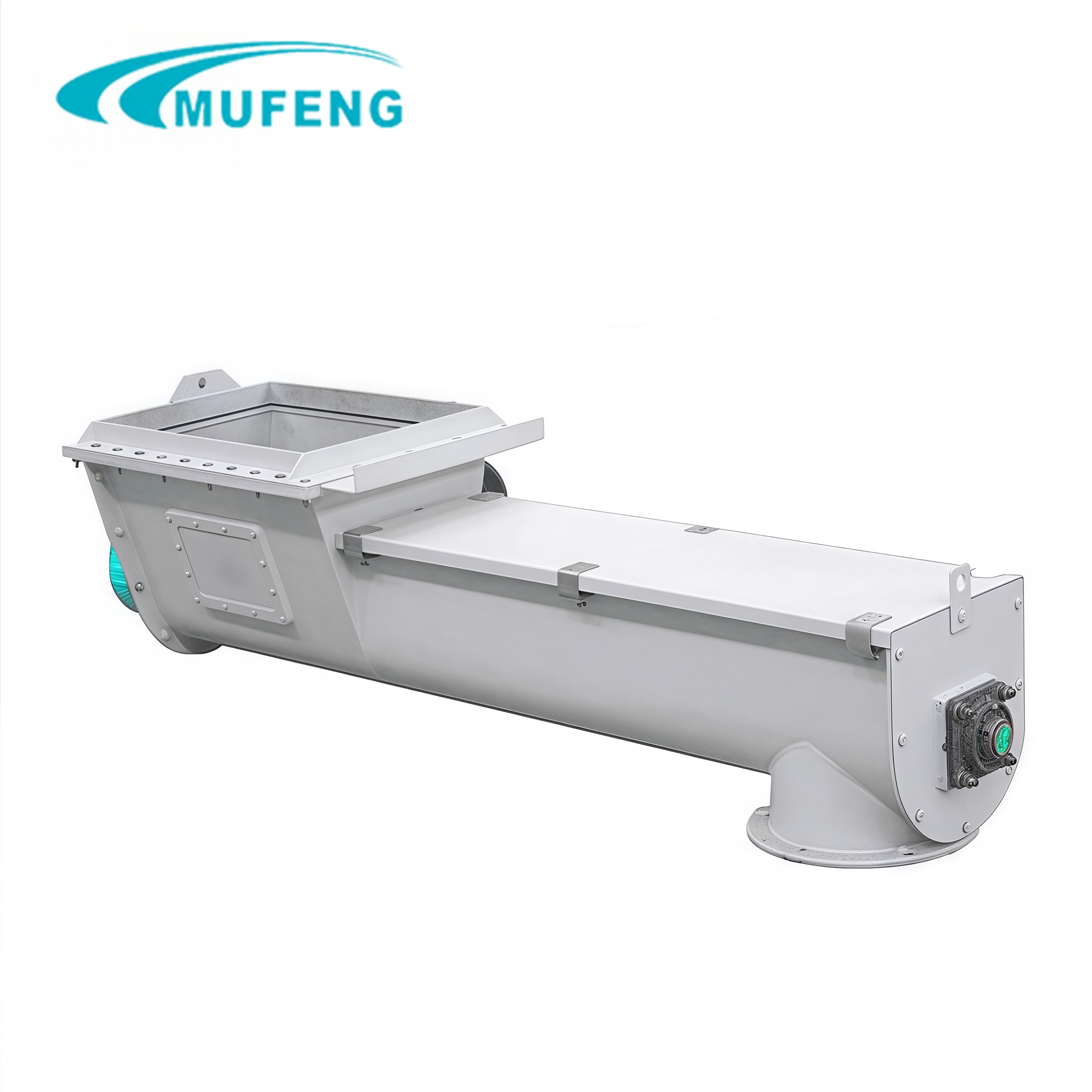

TGSU Screw Conveyor

1. Thickened spiral blades, long lifespan;
2. Precision machining of blades with small gaps and minimal residue;
3. Large conveying capacity and stable operation.


Quote Now
Send E-mail
Share
Screw conveyor
Performance Features

1. U-shaped or round body, lower residue.
2. Hydraulically pressed spiral blades have high precision, stable transportation and low energy consumption;
3. The machine head and power transmission part are integrated design, which is convenient for transportation and on-site installation.
4. Gear reducer, low failure rate and long life;
5. Quick-open access cover for easy cleaning;
6. Shaft end packing seal, good sealing performance and no material leakage.

Technical Parameters
Model TLSU160 TLSU200 TLSU250 TLSU320 TLSU400
Blade diameter/mm 160 200 250 320 400
Blade thickness/mm 3 3 4 5 6
Spindle speed/RPM 130 130 130 130 130
Maximum output/t/h 10 20 40 90 130
Body thickness/mm 3 3 3 3 4
Gap between blade and body/mm 4 4 4 5 5
Raw Materials and Final Products
Screw Conveyors can be used for horizontal, inclined, and vertical conveying, with a wide range of applications. They can be used for conveying powdered or granular materials, with high output and stable operation.
Bean
Corn
Livestock feed pellet
Make pig feed pellet
Pellets
Sorghum
Wheat
Turnkey successful projects
Always Create Client Value
Successful Case of 2T/H Pet Food Production Line Project
Country
Yantai, Shandong
Capacity
2 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of pellet feed production line project with annual output of 120,000 tons
Country
Zhengzhou, Henan
Capacity
120,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful Case of 5T/H Pet Food Production Line Project
Country
Henan
Capacity
5 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of broiler pellet feed production line project with annual output of 180,000 tons
Country
Henan
Capacity
180,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of aquatic feed production line project with annual output of 100,000 tons
Country
Henan
Capacity
100,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons
Country
Tongliao City, Inner Mongolia
Capacity
90,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
FAQ
How to ensure the levelness of the shaft when the length of the screw conveyor is too long?
Suspension bearings can be added at regular intervals to ensure that the shaft is level and operates stably without rubbing against the housing;
How to deal with material leakage at the shaft end of a screw conveyor?
The shaft end generally adopts a disc root sealing structure, which can be tightened or replaced with a disc root seal.
