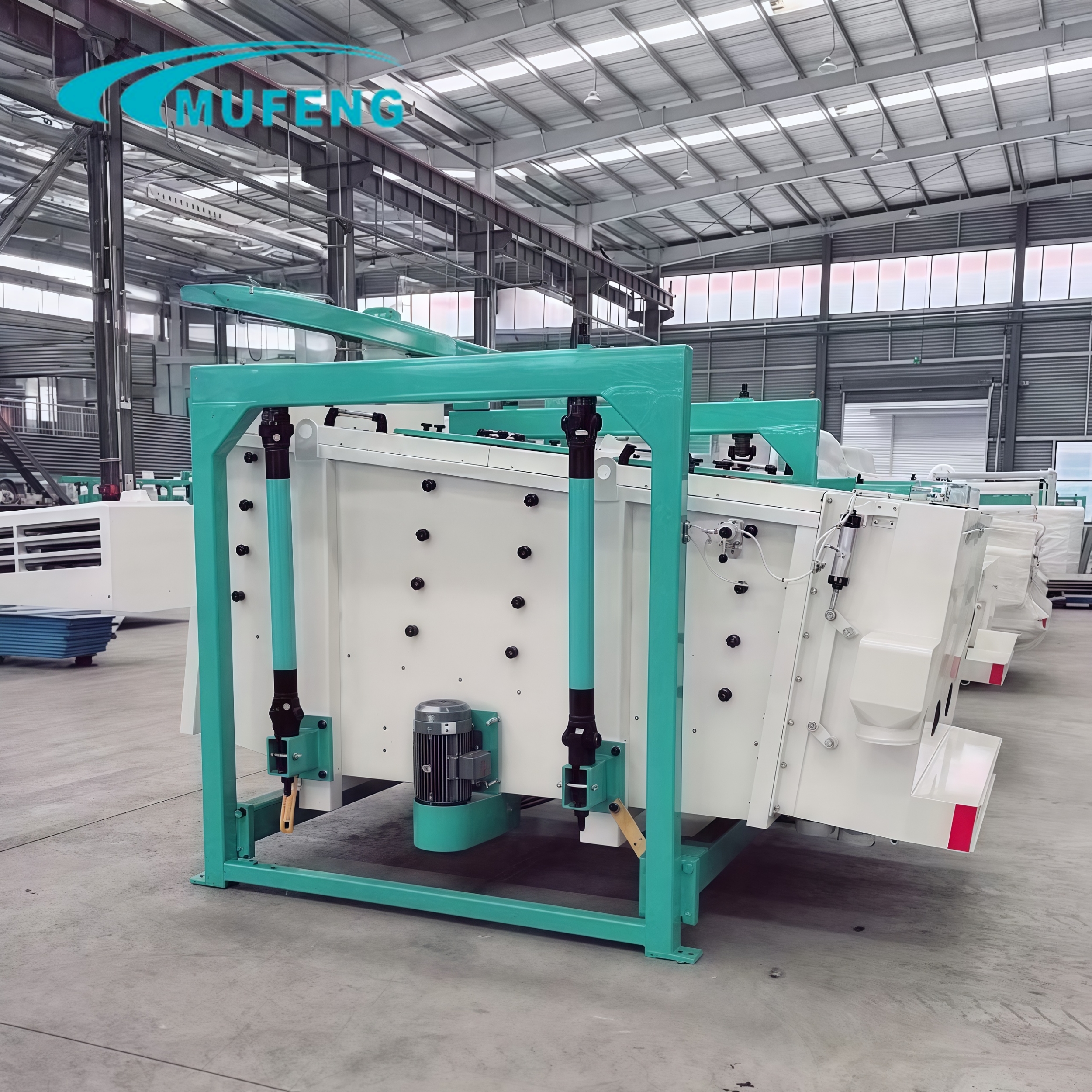

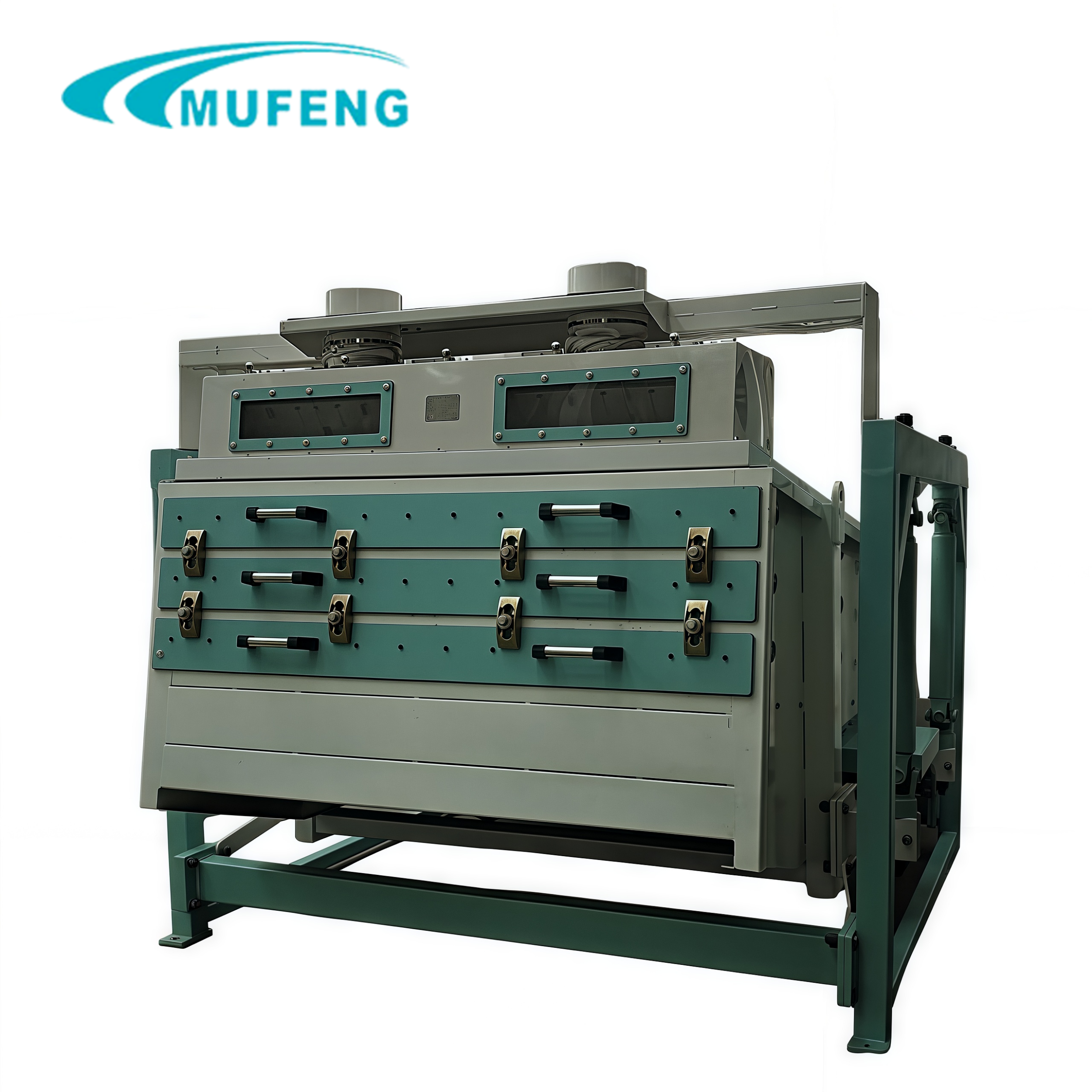

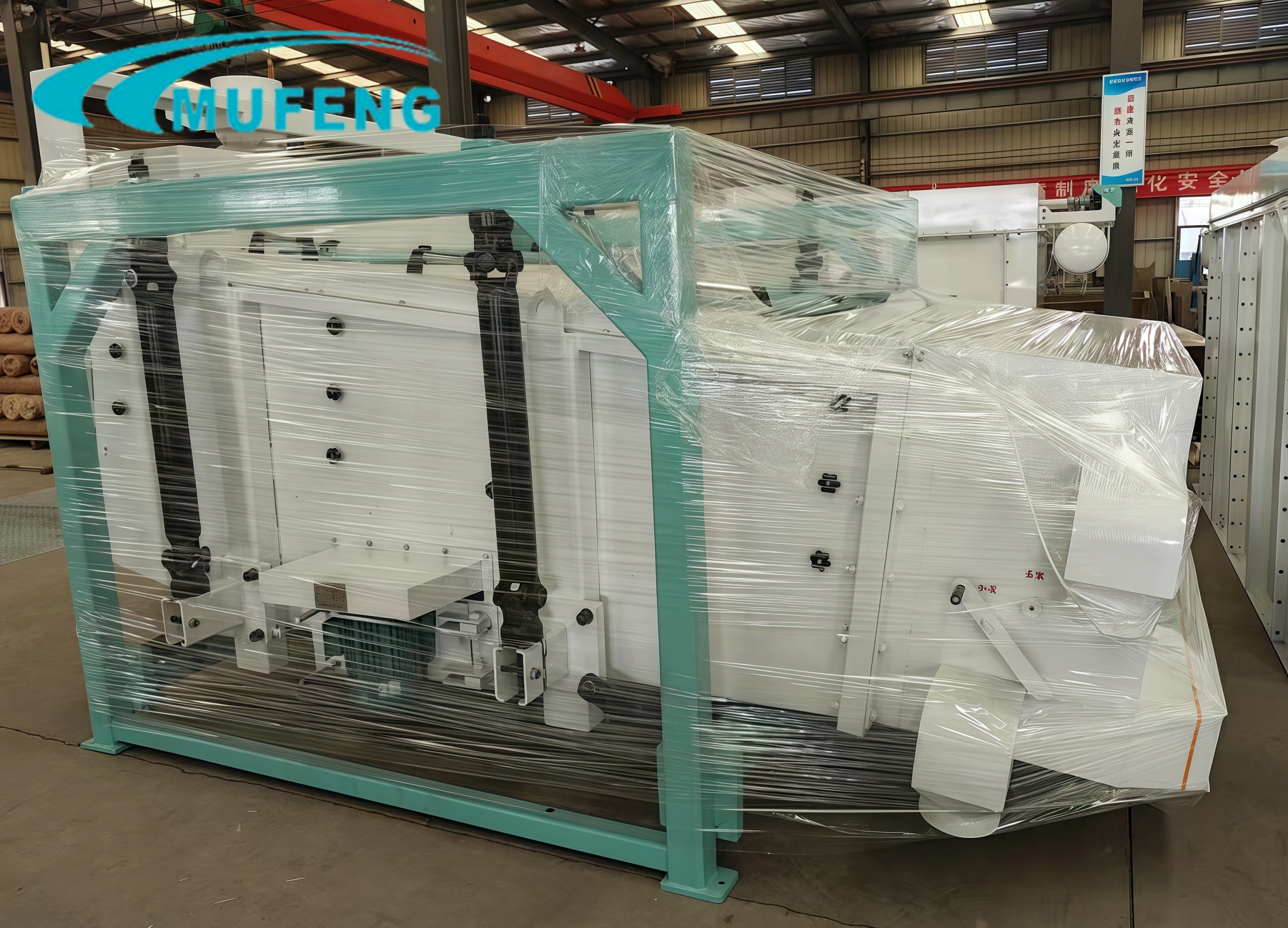

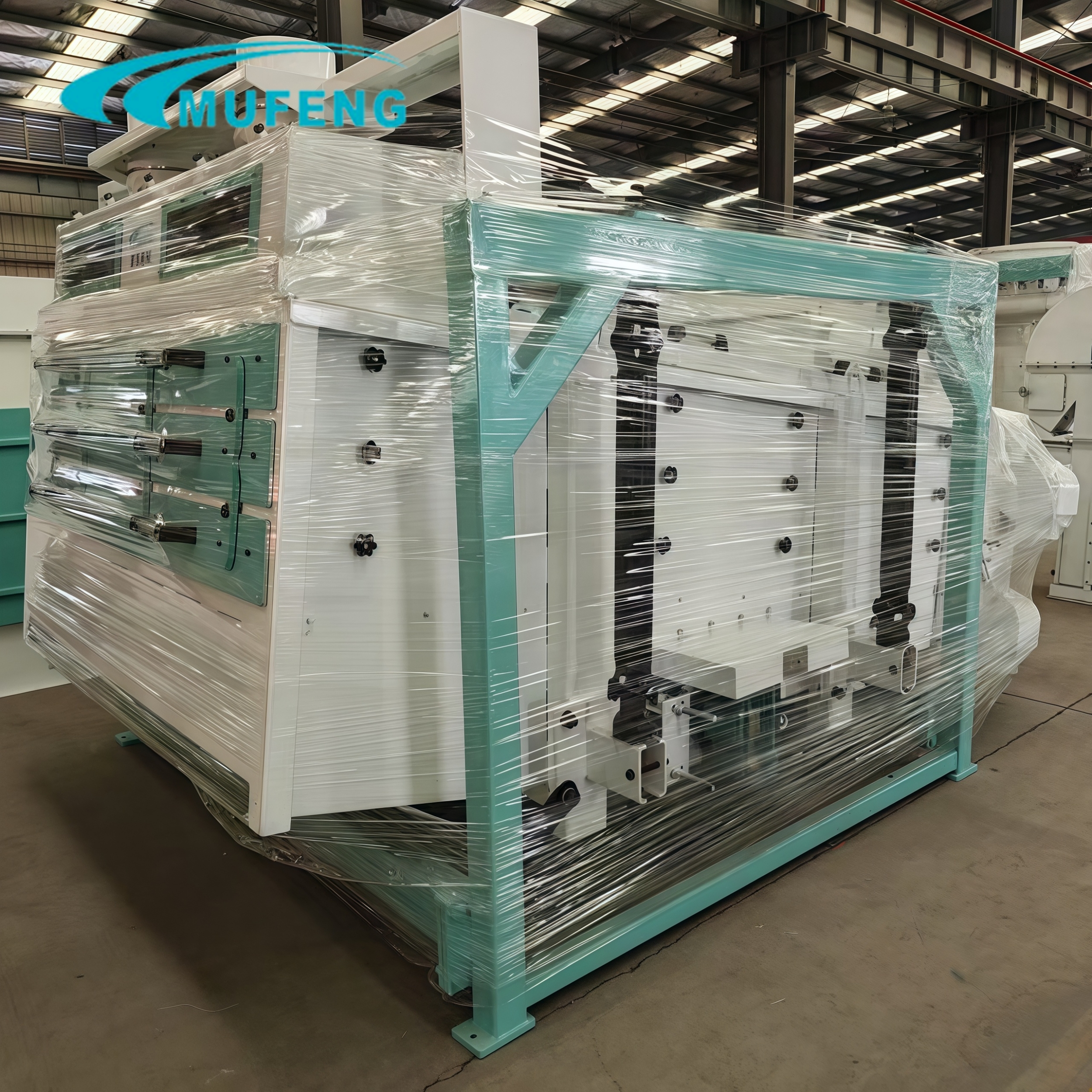

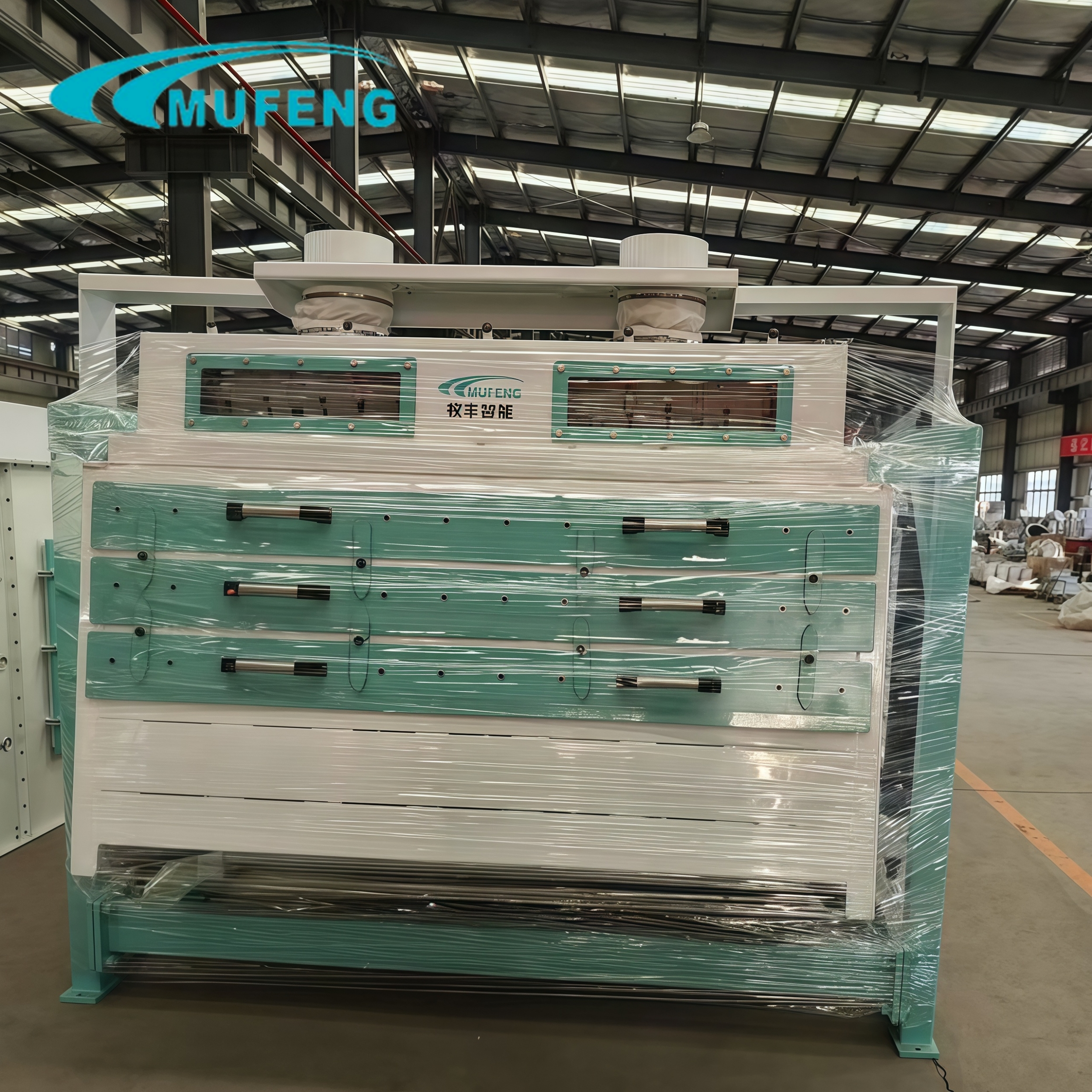

AHXZS high-efficiency rotary vibrating screen is the latest high-tech product developed by our company. It is mainly used to screen and separate large, medium, small and light debris in grain. Can be connected to vertical suction ducts and circulating air separators. It is widely used for particle material separation in rice milling, flour milling, oil making, feed, food and chemical industries.
| Specifications and models | AHXZS150x250 | AHXZS200x250 | AHXZS200x360 | AHXZS250x360 |
| First clearing wheat processing capacity (t/h) ( mesh φ10-φ12) |
40-60 | 80-100 | 100-120 | 120-150 |
| Sieve and accumulate (m) | 7.5 | 10 | 14.4 | 18 |
| Rotating speed (r/min) | 320 | 320 | 320 | 320 |
| Power (kw) | 3 | 4 | 5.5 | 5.5 |
| Machine weight (kg) | 2800 | 3200 | 4000 | 5000 |
| Dimensions (LxWxH) | 2980x2175x1855 | 2988x2705x2105 | 4040x2605x2205 | 4040x3105x2205 |
