PHYL Series Raw Material Extruder

MUFENG PHYE260 raw material puffing machine is specially used for puffing high-starch raw materials, especially suitable for puffing high-mature or low-mature puffed corn; this puffing equipment can also be used for puffing wheat and puffed rice bran.

Quote Now

Send E-mail

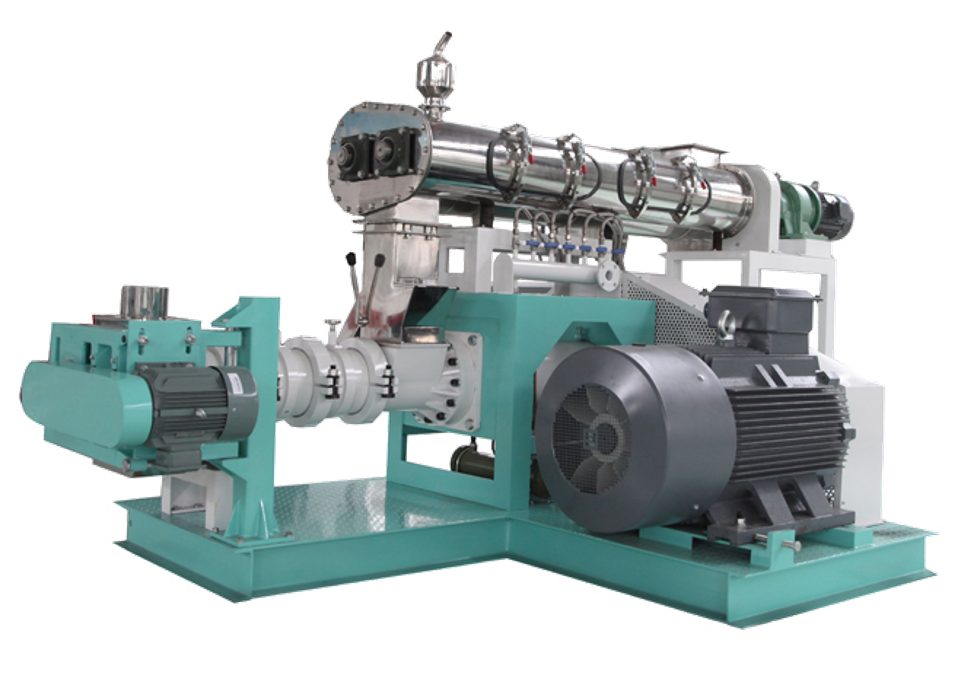

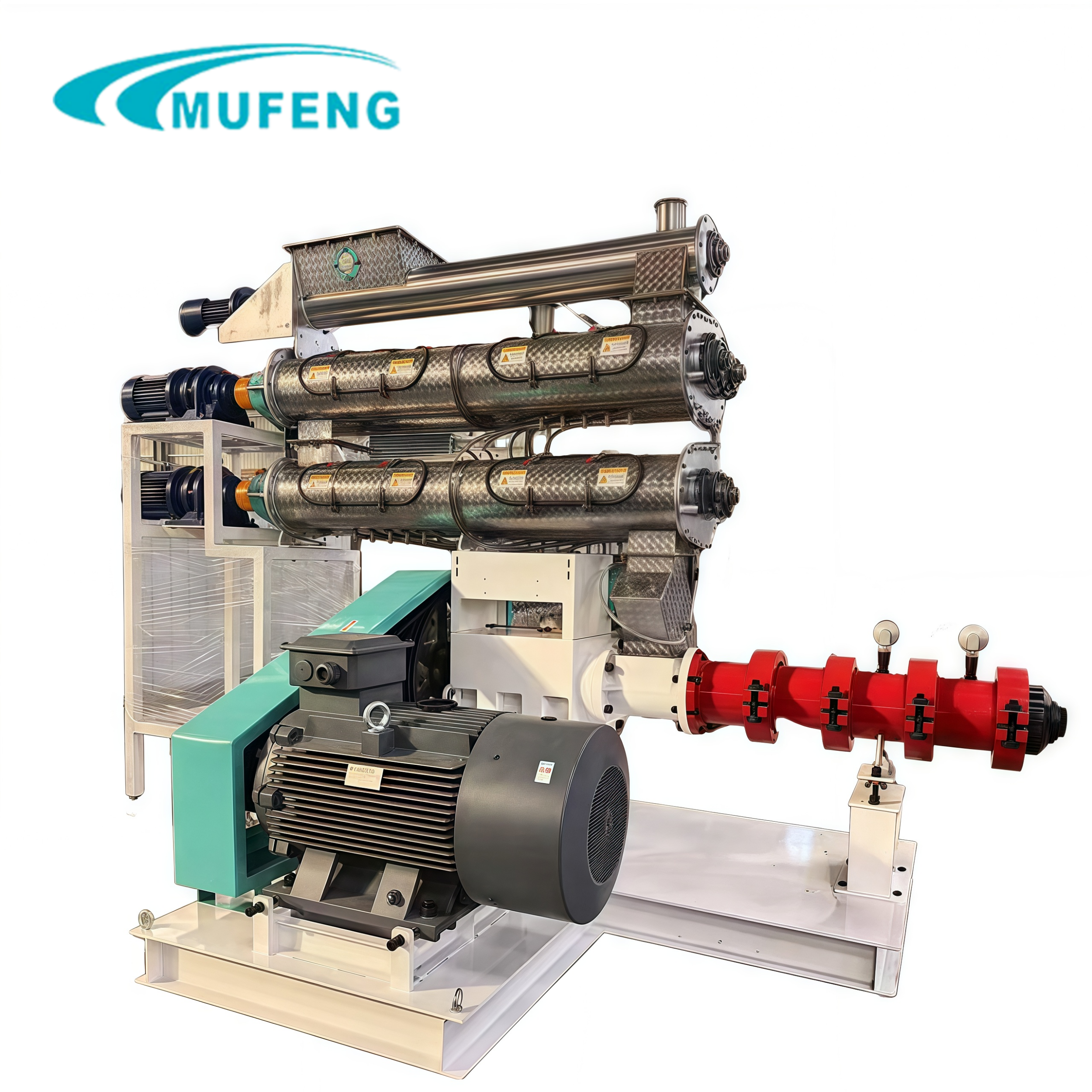

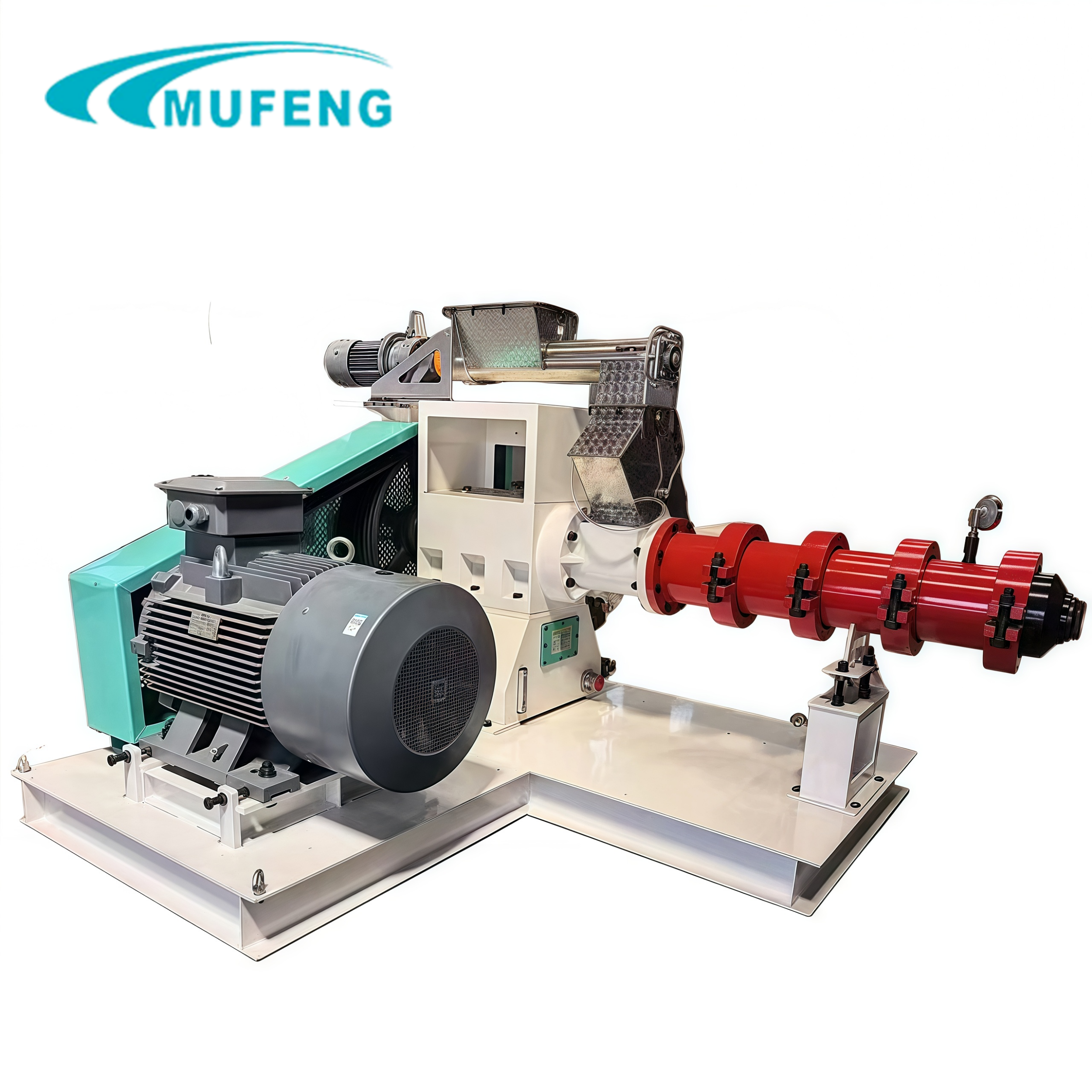

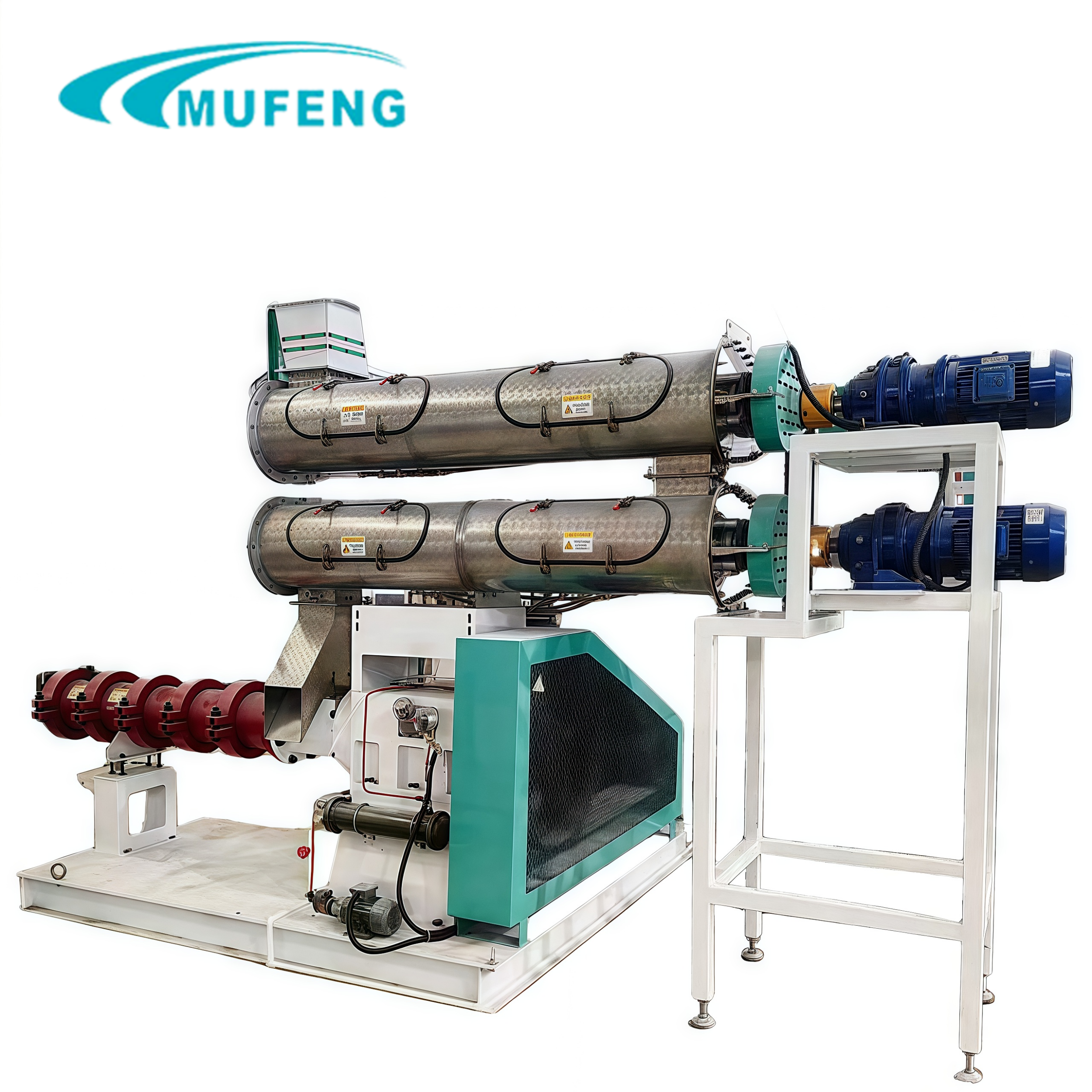

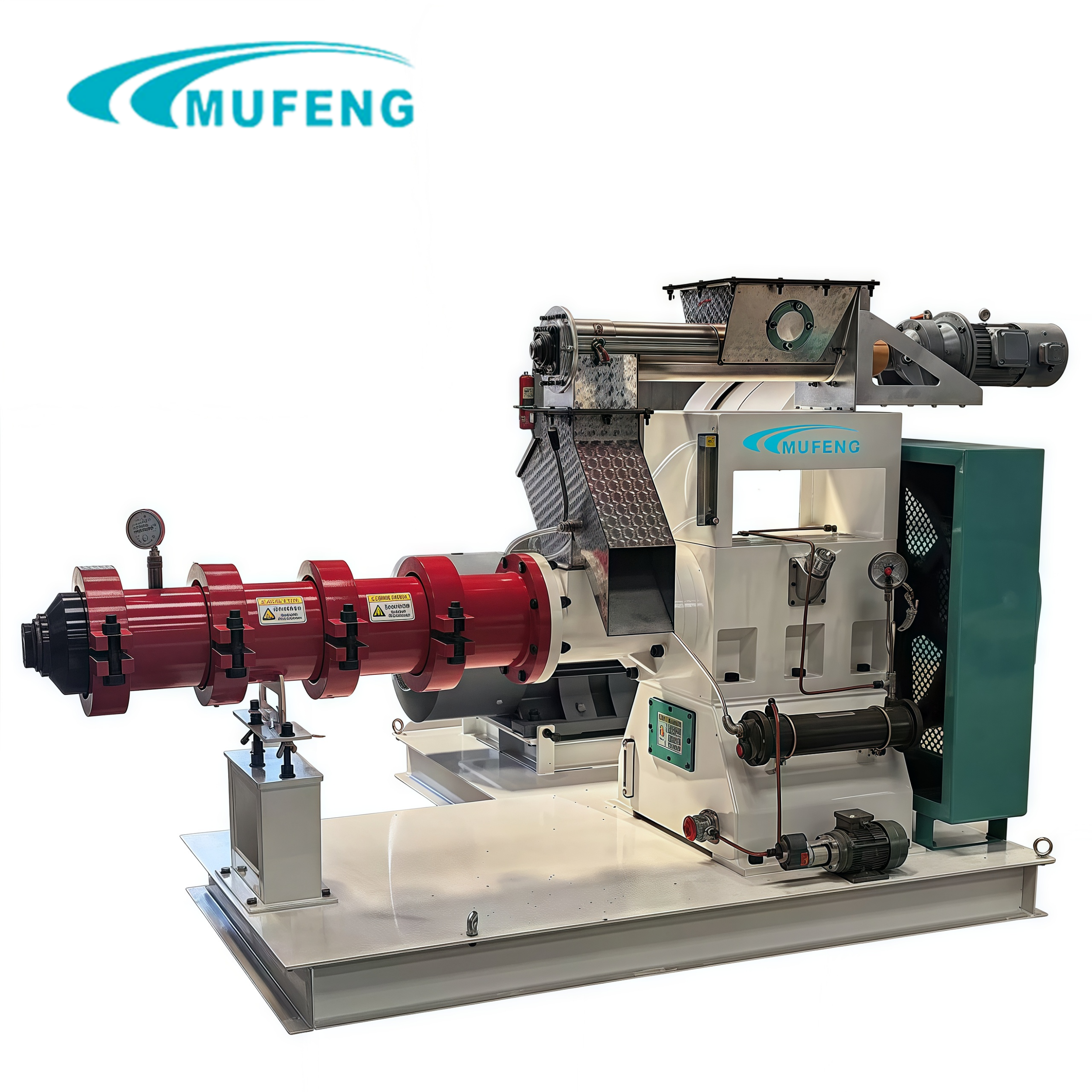

PHYE raw material extruder

A special extruder developed for processing high-starch raw materials, which has the advantage of high output and can be used to extrud corn, rice, ruminant feed and other materials.
High output, low power consumption. PHYE260 raw material extruder (250kW) extruded corn output is up to 4.2 t/h.
The power consumption per ton of material is only 55~56 kilowatt-hours, which is effectively reduced by 21% compared to the same period of other models at home and abroad.
The double column beam device and suspended cutting device adopt support slide rails, which are easy to operate and significantly improve production efficiency.
Produce high-quality, safe feed. It can sterilize, detoxify, mature, improve quality and increase digestion and absorption rate, while avoiding cross-contamination in the entire process.

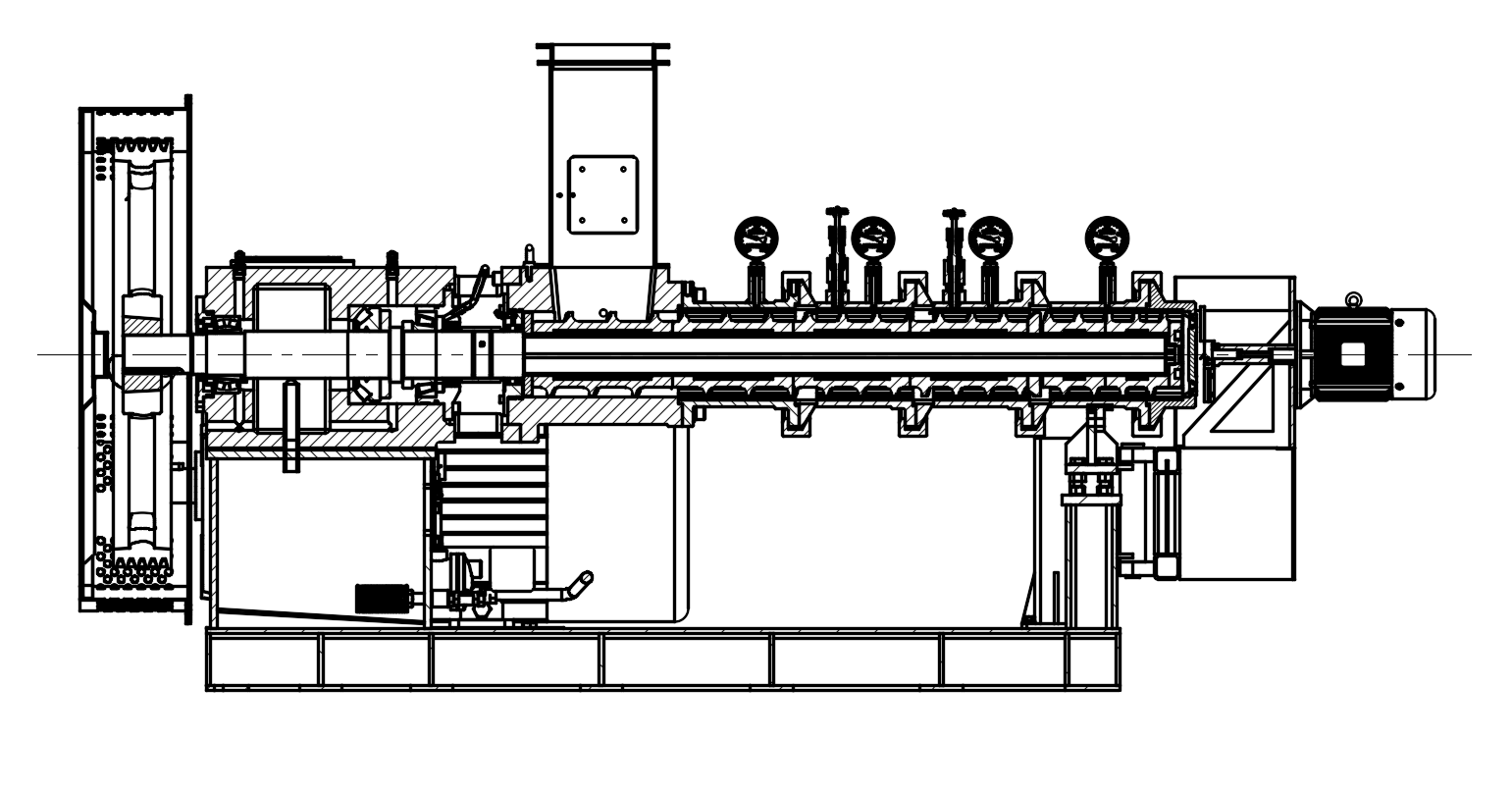

It adopts three-bearing arrangement design and circulates thin oil lubrication. This ensures the stability of equipment operation and the service life of bearings.

Performance Fetures

High yield, low power consumption

A special extruder developed for processing high-starch raw materials, with high yield advantages, can be used for extruding corn, rice and other materials;
A special extruder developed for processing high-oil raw materials, equipped with a dual-shaft differential conditioner, can be used for extruding soybeans, flax seeds, etc., with high yield and good maturation effect;
The special extruder for suckling pig feed is also called Shuhua machine. It is equipped with a double-axis differential conditioner, which can expand suckling pig feed, with high output and high starch gelatinization degree, which can effectively solve the problem of diarrhea in piglets and improve the absorption and digestion rate;
It can sterilize, detoxify, mature, improve quality and improve digestion and absorption rate, while avoiding cross contamination of the entire process;
It adopts a three-bearing arrangement design and circulating thin oil lubrication. It ensures the stability of equipment operation and the service life of bearings;
Pneumatic bypass, equipped with overload protection program, pneumatic bypass automatic discharge when the load is too high to prevent machine blockage.

Technical Parameters

Model	Power (kw)	Screw Diameter (mm)	Capacity (t/h) Puffed Soybeans	Capacity (t/h) Puffed Corn	Capacity (t/h) Puffed Piglet Feed
PHYE260	250	260	8~10	2~4	8~12
PHYE200	160	200	3.0~5.0	1.5~2	4~6
PHYE160	110	160	2~3	0.8~1.2	3~5
PHYE110	75	110	1~2	0.4~0.6	1~2

Raw Materials and Final Products

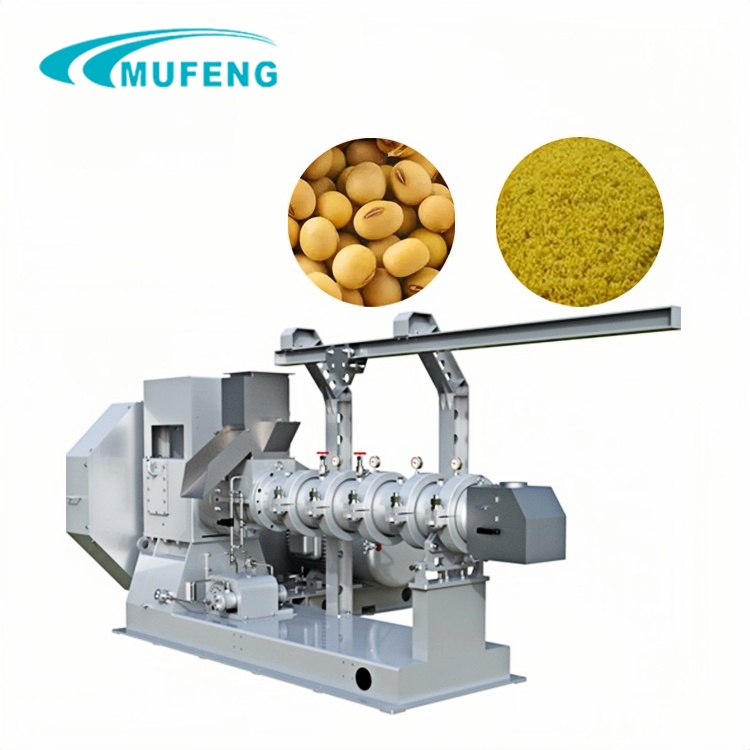

The Raw Material Extruder is specially used for puffing high-starch raw materials or oil crops, especially for puffing high-maturity or low-maturity puffed corn; the puffing equipment can also be used for puffing wheat, puffed rice bran, puffed soybeans, puffed flax seeds, etc.

Bean

Corn

Livestock feed pellet

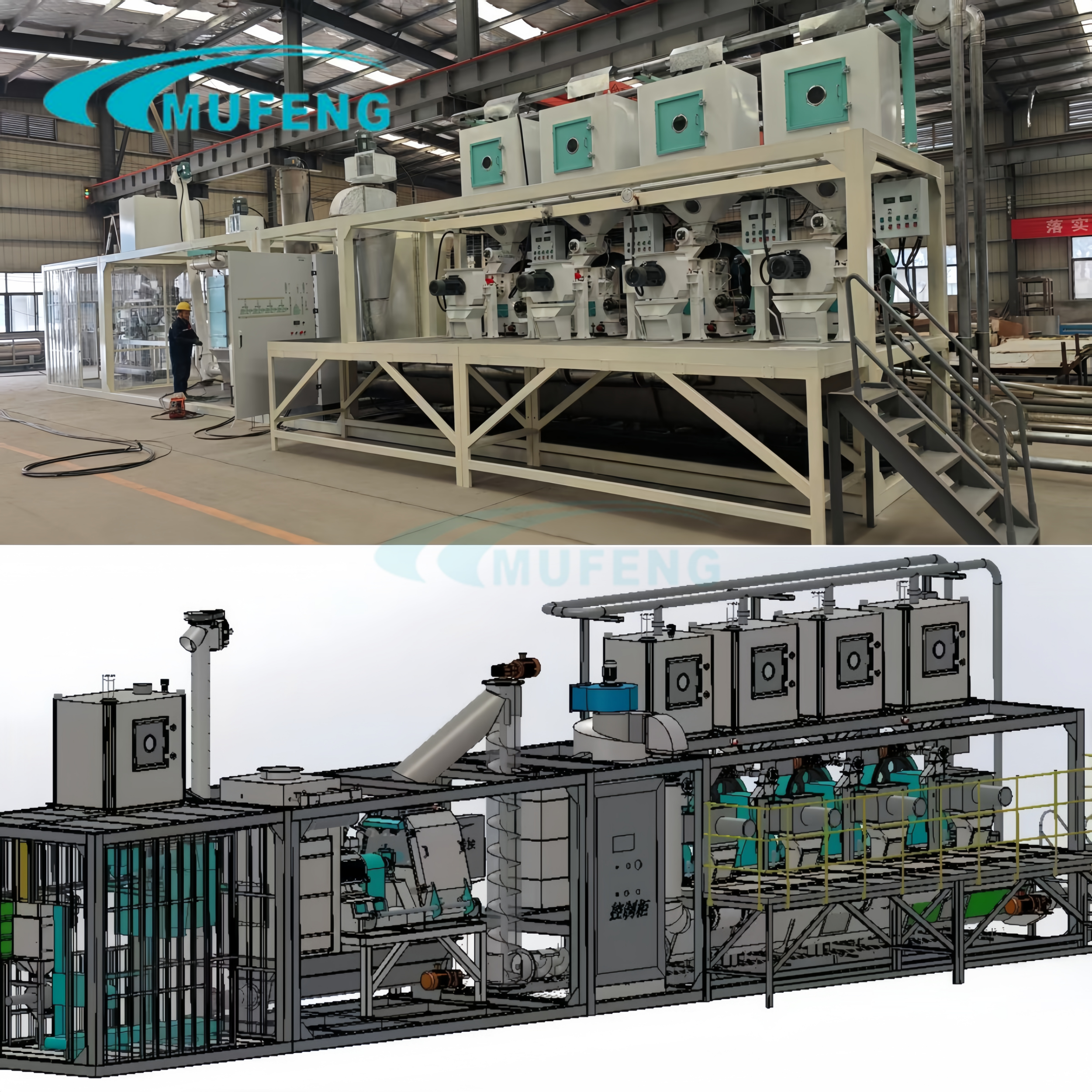

Turnkey successful projects

Always Create Client Value

Successful case of broiler pellet feed production line project with annual output of 180,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 5T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of aquatic feed production line project with annual output of 100,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of aquatic feed production line project with annual output of 420,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of 10T/H biomass pellet production line project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons

Country

Tongliao City, Inner Mongolia

Capacity

90,000 tons/year

Application

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

FAQ

What are the benefits of puffed soybeans? What indicators need to be checked?

Soybeans contain urease and anti-nutritional factors. Many animals are prone to diarrhea and indigestion after eating raw soybeans. The puffing process can degrade urease activity and destroy anti-nutritional factors through high temperature and high pressure, and can improve digestion and absorption rate. Puffed soybeans can be directly fed to animals after mixing with other feed raw materials;
Puffed soybeans need to check urease activity and protein solubility rate to evaluate the puffing effect;

What are the benefits of puffed corn?

After corn is puffed, the starch gelatinization degree is greatly improved, the starch digestibility is improved, and the energy value can be increased; puffed corn is often used in young animal feeds such as suckling piglet feed and chicken feed, which can improve the digestibility of young animal feed and reduce the occurrence of diarrhea;

What other products can this extruder puff?

Single screw extruder can also process flaxseed, cottonseed meal, puffed urea, etc.; the raw materials are puffed to improve the utilization value of raw materials.
