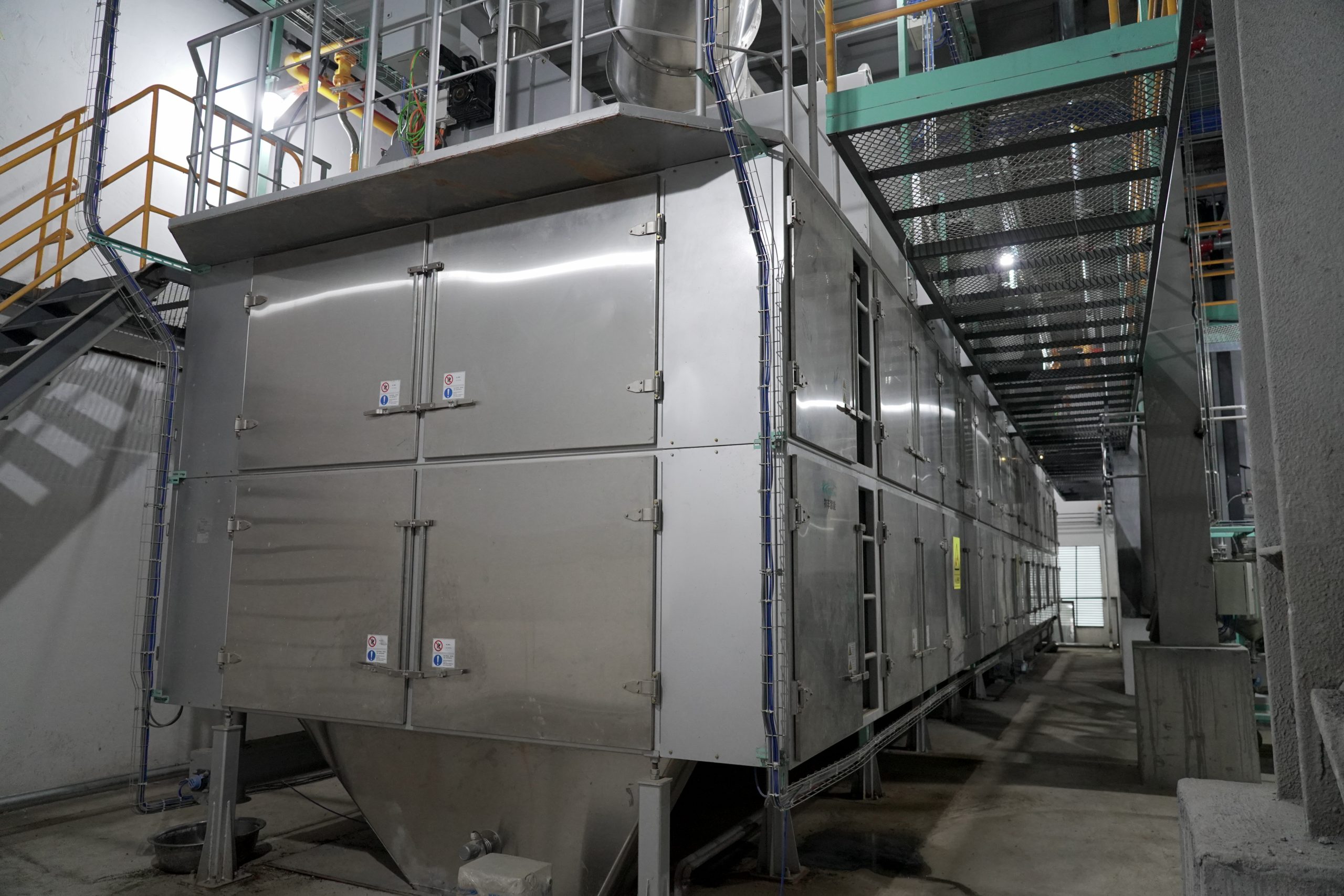

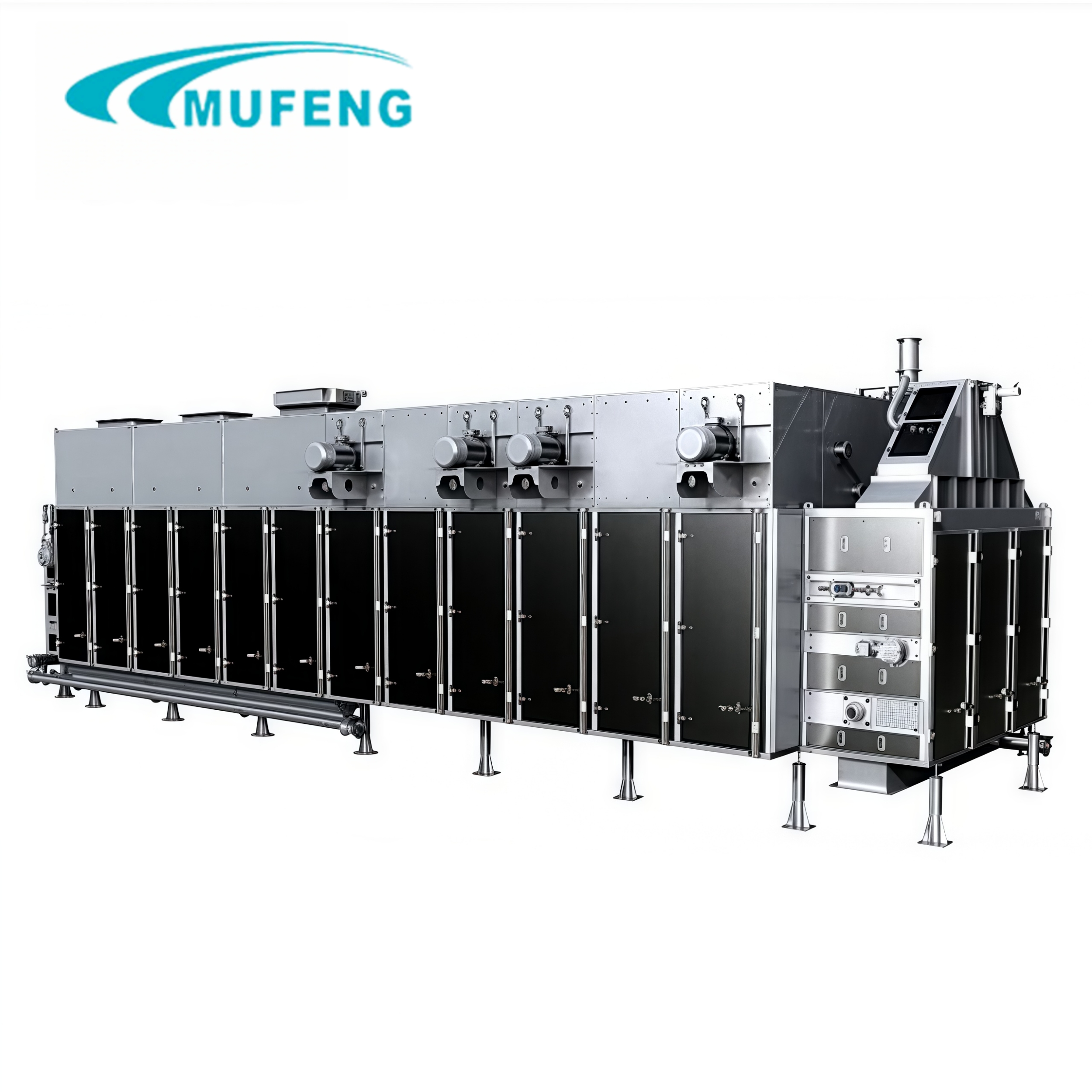

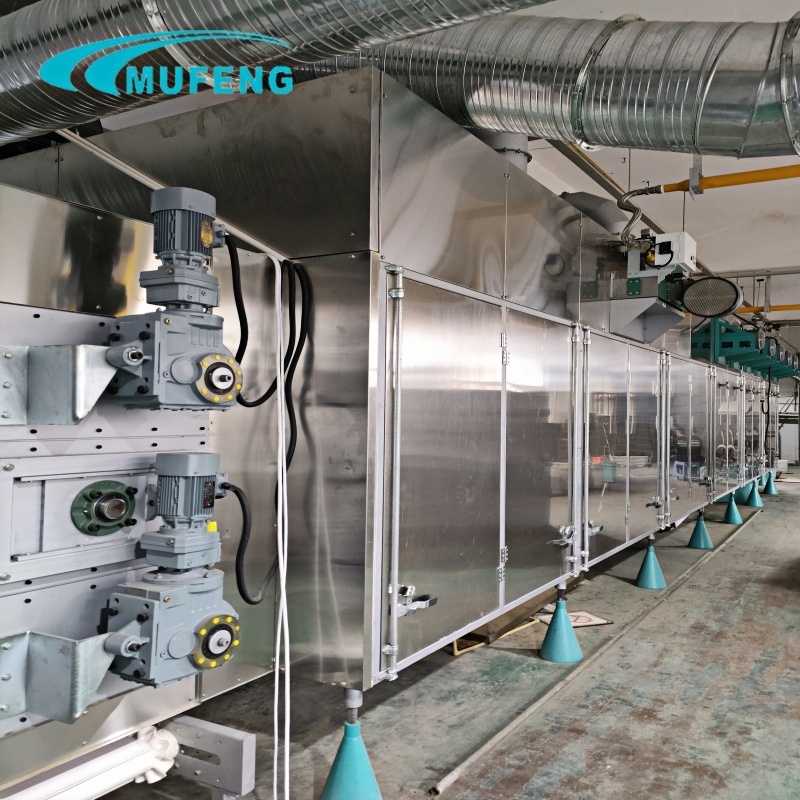

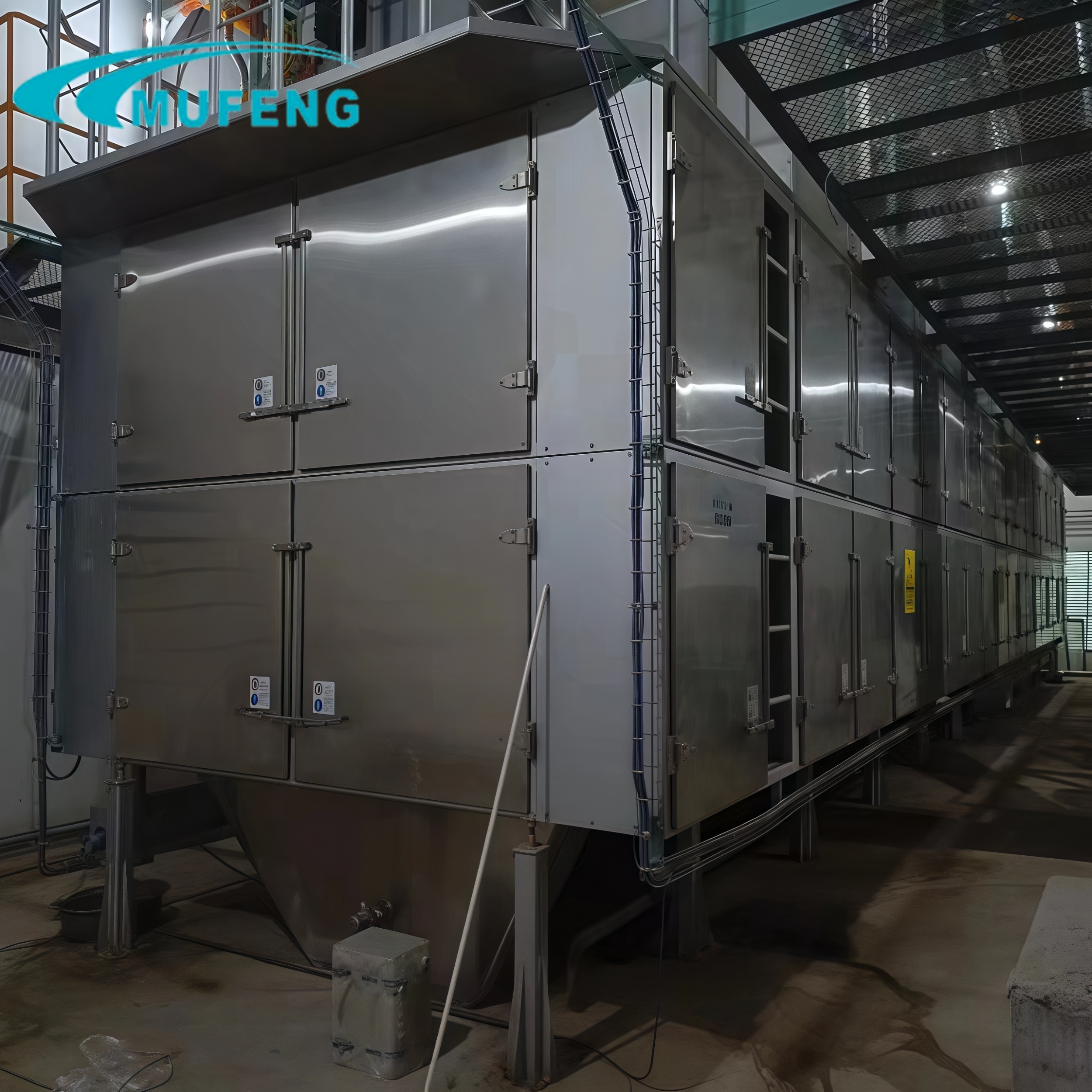

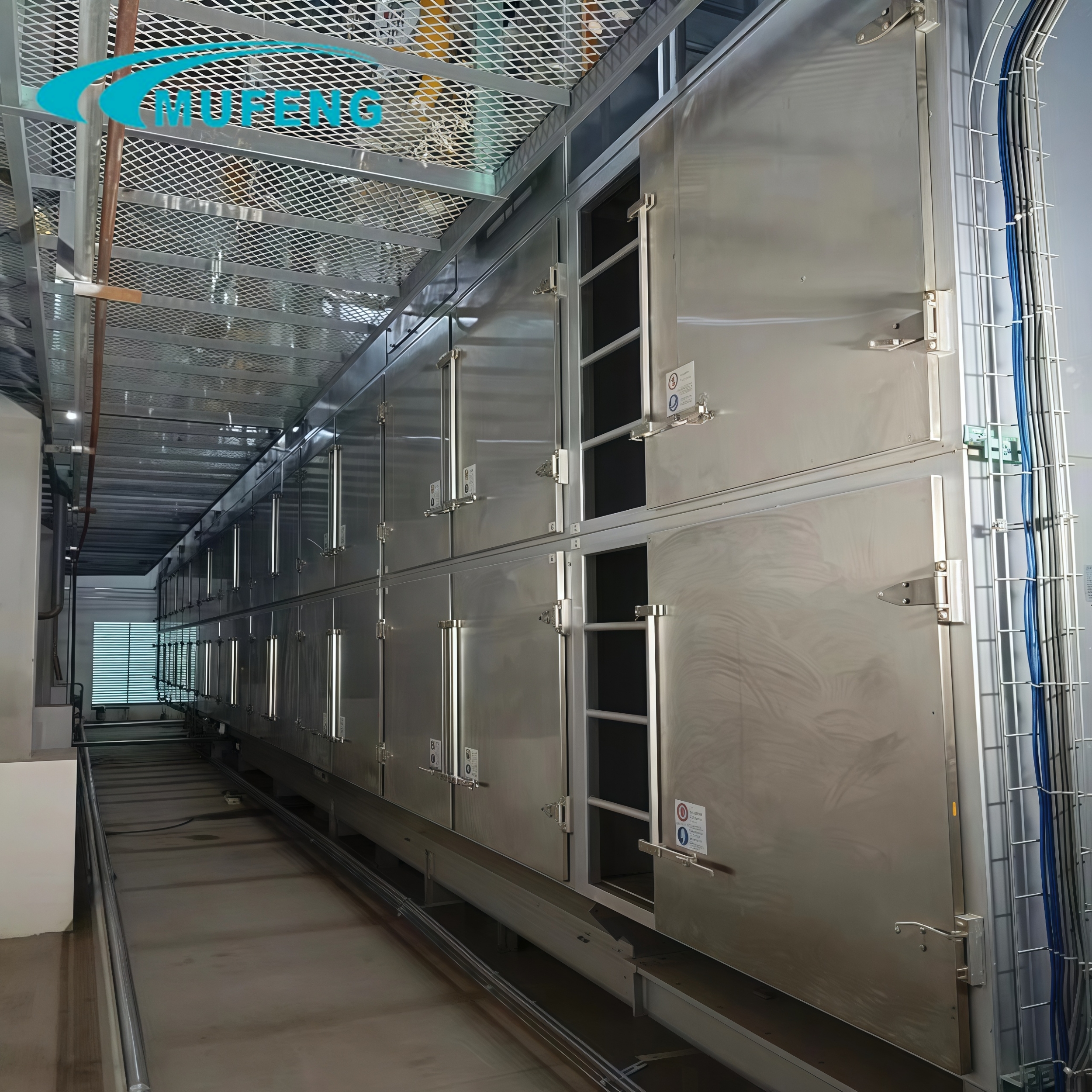

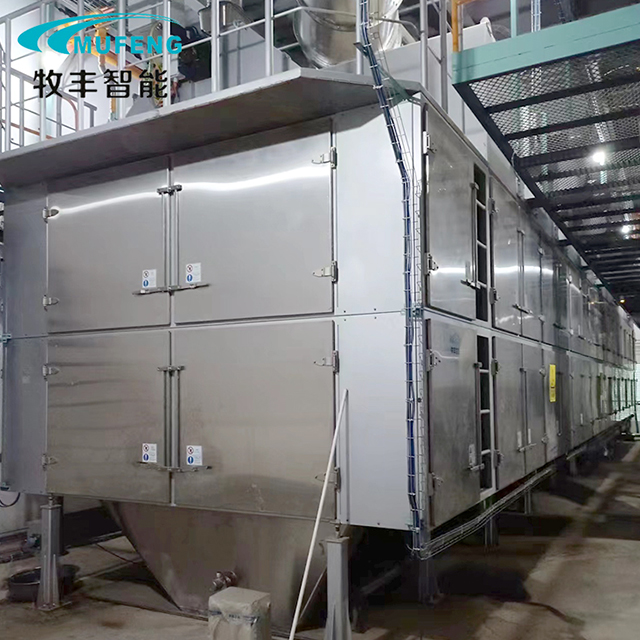

MFHG Steam Series Dryer

Low energy consumption;
High moisture uniformity;

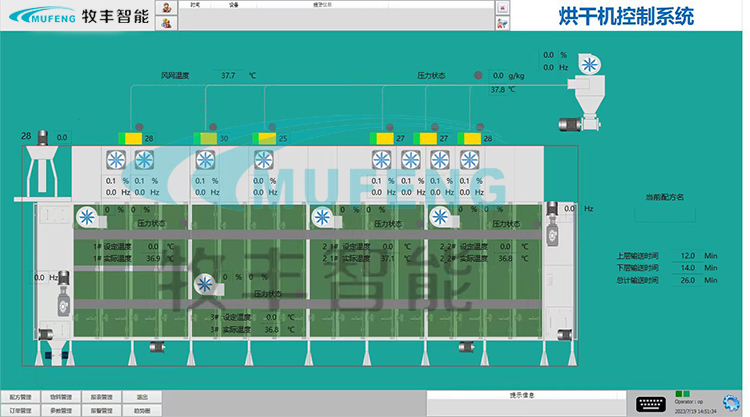

Intelligent control, stable and safe operation;
Stainless steel track plates, no need to replace.

Performance Fetures

Super cost-effective;
Low energy consumption, good moisture uniformity, steam consumption can reach 160-240 kg/ton of material, three-point moisture uniformity ≤±0.75%;

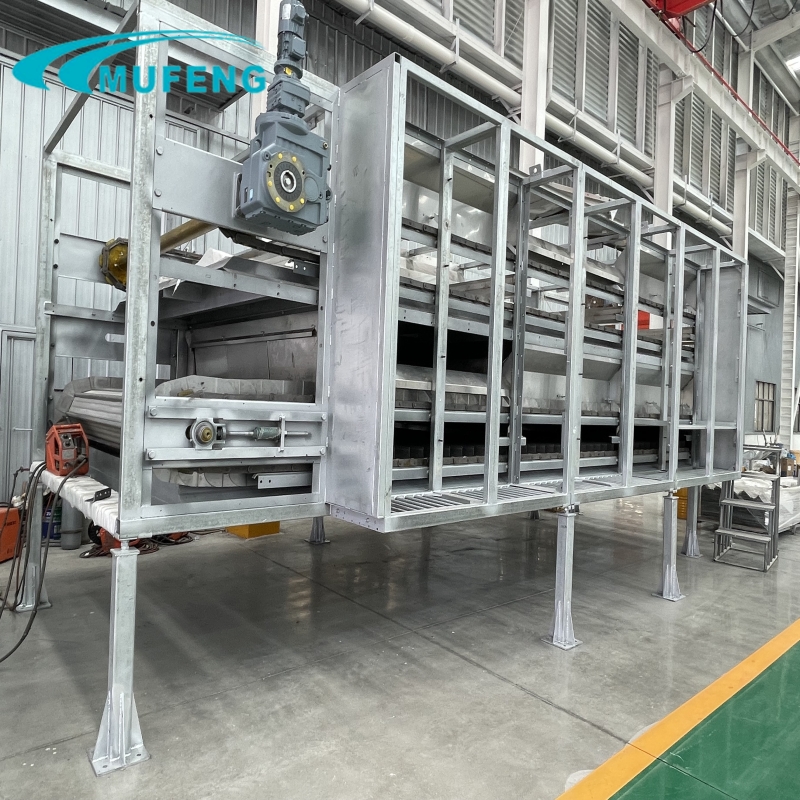

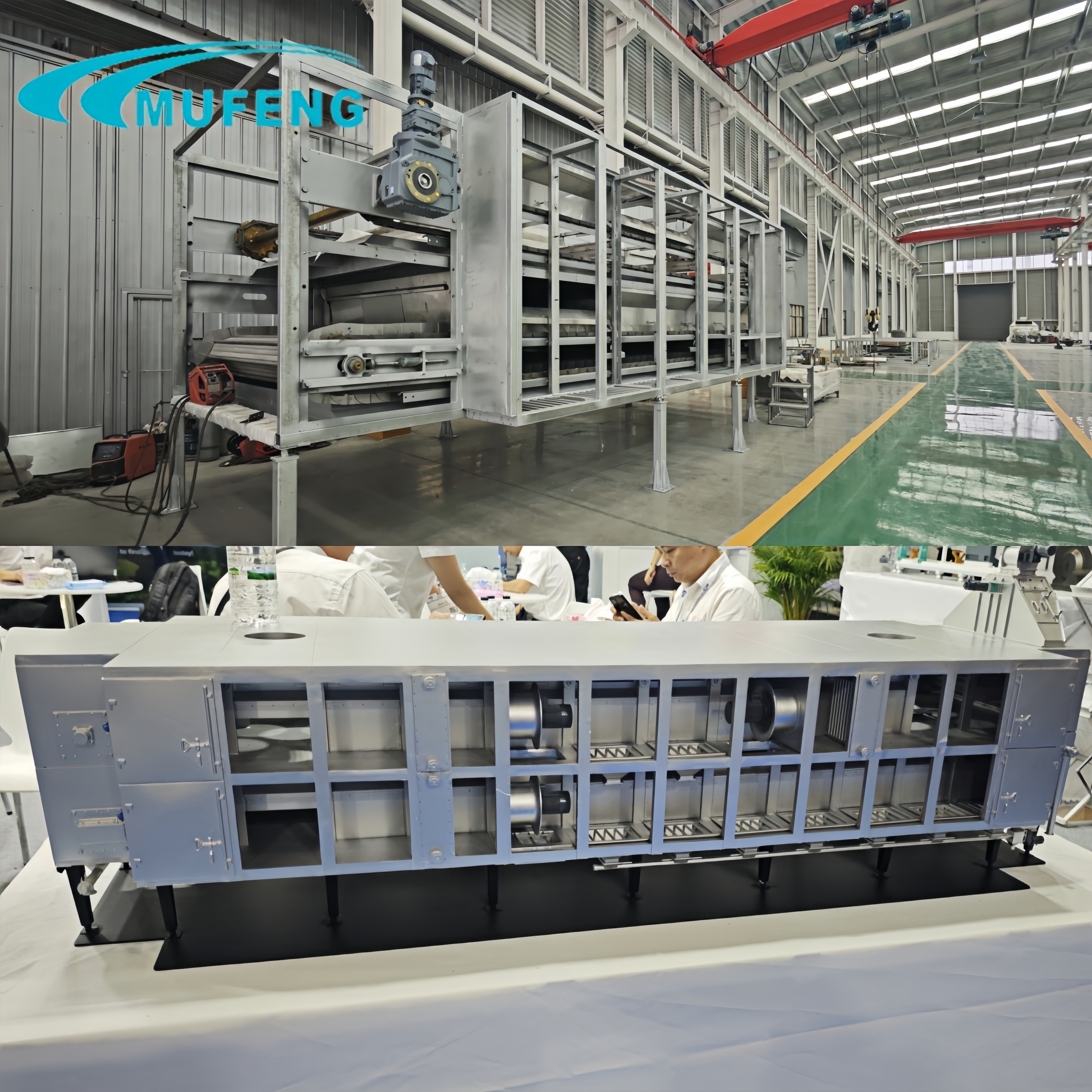

Modular design, easy to expand and maintain;
Wide range of options, with two-layer, three-layer and four-layer configurations, among which the four-layer configuration is especially suitable for sinking material design with good performance;
Closed servo feeder to ensure flat material layer.

Technical Parameters

Project	Standard Configuration	Optional
Conveyor belt structure	Track shoes (stainless steel)	Microplate (stainless steel)
Materials of parts inside the dryer that come into direct contact with materials	Stainless steel
Reducer brand	Guomao, SEW	Same grade brand
Bearing brand	SKF\NSK	Same grade brand
Main valve brands for steam systems	Spirax Sarco、E+H
Fan brand	Domestic first-line brand	Domestic first-line brand
Heat exchanger brand	Domestic first-line brand	Domestic first-line brand
Content	Standard Configuration	Optional
Reducer brand	Guomao, SEW	SEW
Bearing brand	Domestic, SKF	SKF
Steam valve brand	Spirax Sarco、E+H
Fan brand	Domestic	Import
Heat Exchanger	Carbon steel aluminum fin	Stainless steel aluminum fins
Fabric method	Servo spreading
Conveyor belt structure	Stainless steel track shoes
Material in contact with materials	Stainless steel

Serial Number	Model	Abbreviation	Reference Yield（t/h）	Reference Power（kw）	Main Feature
Serial Number	Model	Abbreviation	Reference Yield（t/h）	Does Not Include Dehumidification Fan	Main Feature
1	GZDH1600×2-4	W2-4	1～2	24.4	1. Two-layer dryer; 2. Mainly floating materials; 3. No cooling area; 4. Materials enter and exit at the same end
2	GZDH2200×2-4	W2-4	2～3	32.4
3	GZDH2200×2-8	W2-8	4.5～5.5	62.4
4	GZDH2200×2-12	W2-12	6.5～7.5	93.54
5	GZDH2200×2-16	W2-16	9.5～10.5	123.54
6	GZDH2200×3-4	W3-4	2～3	32.95	1. Three-layer dryer; 2. Consider both ups and downs; 3. It has its own cooling area to meet the customer’s discharging temperature requirements; 4. Materials enter from one end and exit from the other.
7	GZDH2200×3-8	W3-8	4.5～5.5	62.95
8	GZDH2200×3-12	W3-12	6.5～7.5	94.66
9	GZDH2200×3-16	W3-16	9.5～10.5	124.66
10	GZDH2200×4-4	W4-4	2～3	32.76	1. Four-layer dryer; 2. Mainly made of sinking materials; 3. No cooling area; 4. Materials enter and exit at the same end
11	GZDH2200×4-8	W4-8	4.5～5.5	62.76
12	GZDH2200×4-12	W4-12	6.5～7.5	95.04
13	GZDH2200×4-16	W4-16	9.5～10.5	125.04
Note	Can choose between 3-layer and 4-layer configurations

Raw Materials and Final Products

The horizontal dryer can choose steam or natural gas heat source. The natural gas heat source has lower energy consumption than the steam heat source and is easier to maintain. It can be used for drying various puffed aquatic feeds, puffed pet feeds, etc.

Bean

Corn

Livestock feed pellet

Turnkey successful projects

Always Create Client Value

Successful case of additive premix production line project with annual output of 60,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of broiler pellet feed production line project with annual output of 180,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 5T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful Case of 2T/H Pet Food Production Line Project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of 10T/H biomass pellet production line project

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

Successful case of aquatic feed production line project with annual output of 420,000 tons

Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.

FAQ

What is the drying cost?

The steam consumption of a steam dryer to dry one ton of feed is about 150-250KG. The quality varies according to the particle size. Generally, sinking materials consume more gas. Using natural gas to dry one ton of floating materials consumes about 10-12 cubic meters of gas, and sinking materials consume about 15-18 cubic meters.

How to control the moisture uniformity of the dryer drying puffed feed?

The key point affecting moisture uniformity is uniform distribution of the material, and the wind path design is stable and uniform in air volume and pressure; Mufeng intelligent dryer uses servo motor to control the distributor, the distribution is uniform, the wind path design is consistent, and the moisture uniformity is within ±0.5%;

What feed is difficult to dry?

It is difficult to dry sinking materials and particles with a diameter greater than 20mm and less than 0.8mm. Sinking materials and large particles need to extend the drying time to obtain good drying effects and lower energy consumption; small particles need to prevent particles from leaking on the mesh belt and being blown away by the wind. The mesh belt of Mufeng dryer adopts the form of roll-welded stainless steel mesh to adapt to the drying of small particles.
