1.Wide range of application
Suitable for processing conventional pellet feeds with different particle sizes from 2 to 16mm;
Suitable for processing of extruded raw materials, expansion materials, creep materials and other materials that are prone to caking;

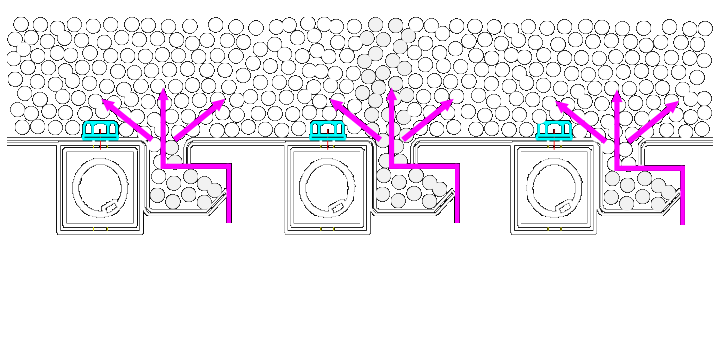

Optimize the air path layout and make the air flow more uniform;
The distribution mechanism is improved to make the material layer more uniform. 6. For widths above 2400mm, an electric distributor and flattening device are optional;

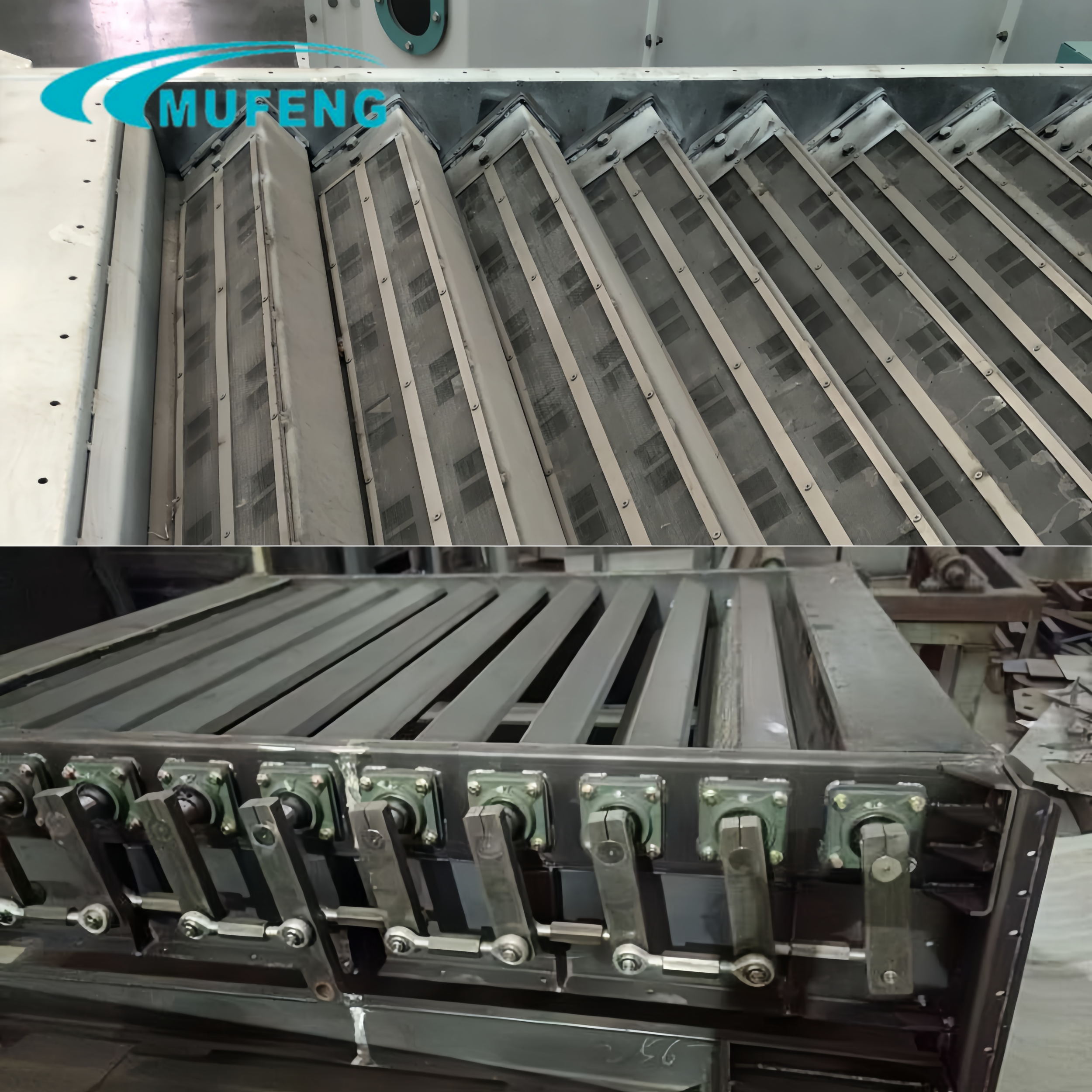

Innovative flap structure, small discharge resistance and high mechanism reliability;
The opening of the flap discharge is adjustable to adapt to changes in output;
The modular design of the whole machine reduces transportation and installation costs and facilitates maintenance.
| Model | SKLF15×15 | SKLF20×20 | SKLF24×24 | SKLF28×28 |
| Capacity(t/h) | 5-8 | 10-15 | 15-20 | 20-30 |
| Cooling Time(min) | 8~15minutes | |||
| Temperaturet Cooling(℃) | ≤Room temperature+5℃ | |||
| Power(kw) | 1.5 | 2.2 | 3.0 | 5.5 |
| Fan Pressure(Pa) | 2000 | 2000 | 2000 | 2000 |
| Fan Type | 4-72-11NO-5A/7.5kw | 4-72-11NO-6C/15kw | 4-72-11NO-8C/30kw | 4-72-11NO-10C/37kw |
