Home > Cleaner and Sifter > High Square Sieve

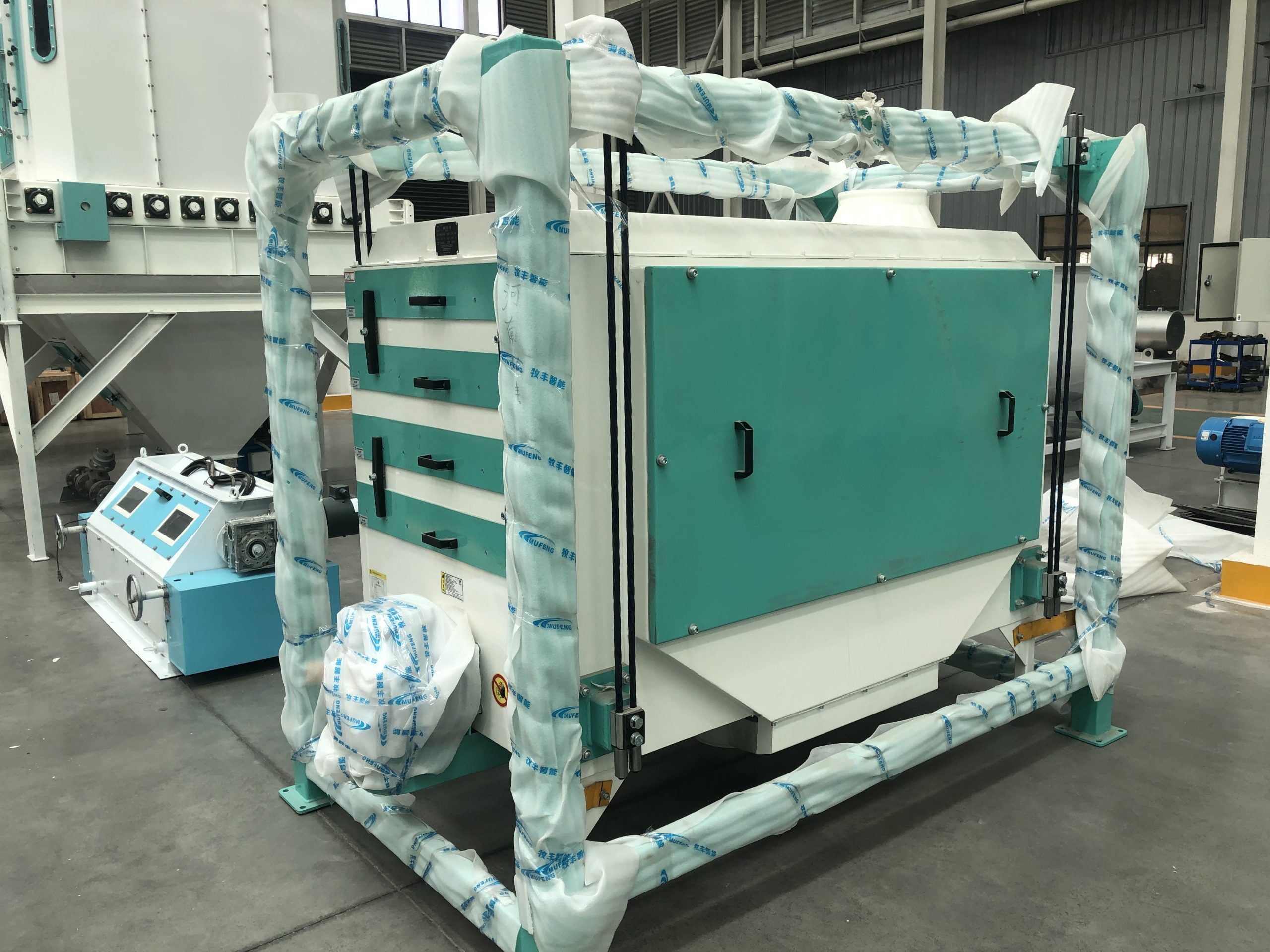

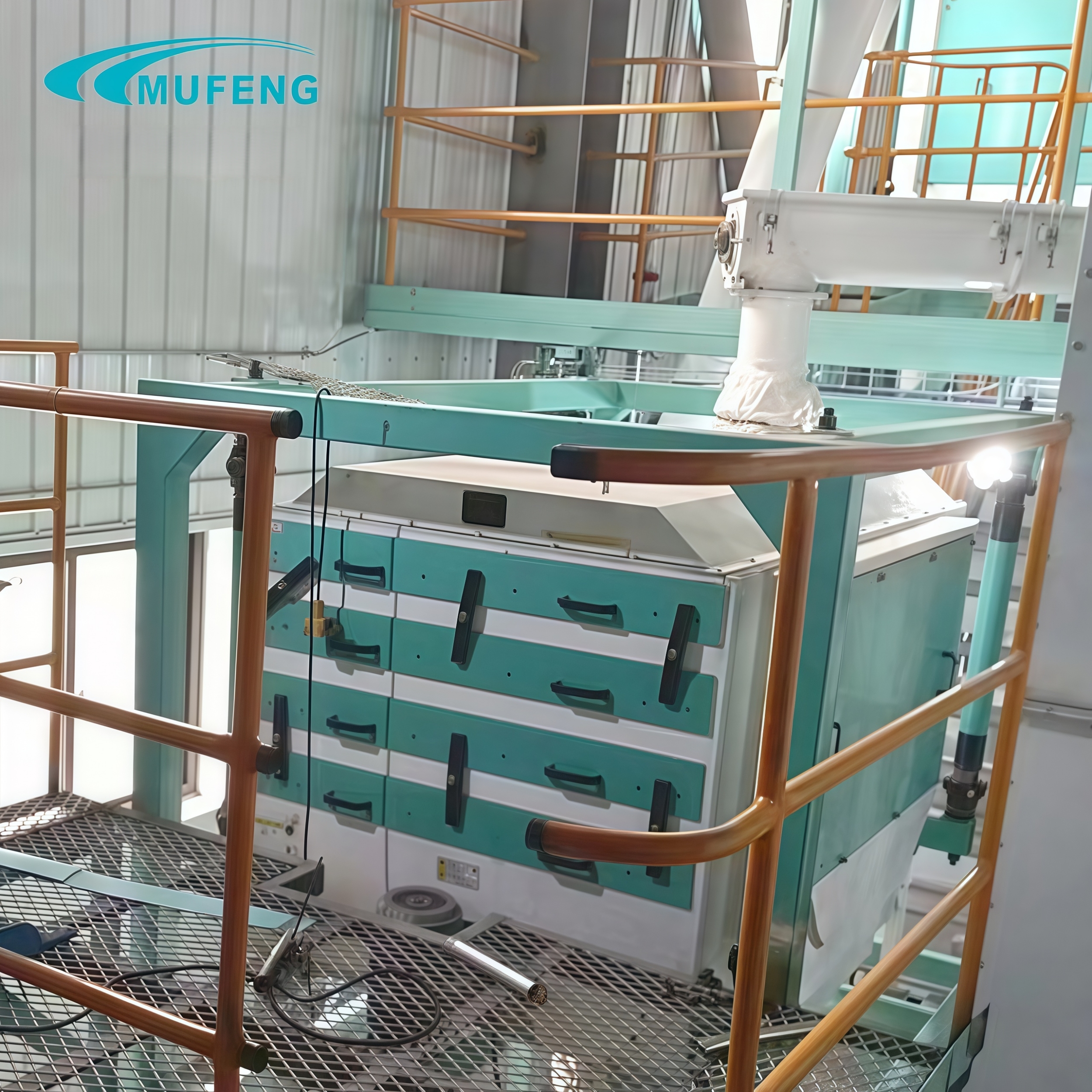

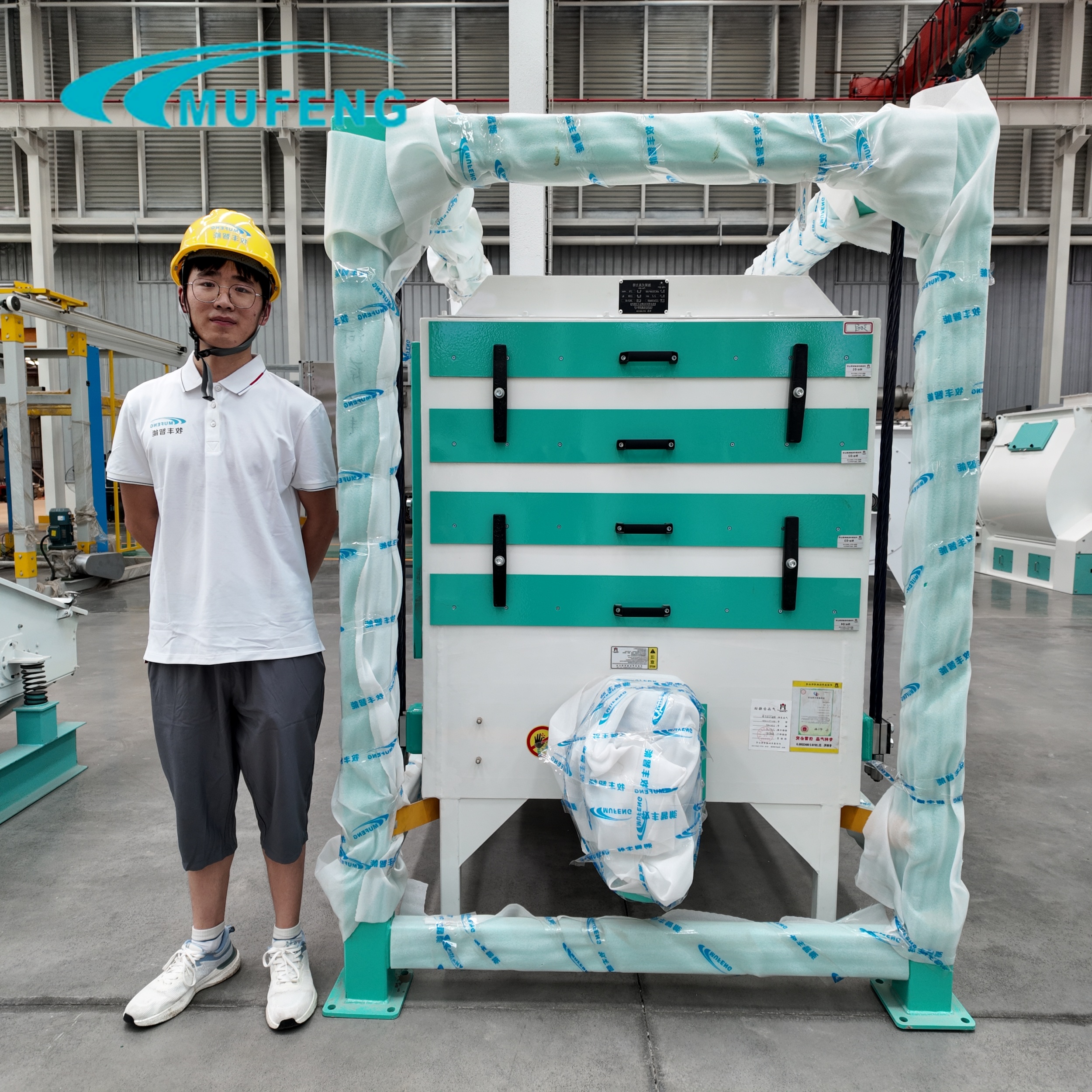

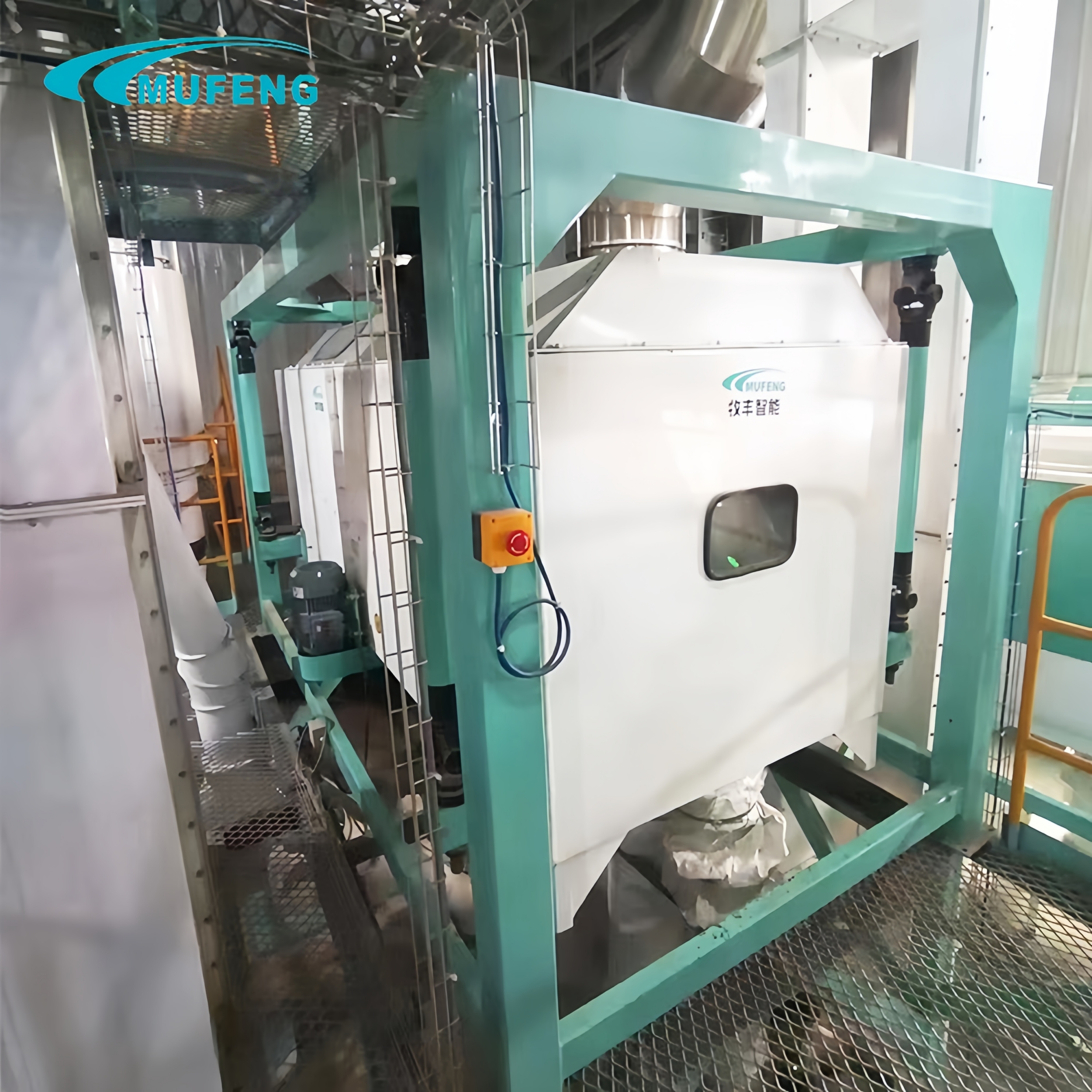

Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)
Drawer sieve (Special for aquatic products)

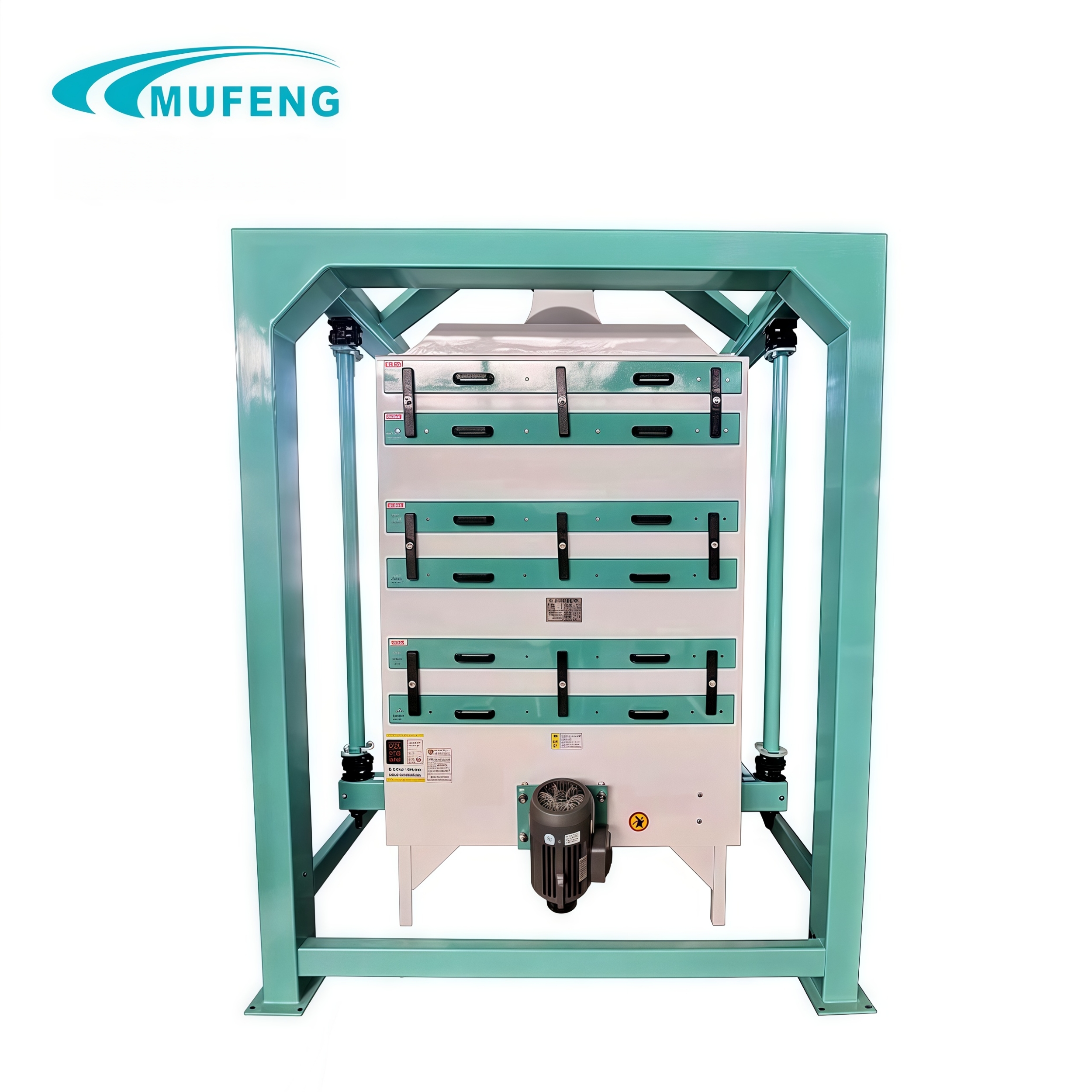

High Square Sieve

AHCTS drawer-type high square screen is a new product independently researched, designed and manufactured by our company.


Quote Now
Send E-mail
Share
High Square Sieve (Special for aquatic products)
  1. Using reasonable parameters, high speed, small turning radius, and high powder screening efficiency.
  2. The universal joint seamless steel pipe link is strong and durable, making the screen run more smoothly and the material traveling smoother.
  3. Small in size, it can screen and classify a variety of materials to meet different process requirements.
  4. The whole machine occupies a small area and working space, making it very suitable for installation in small places in workshops.
  5. Each part of the screen box has strict dimensions, compact structure, good sealing performance and no leakage.
  6. The screen box adopts an enlarged, large-flow screen grid, and the screening area is 30% larger than the ordinary screen grid.
Technical Parameters
Technical parameters current model Processing capacity (T/h) Power(KW) Rotation diameter (mm) Weight(kg) Overall dimensions (length x width x height)
MFGFS125×190 8-12 2.2 40-45 1500 2540x1890x2100
MFGFS160x220 12-22 3 60-70 2300 2860x2450x2540
Raw Materials and Final Products
MFGFS drawer-type high square sieve is a new product independently researched, designed and manufactured by our company. It is a new product developed by our company based on the original flat screen according to market demand. It is a more efficient flat rotary grading equipment. It has a large single screening area, saves space compared with the traditional high square sieve, and has a pull-out screen grid, which is easier to clean. This equipment is widely used in the grading and impurity removal of powder particles in flour, food, pharmaceuticals, feed, chemicals, starch, mining and other industries.
Bean
Corn
Livestock feed pellet
Make pig feed pellet
Pellets
Sorghum
Wheat
Turnkey successful projects
Always Create Client Value
Successful case of additive premix production line project with annual output of 60,000 tons
Country
Henan
Capacity
60,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of aquatic feed production line project with annual output of 420,000 tons
Country
Henan
Capacity
420,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful Case of 2T/H Pet Food Production Line Project
Country
Yantai, Shandong
Capacity
2 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of 10T/H biomass pellet production line project
Country
Henan
Capacity
10 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of pellet feed production line project with annual output of 120,000 tons
Country
Zhengzhou, Henan
Capacity
120,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of broiler pellet feed production line project with annual output of 180,000 tons
Country
Henan
Capacity
180,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
FAQ
Drawer sieve (Special for aquatic products)
What is the reason for the serious deflection of the High Square Sieve when starting?
Check whether the motor is damaged or missing, whether the belt is too loose, whether the screen is blocked by materials, and eliminate the problem;
What should I do if the High Square Sieve makes a roaring noise?
Check whether the bearing is damaged and replace the bearing in time;
What should I do if large particles appear in the finished product?
Check whether there is a large gap in the screen frame or the screen is damaged.
Request Quote
Always Create Client Value

    *

    *

    Production Line

    Production Capacity

    *Messages

    Related Products
    We are professional supplier of animal feed pellet production line, pet food production line and biomass pellet production line.
    SCQZ series powder sieve

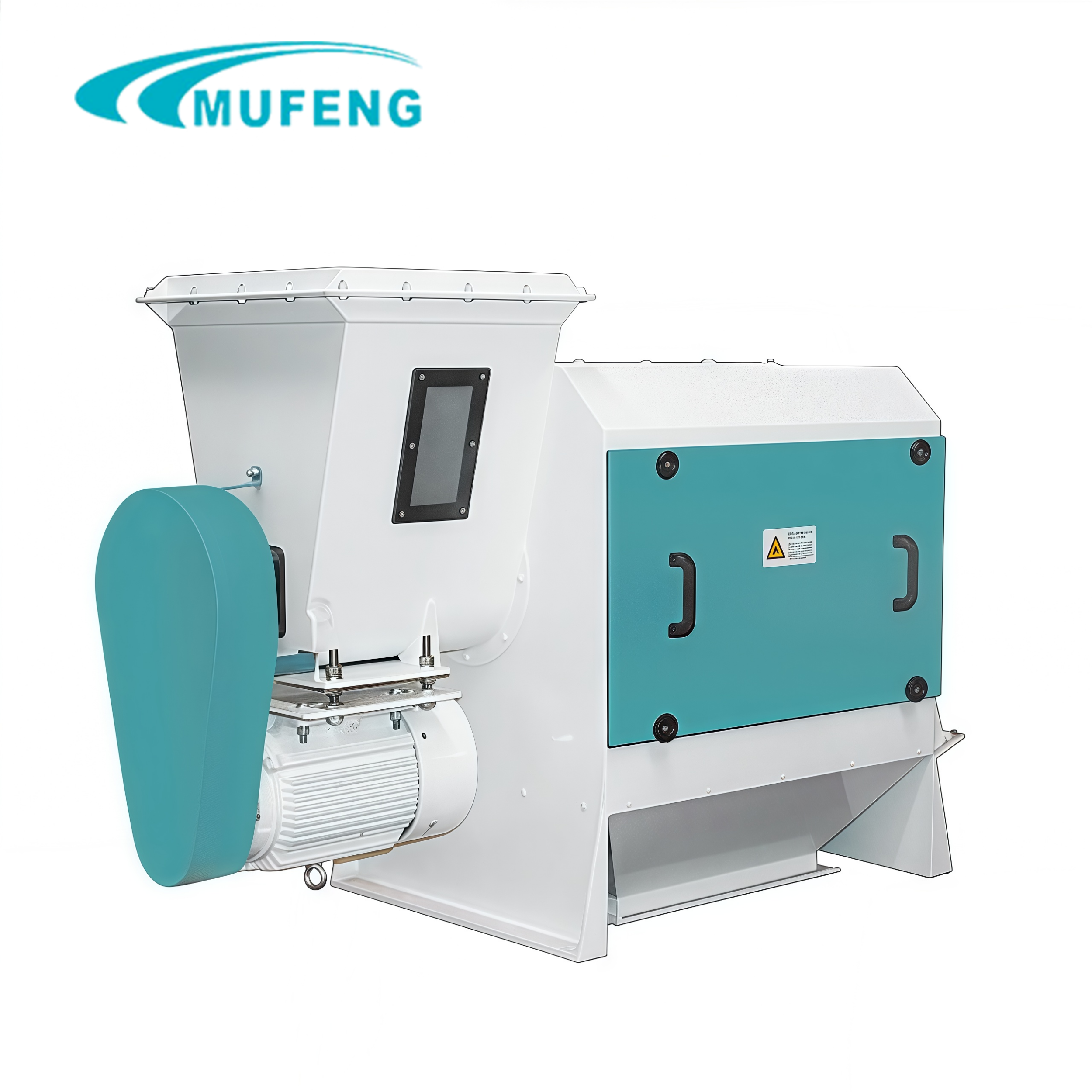

    SCQZ Series Conical Powder Cleaning Sieve
    It is used for initial cleaning of powdery auxiliary materials, effectively crushing agglomerates in powdery auxiliary materials and separating large impurities such as stones.
    SFJH series flat rotary screen
    SFJH Series Plane Rotary Screen
    This machine has the advantages of reasonable design, simple structure, smooth operation, fully enclosed structure, no dust and stains, anti-blocking holes, anti-sticking net, etc.

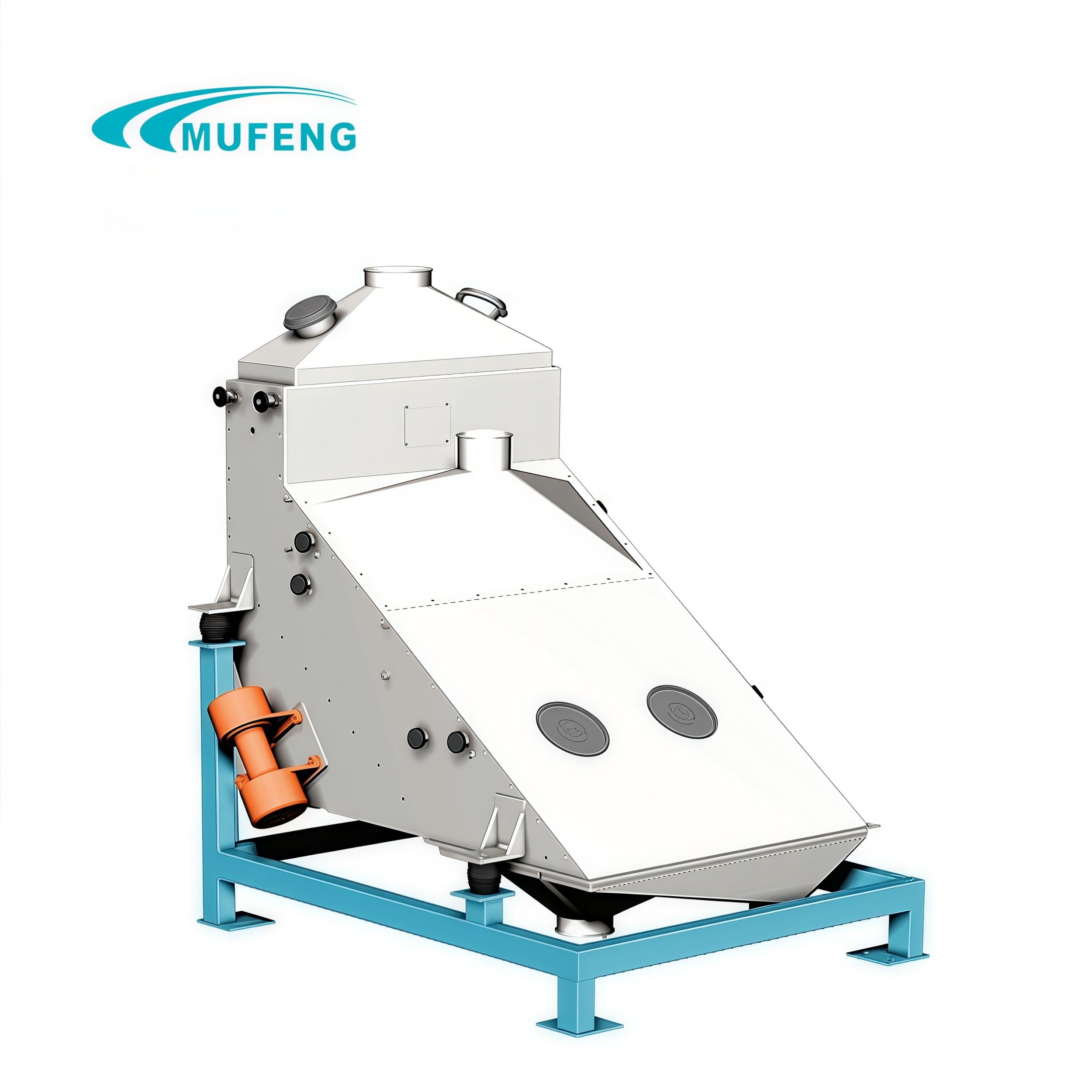

    Vibrating screen
