Home > Cleaner and Sifter > Double Drum Primary Cleaning Screen
Yuantong primary cleaning screen
Yuantong primary cleaning screen

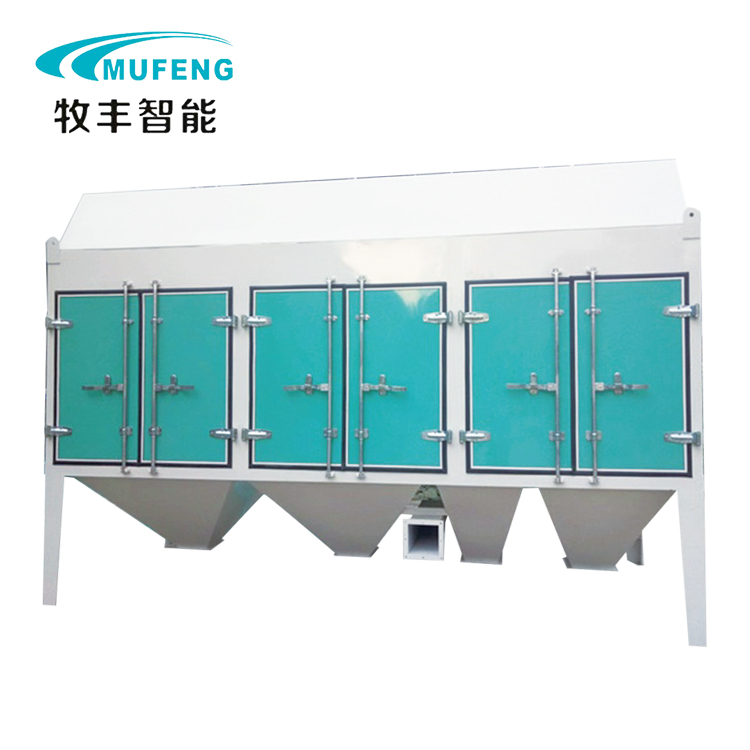

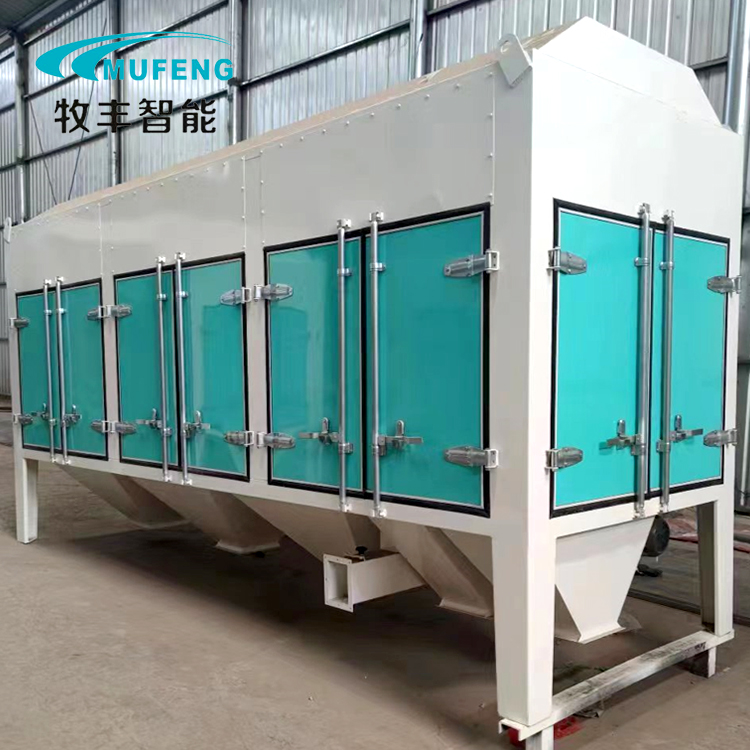

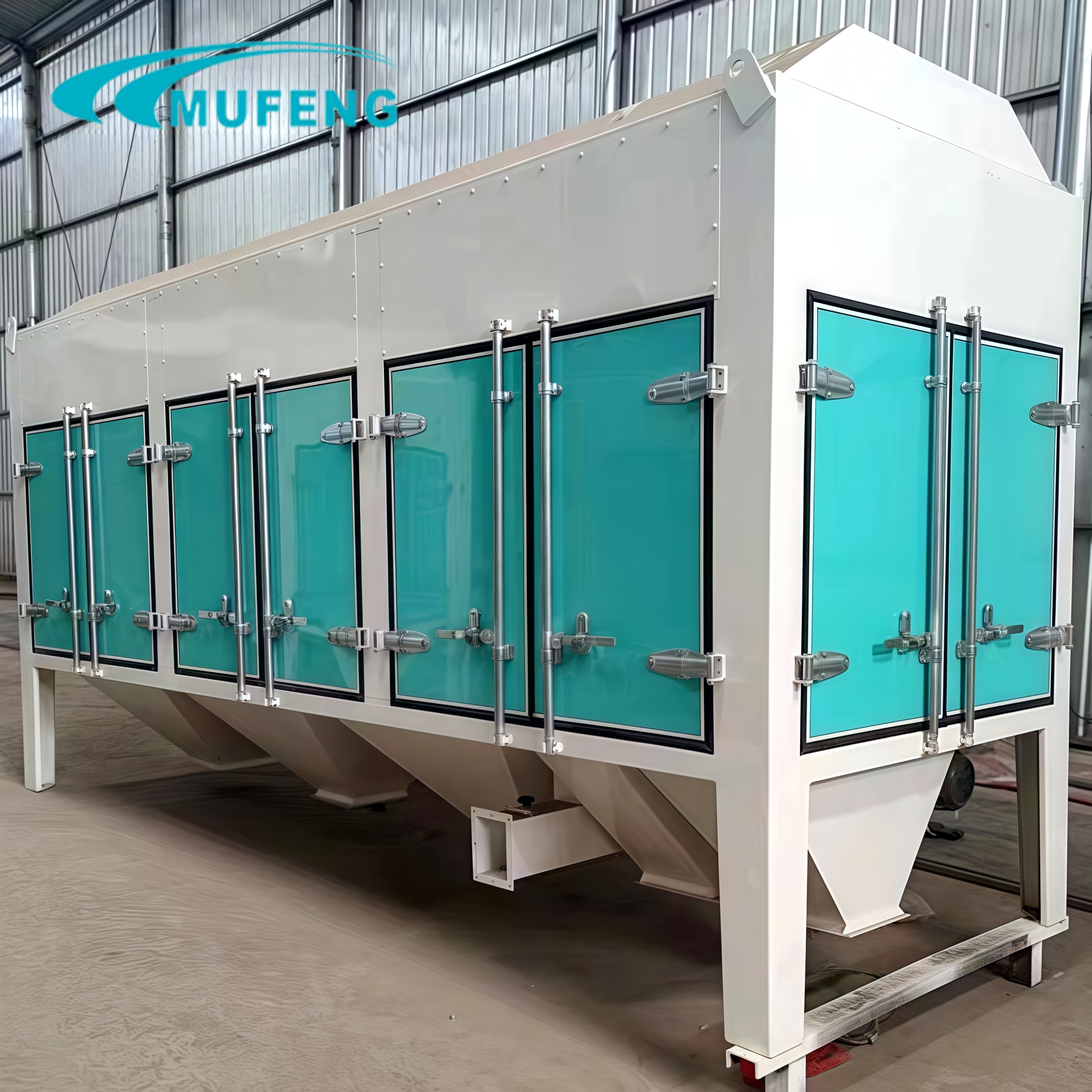

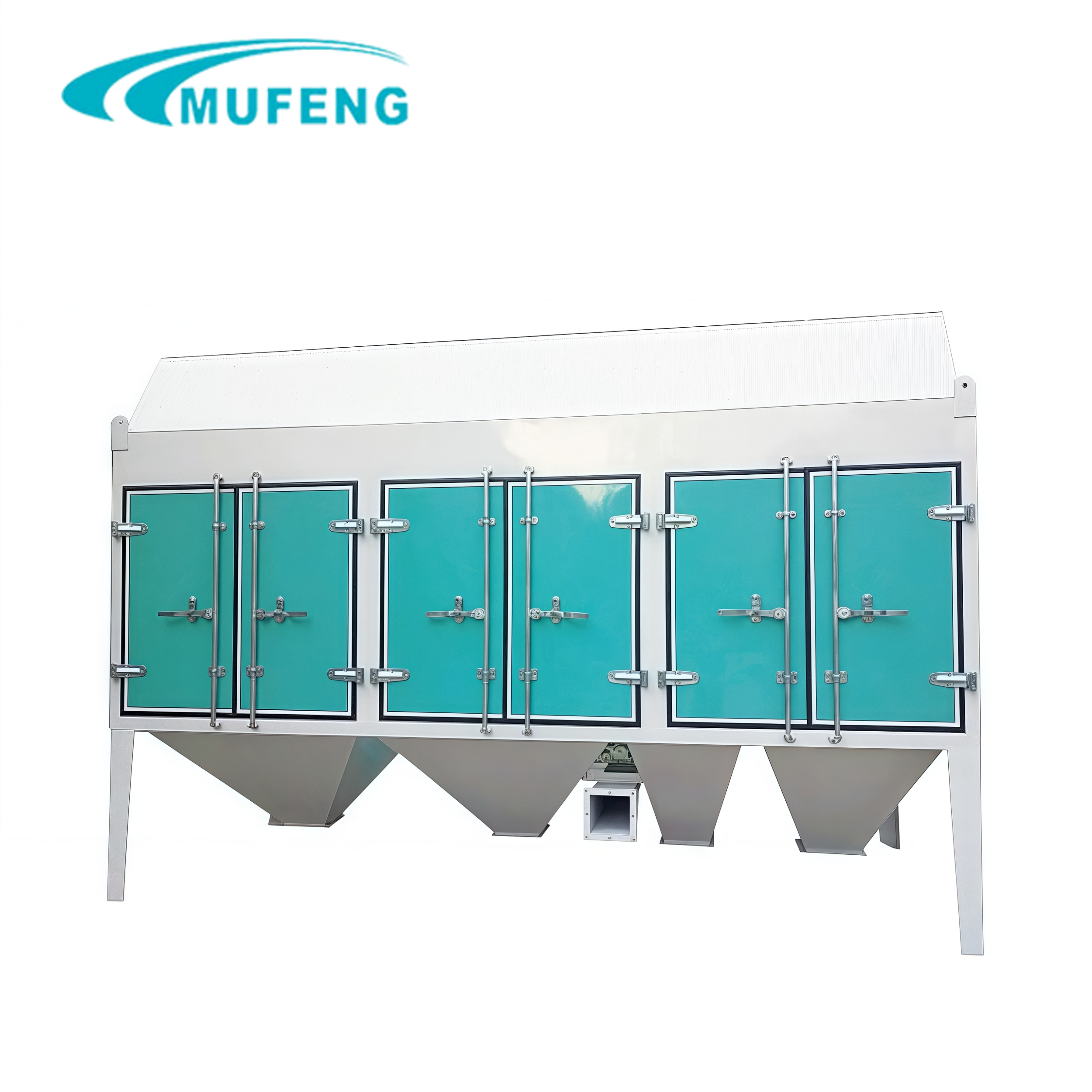

Double Drum Primary Cleaning Screen

During the development process of the TCQVS round simple primary cleaning screen, based on the principle of "easy to use, applicable, and efficient".


Quote Now
Send E-mail
Share
Yuantong primary cleaning screen
Performance Fetures
  1. Double-layer screen drums process large and small debris respectively;
  2. The screen drum is supported by rollers, with large load capacity and higher output. The screen drum angle can be adjusted to adjust the production capacity and cleaning effect;
  3. Air suction ports are reserved at the top of the machine and the bottom of the discharge hopper, which is more hygienic and clean;
  4. Two types of fixed and mobile options are available for users to choose;
  5. Advanced processing methods and high-quality materials;
  6. Electrostatic spraying surface treatment.
Technical Parameters
Model Model Model Model Model Model Model
Variety TCQYS85/190 TCQYS100/220 TCQYS100/320 TCQYS100/420 TCQYS125/320 TCQYS125/420 TCQYS125/520
Wheat Inner screen plate aperture(mm) φ22 60 80 110 140 140 170 190
φ20 50 70 100 120 120 150 170
φ18 40 60 90 110 100 120 140
φ16 30 50 70 100 90 110 120
Outer screen plate hole diameter ( mm)   φ1.8-φ3.2
Corn Inner screen plate aperture(mm) φ24 60 85 110 150 150 170 190
φ22 50 75 100 130 120 150 170
φ20 40 65 90 110 110 130 140
φ18 30 50 80 100 100 120 130
Outer screen plate hole diameter  (mm)  φ4.5-φ6.5 (Determined based on the size of the corn moisture and the content of broken kernels)


Soybeans



Inner screen plate aperture(mm)

 φ24 70 85 120 150 150 180 200
φ20 60 75 100 140 130 160 180
φ18 50 65 80 120 110 150 160
φ16 40 50 70 110 100 140 150
φ14 30 40 60 100 90 120 130
Outer screen plate hole diameter  (mm)   φ2.5-φ5(Determine based on the size of the soybean moisture and the content of broken kernels)
Rice Inner screen plate aperture(mm) φ24 40 60 90 120 110 140 160
φ22 35 50 70 100 90 120 140
φ 20 30 40 60 80 80 100 120
Outer screen plate hole diameter  (mm)   φ1.6-φ2.5
Raw Materials and Final Products
During the development process, Double Drum Primary Cleaning Screen adheres to the principle of "easy to use, applicable and practical", and achieves beautiful appearance, reasonable structure, convenient operation and maintenance through computer optimization design. It is suitable for cleaning large and small impurities in granular materials, such as stones, hemp ropes, sand, dust, etc. It has high output, low energy consumption and high reliability. It is an ideal equipment for cleaning large and small impurities at the same time.
Bean
Corn
Livestock feed pellet
Make pig feed pellet
Pellets
Sorghum
Wheat
Turnkey successful projects
Always Create Client Value
Successful of cattle and sheep pellet feed production line with annual output of 90,000 tons
Country
Tongliao City, Inner Mongolia
Capacity
90,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful Case of 5T/H Pet Food Production Line Project
Country
Henan
Capacity
5 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of aquatic feed production line project with annual output of 420,000 tons
Country
Henan
Capacity
420,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of broiler pellet feed production line project with annual output of 180,000 tons
Country
Henan
Capacity
180,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of aquatic feed production line project with annual output of 100,000 tons
Country
Henan
Capacity
100,000 tons/year
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
Successful case of 10T/H biomass pellet production line project
Country
Henan
Capacity
10 ton/hour
Application
Animal feed, aquatic expanded feed, pet food, cat litter pellets, biomass pellets, etc.
FAQ
What products are the double-drum screens mainly used to clean?
The double-drum cleaning screen is mainly used to clean corn, and can simultaneously screen out large and fine impurities, such as large corn cobs, clods of soil, stones, and small dust and broken grains;
Can the double-drum screen clean wheat?
The double-drum screen can be used to clean wheat, but it is not very effective for cleaning wheat straw, mainly because wheat straw can easily pass through the screen into the finished product, and long wheat straw can easily block the screen.
