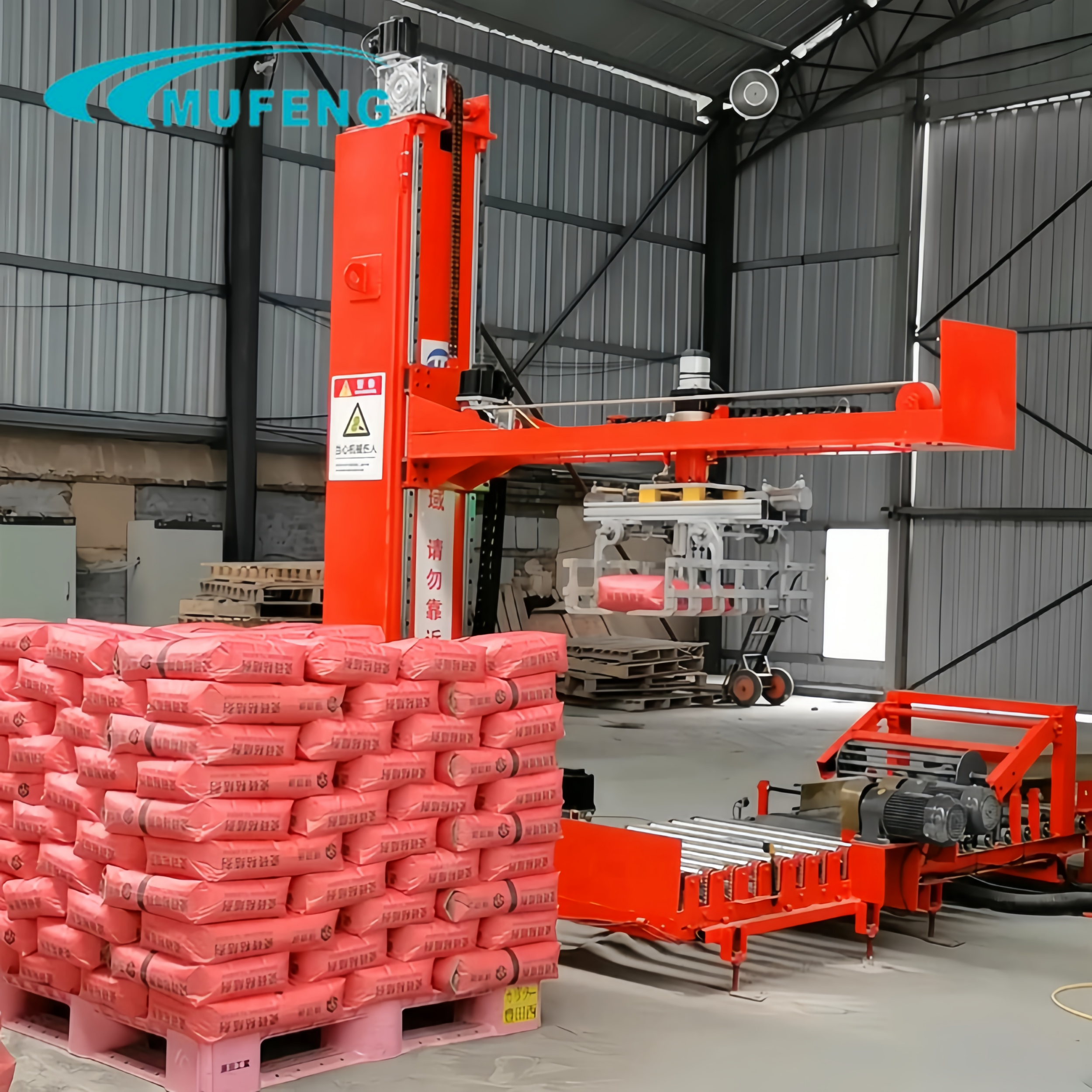

Column Palletizer

It is suitable for the packaging and palletizing needs of materials produced by feed, pellet and other production enterprises.


Quote Now
Send E-mail
Share
Technical Parameters
Product Name Palletizing robot
Product Number LZXZ-180
Lift Weight 200kg+
Four Axis Operation XZYO four-axis
Palletizing Height 1.8m+
Palletizing Speed 6-8 seconds/time 450 pieces per hour
Supply Power 220/380V   50HZ
Supply Air Source 0.5-0.6Mpa
Palletizer Rated Power 5.5KW
Machine Size Rotation radius 2.5 meters Total height 3.5 meters
Maximum Size of Palletizing Pallets 1.5m*1.5m
Raw Materials and Final Products
It is suitable for the packaging and palletizing needs of materials produced by feed, pellet and other production enterprises.
