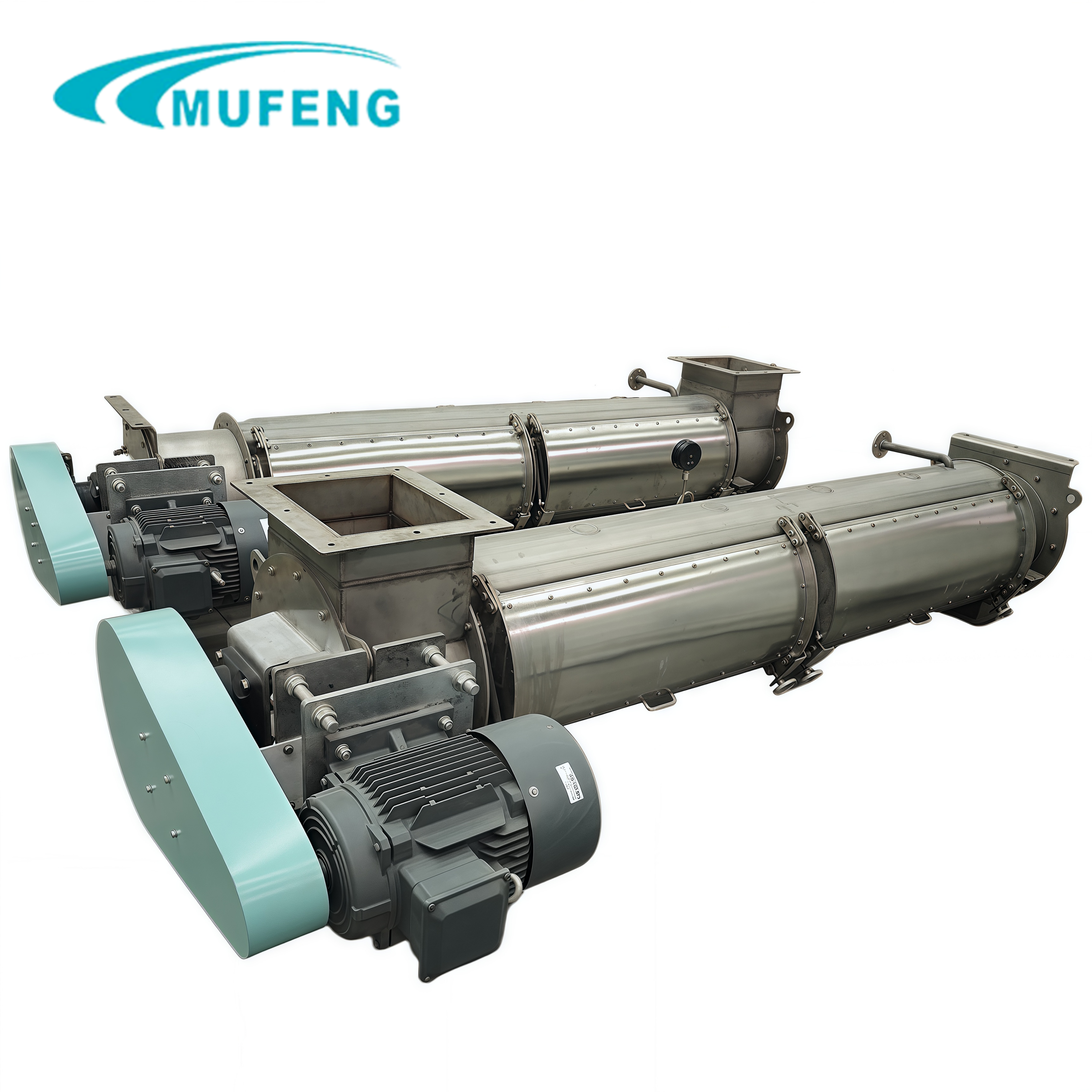

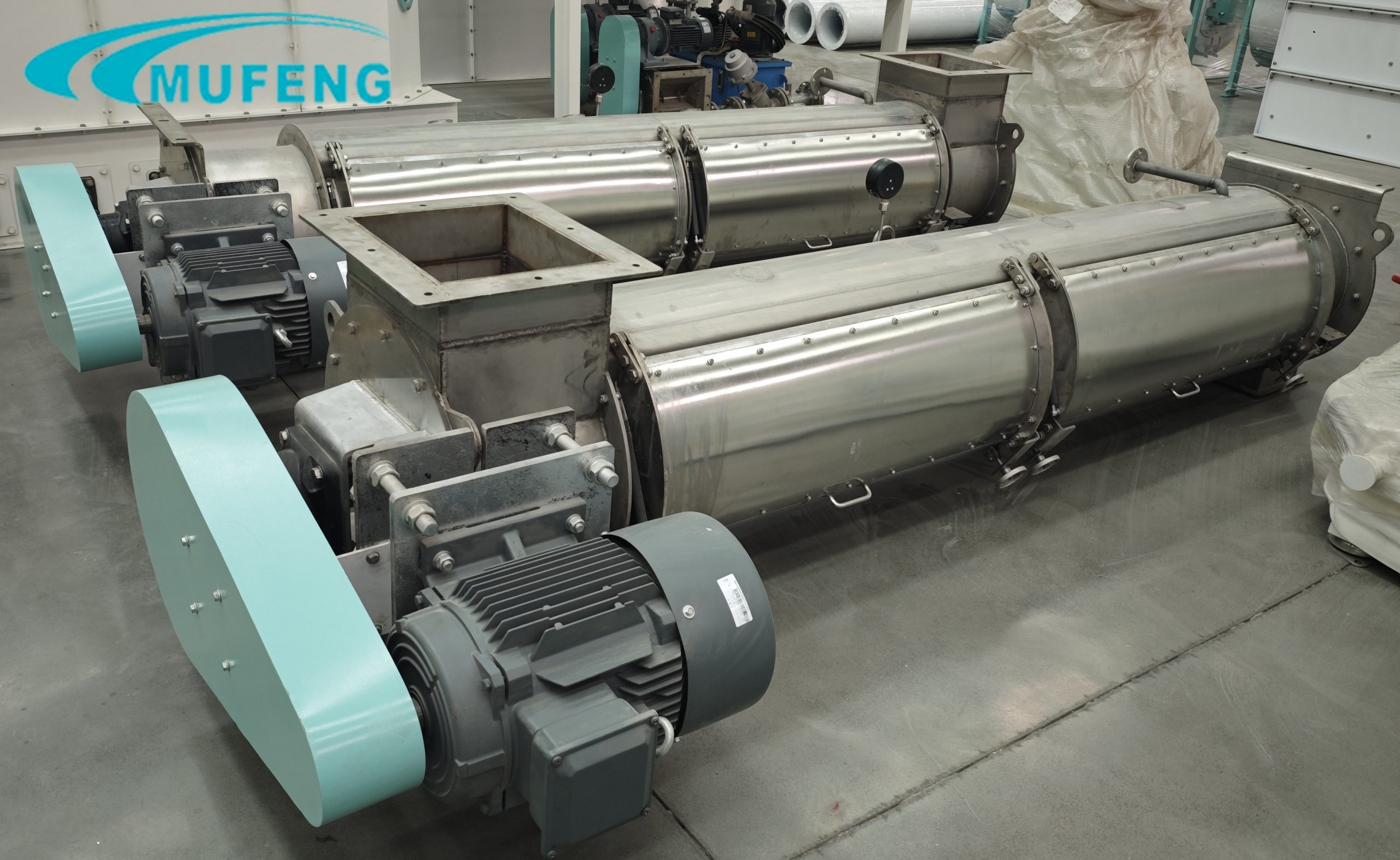

STZJ Series Single-axis Multi-layer Conditioner
1. Add steam to improve the degree of maturation, sterilize and kill viruses;
2. The steam jacket has good heat preservation effect;
3. Extended version, long conditioning time.
Reduce the discharge of material from the machine head and quickly enter the normal production state;
Accurate control: the material temperature sensor feeds back the tempering temperature of the material in the barrel, and the material can be discharged to the pelletizer only after it reaches the requirement;
Convenient operation: the special structure rotor and steering control method simplify the operation;
Auxiliary steam heating jacket, the material quickly heats up;
Imported sealing structure to prevent steam leakage.
Technical Parameters
Model
STZJ300
STZJ450
STZJ550
STZJ630
Rotor Diameter（mm）
300
450
550
630
Rotor Length（mm）
2500
3000
3000~4000（Customized）
3000~4000（Customized）
Tempering Time（s）
20-30
20-45
20-45
20-45
Power (kw)
3
7.5
11
11/15
Raw Materials and Final Products

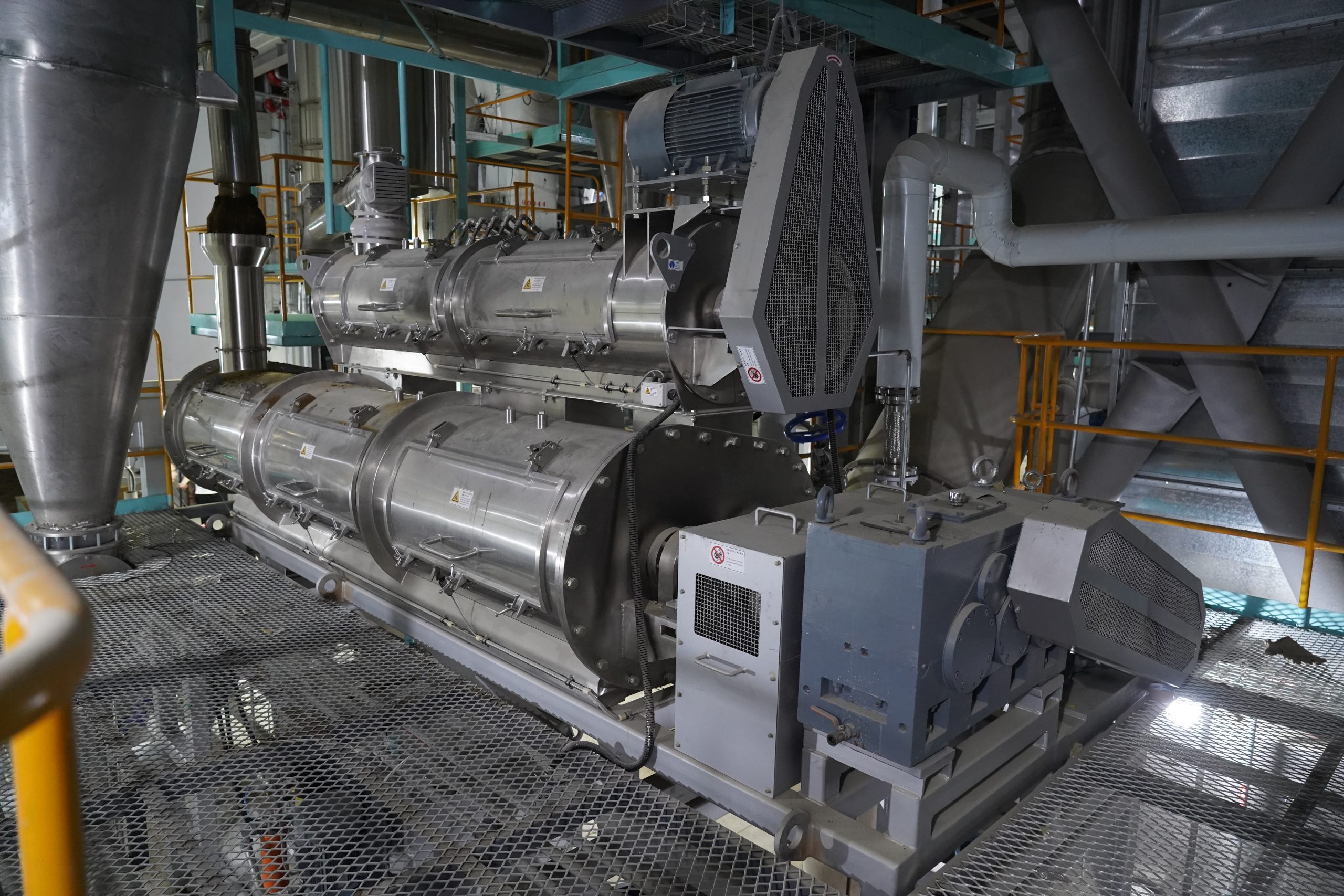

The Single-axis Multi-layer Conditioner can be configured in multiple layers and installed above the pellet mill to mix and mature the material with steam, which is more conducive to pelleting, can increase the output of the pellet mill and improve the quality of feed.

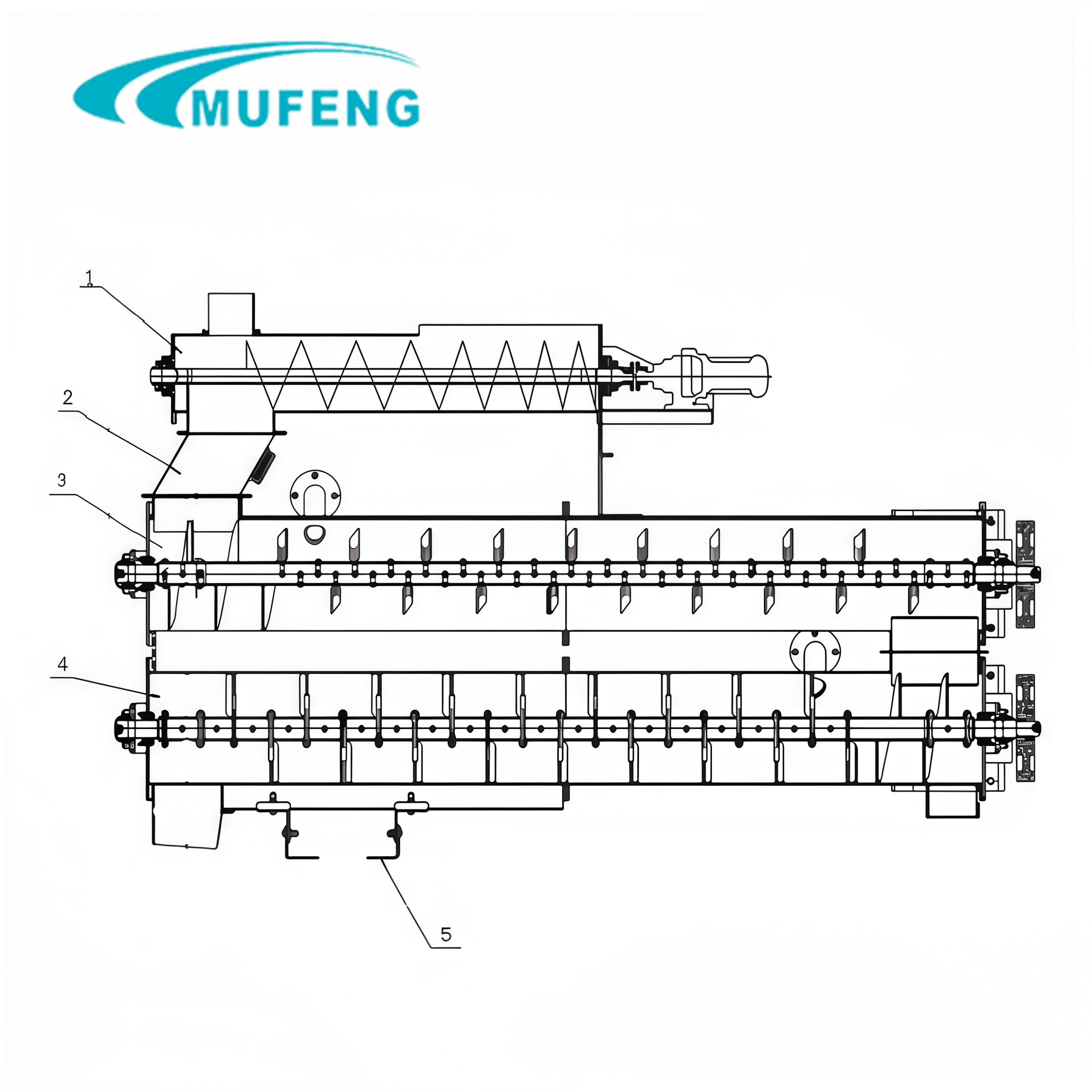

According to the feed requirements, you can configure one layer, two layers or three layers, or choose a conditioner + a hygienizer + a conditioner;
How to extend the conditioning time?

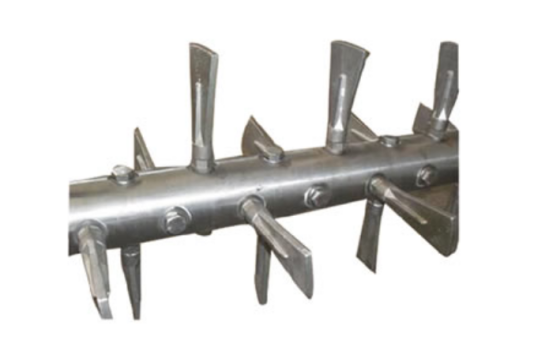

The conditioner blade angle can be adjusted to increase the material filling coefficient in the conditioner to increase the conditioning time of the conditioner.
