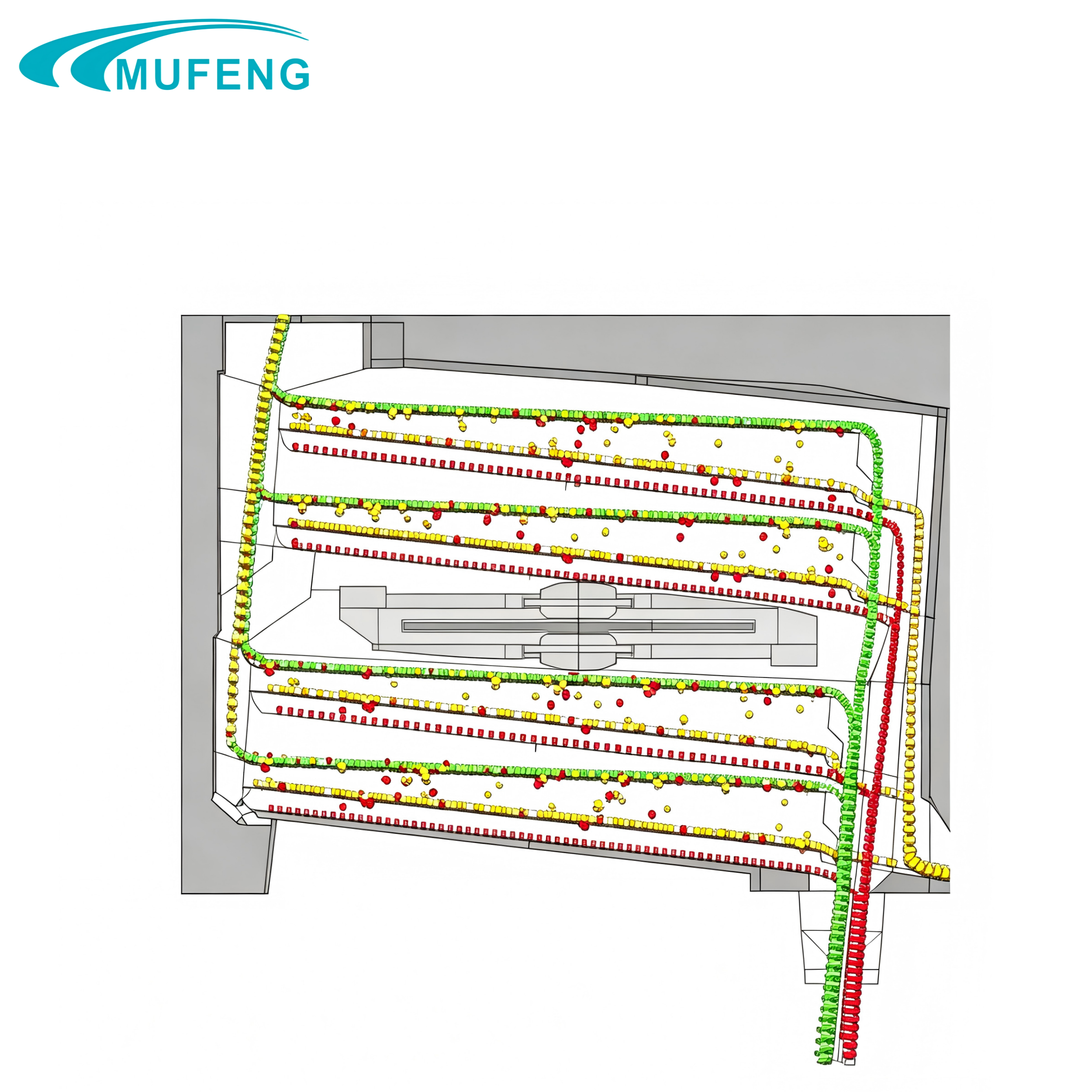

With the expanding production capacity of feed mills and flour mills, the required throughput of granular materials keeps growing. Traditional single-layer screening equipment requires large floor space. By changing the screen layout from series connection to parallel arrangement, this unit drastically cuts occupied area while meeting customers’ high-output demands. Meanwhile, end users put forward stricter requirements on equipment maneuverability and adaptability.
01 Ultra-convenient Screen Replacement
Split-type screen frame; single worker completes screen swap within 5 minutes. Single screen weighs approx. 10kg to reduce labor intensity during replacement.
02 Higher Throughput & Wide Application Range
03 Superior Stability & Reliability

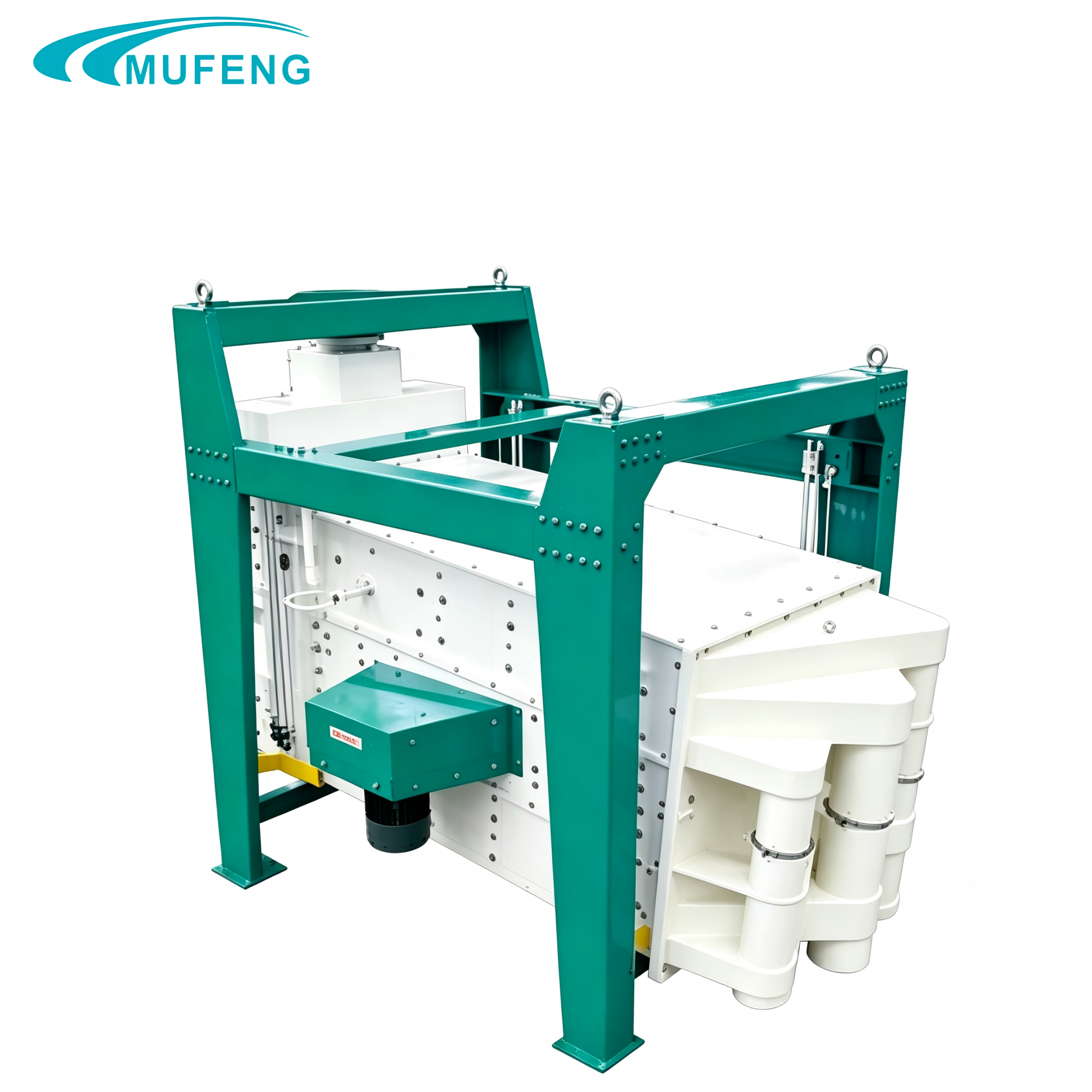

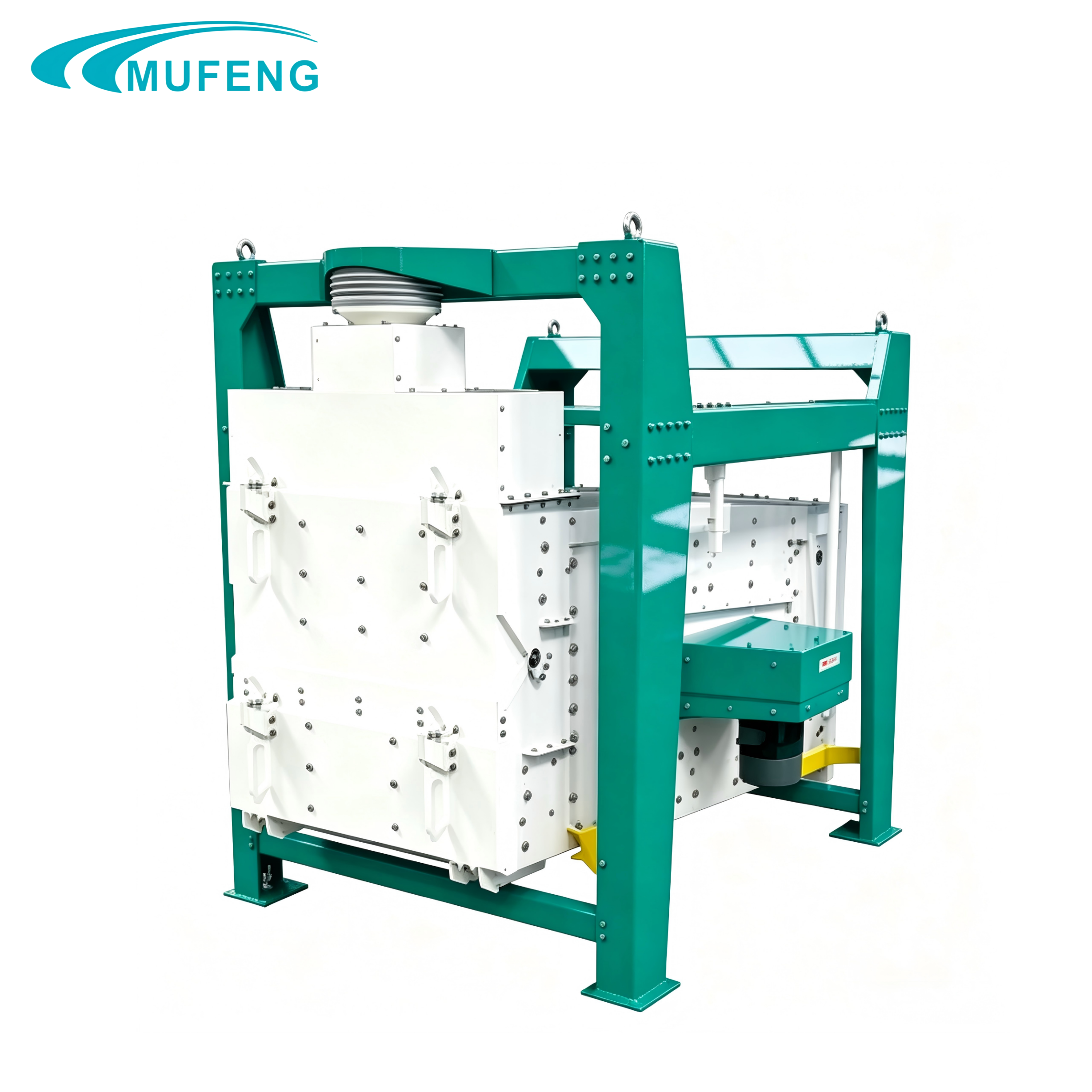

Frame: Assembled section steel construction for stable structural performance
Screen Body: Specially designed flexible hanger suspension lowers overall vibration
Drive Unit: Centered layout for steady running, low vibration and reliable performance
04 Compact Footprint & Light Weight
| Parameter | MFZS100×2_2 | MFZS100×2_3 | MFZS150×2_2 | MFZS150×2_3 |
| Capacity (t/h) – Pellets | 14~20 | 14~20 | 25~30 | 25~30 |
| Capacity (t/h) – Extruded feed | 10~15 | 10~15 | 15~22 | 15~22 |
| Capacity (t/h) – Crushed feed | 12~16 | 12~16 | 18~25 | 18~25 |
| Overall Dimensions (L×W×H, mm) | 2760×1780×2030 (Footprint is 50% smaller than conventional models) |
2930×1820×2500 (Footprint is 50% smaller than conventional models) |
2600×2280×2260 | 2930×2310×2500 |
| Screen Change Time (min) | <5 (1 person) | <5 (1 person) | <10 | <10 |
| Equipment Weight (kg) | 1940 | 2530 | 2490 | 3100 |
| Motor Power (kW) | 2.2 | 3 | 2.2 | 3 |
